Summary

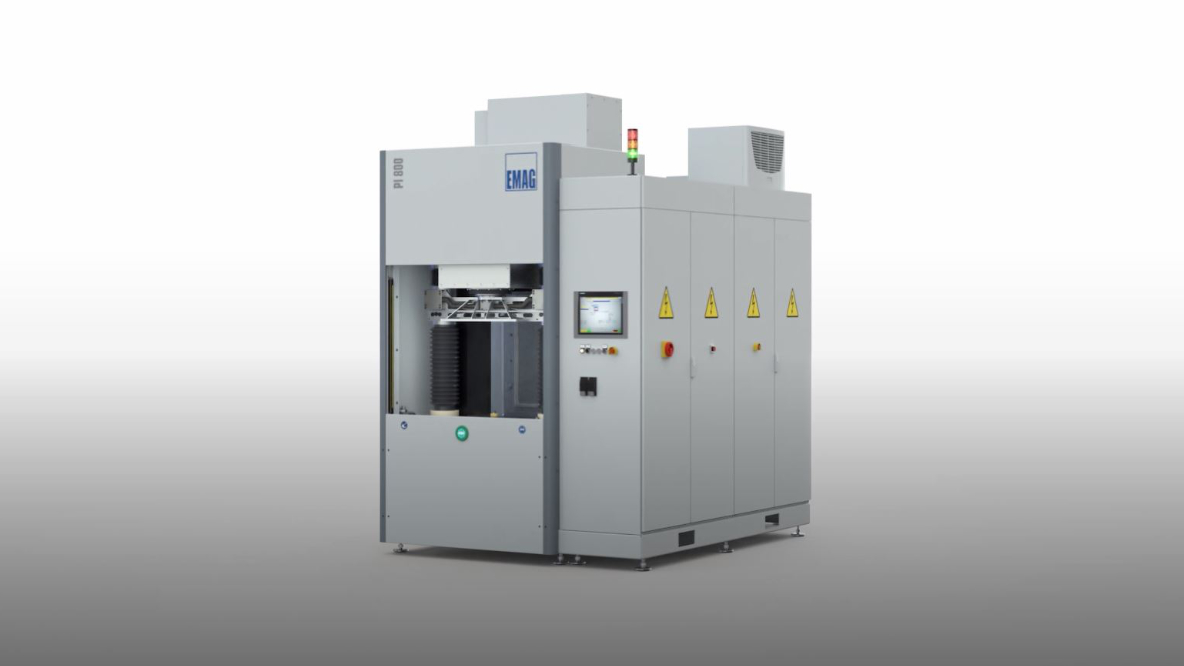

The Emag pi is a modular electrochemical machining (ECM/PECM) system designed for precision material removal via controlled electrochemical dissolution, suitable for applications such as deburring, drilling, inside profiling, and gear cutting. The system integrates multiple process modules on a compact, forklift-compatible frame and offers advanced capability for processing very hard materials and producing burr- and chip-free components. Its unique features include a vibration-damping MINERALIT polymer concrete base (for all modules except deburring) and absolute-measuring linear guides, enabling high-reproducibility machining.

Key Capabilities

• Supports ECM and PECM processes for a range of applications including deburring, drilling, inside profiling, and gear cutting
• Modular platform with selectable machining modules (PECM with oscillator, ECM countersink, ECM rifling, ECM deburring)
• Integrated electrolyte management and electrical control system on a single machine frame
• Simultaneous machining of multiple identical workpieces
• High-precision construction using MINERALIT polymer concrete base and linear guides with absolute measuring systems (except for deburring module)
• Capable of machining challenging, hard materials
