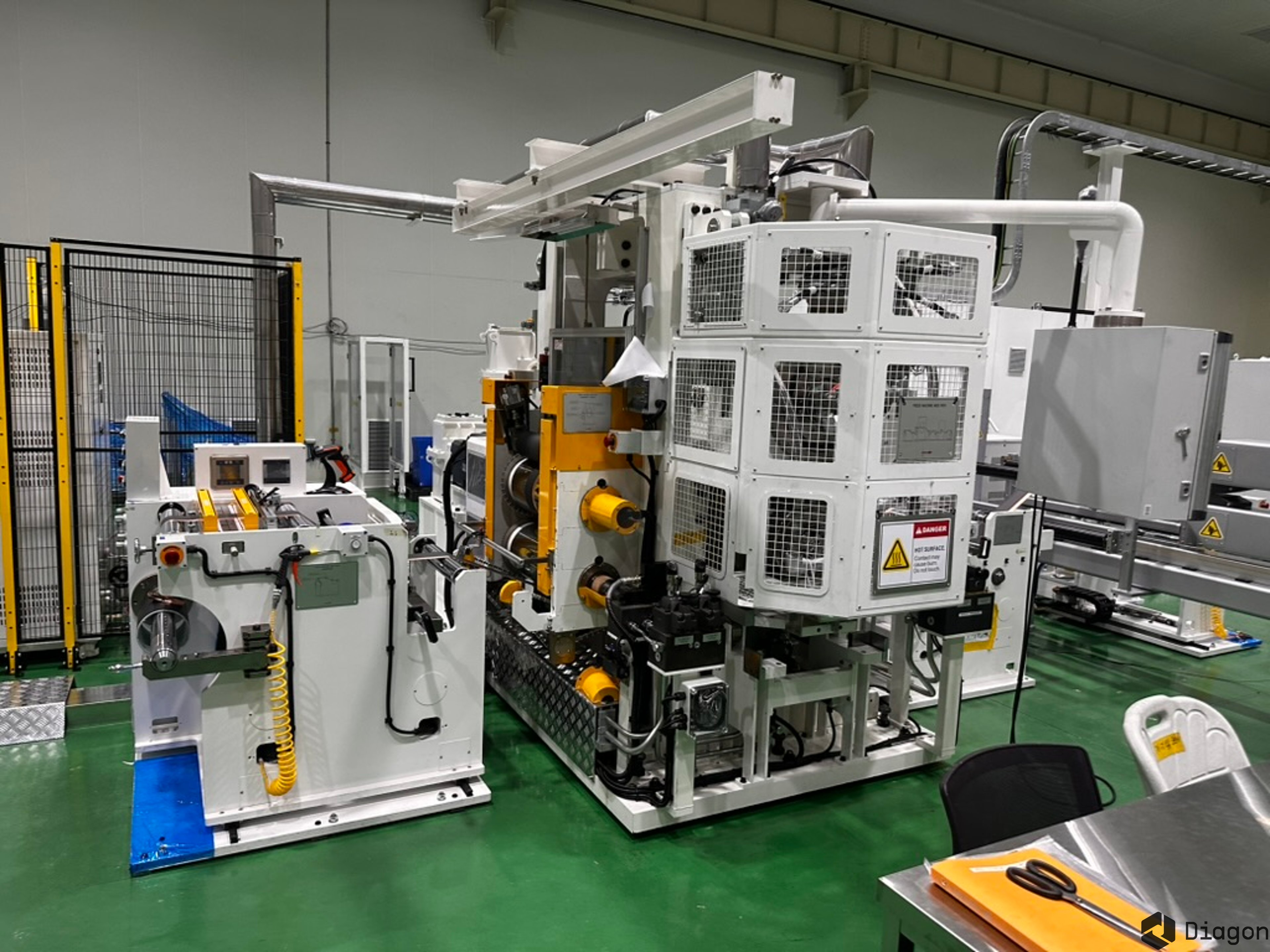

Two Electrode Calendering Systems designed for uniform electrode density control in battery R&D and pilot-scale manufacturing with integrated tension management and precision press control.

Two identical Calendering Lines available - ideal for paired anode/cathode processing or can be purchased individually. Part of a complete pilot electrode line for battery manufacturing.

Key Features

• High-precision calendering capability with 4.2 ton/cm maximum press line pressure
• Multi-unit design integrating uncoiler, press, coiler, thickness meter, and rewinder for complete process monitoring and control
• Optimized for aluminum/copper foil coated electrode materials with 450 mm maximum web width
• Dual processing modes with 15 m/min design speed and 10 m/min drive speed
• Precise gap control with 500 mm diameter press rolls for consistent electrode density
• Advanced cooling system with temperature-controlled press rolls for thermal stability
• Dedicated thickness measurement unit providing real-time feedback for precise electrode density control
• System designed for rapid deployment with UL certification and OSHA compliance

Additional Documentation (NDA Required)

• Detailed Technical Specifications
• Utility Requirements Documentation
• Installation and Commissioning Guide

Key Technical Specifications
