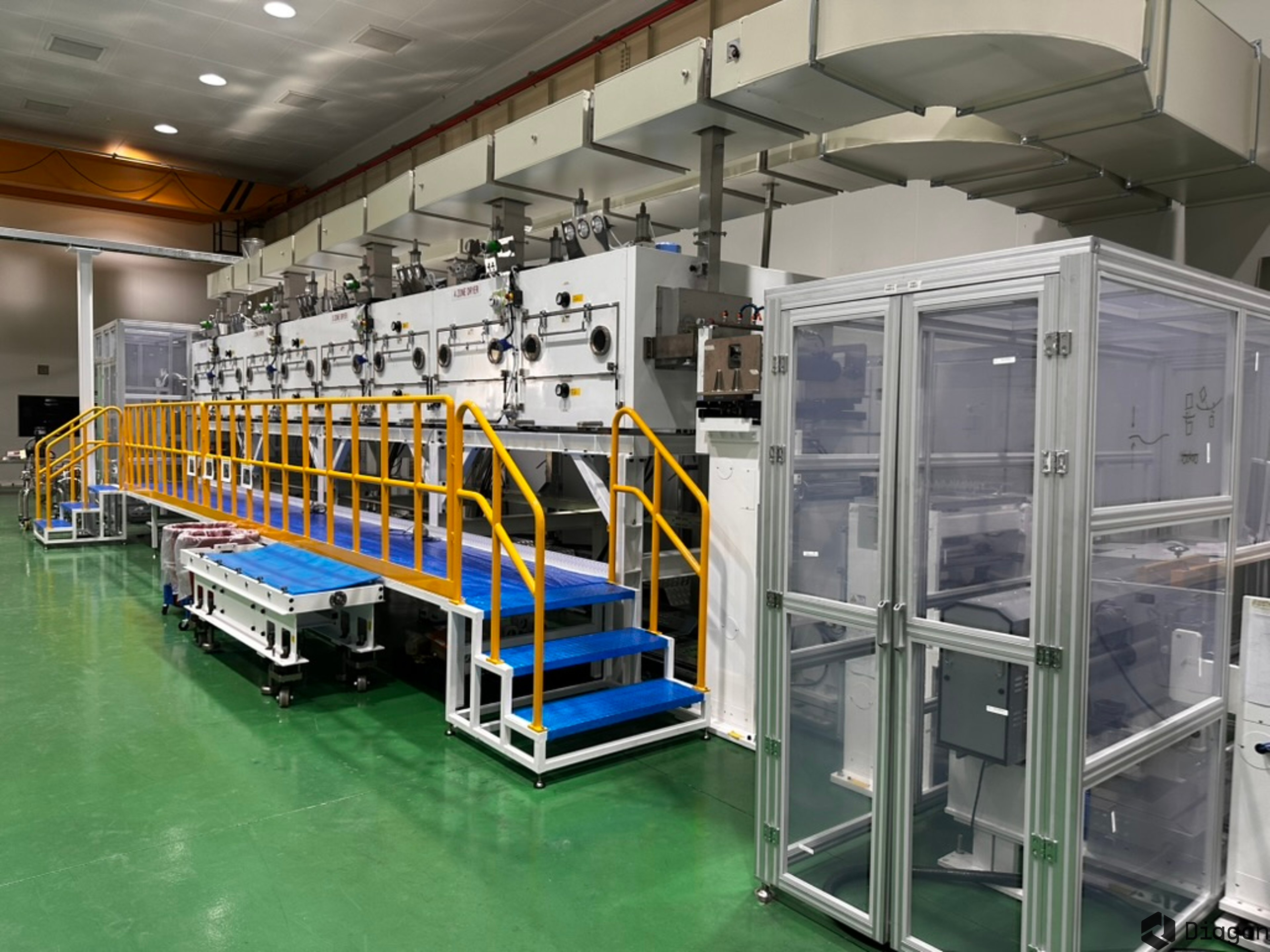

Pilot Electrode CoaterAvailable
Save
Share
PNT (People and Technology)
South Korea
Condition: New
Scale: Pilot
Type: Coating Line
Status: Ready-to-Ship
Ships From: South Korea
Product Description
This Electrode Coater system provides precision coating capabilities for lithium-ion battery anode production with multiple application methods and integrated drying for R&D and pilot-scale manufacturing.
Key Features
- Multi-method coating capability including slot die, micro gravure, and comma coating for versatile application development
- Precision web handling system with unwinder and rewinder sections for consistent material transport
- Integrated high-capacity dryer (104 kW) with temperature control for optimal solvent removal
- Electron beam processing center (EPC) for advanced anode material processing
- 350 mm coating width capacity with processing speeds up to 10 m/min
- UL certified and OSHA compliant design for accelerated implementation in US facilities
- Siemens PLC control system for robust process automation and recipe management
- Factory Acceptance Testing (FAT) successfully completed prior to storage
System is designed for seamless integration into pilot production environments with comprehensive documentation available for qualified buyers.
Additional Documentation (NDA Required)
- Detailed Technical Specifications
- Room Requirements and CAD Drawings
- Installation and Commissioning Guidelines
Key Technical Specifications
Maximum Web Width | 350 mm | |
Processing Speed | 0 - 10 m/min | |
Coating Methods | Slot Die, Micro Gravure, Comma Coating, Knife Coating | |
Dryer Capacity | 104 kW | |
Dryer Motor | 3.7 kW, 480V | |
Main Electrical | 220V, 3Φ, 3kW (15A) | |
Secondary Electrical | 480V, 60Hz | |
Machine Dimensions | Approx. 18.65 m × 3.73 m | |
Unwinder/Rewinder Motor | 0.75 kW, 480V, 60Hz | |
Micro Gravure Pump | 700 W | |
Slot Die Pump | 700 W |
Output Battery Specs
Form Factors
Prismatic
Pouch
Cylindrical
Chemical Composition
NCA: Nickel Cobalt Aluminum
NMC/NCM: Nickel Manganese Cobalt
LFP: Lithium Iron Phosphate
Machine Requirements
Electrical Standards
UL: Underwriters Laboratories (U.S. safety certification)
Control Standards
Siemens : German control standard
