4-Lane Pilot Electrode Slitter Available
Save
Share
LaON Technology
South Korea
Condition: New
Scale: Pilot
Type: Slitting Machine
Status: Ready-to-Ship
Ships From: South Korea
Product Description

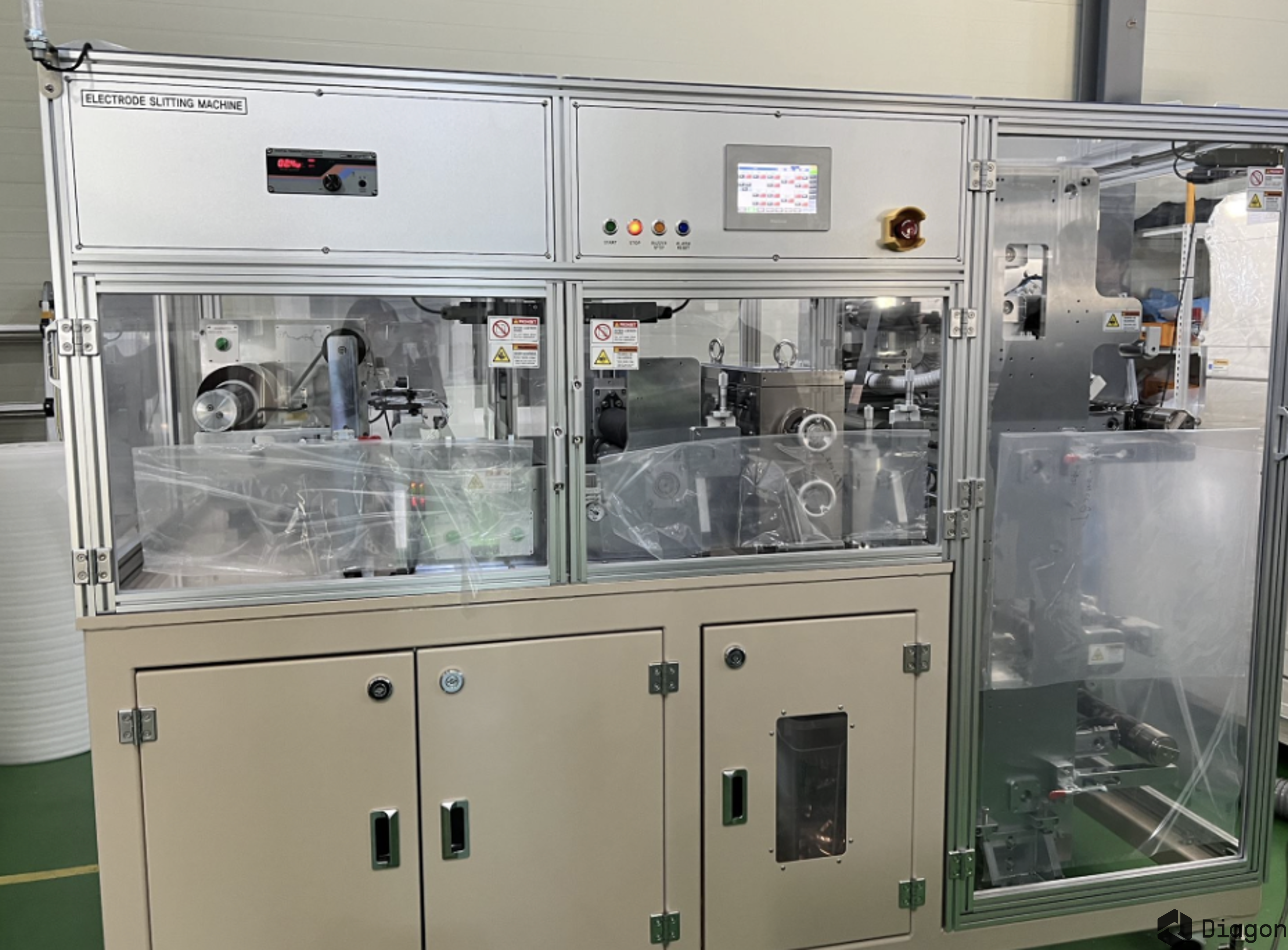

Electrode Slitter Machine provides four-lane wheel-type knife cutting with EPC control for electrode width conversion and material handling.
Key Features
- Four-lane carbide knife cutting with ±0.1mm accuracy and <20μm burr specification
- Wheel-type knife system with AC reversible motor drive and fixed block configuration
- EPC system with speed control motor for electrode positioning and tracking

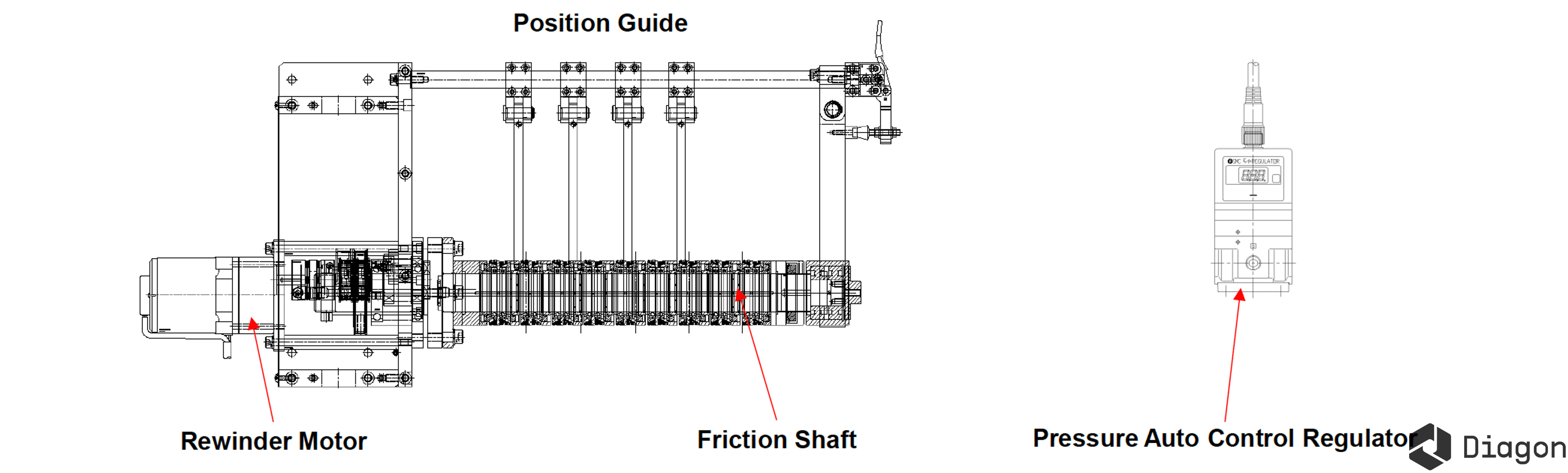

- Dual friction shaft rewinders with automated pressure regulation and position guides
- Photo sensor monitoring for foil break detection across all four lanes
- Mitsubishi PLC control with Proface 7" touchscreen interface
- 350mm maximum foil width with 5 m/min processing speed capability
System includes integrated unwinder with 3" air shaft and automated tension control.
Additional Documentation (NDA Required)
- Detailed Process Specifications
Key Technical Specifications
| Maximum Foil Width | 350 mm | |
| Machine Speed | 5 m/min maximum | |
| Slitting Lanes | 4 lanes | |
| Slitting Accuracy | ±0.1 mm | |
| Burr Specification | <20 μm | |
| Position Accuracy | ±0.1 mm | |
| Maximum Spool Size | Ø300 mm | |
| Knife Material | Carbide | |
| Knife Configuration | Fixed Block Type | |
| Tension Control | Powder clutch & dancer roll | |
| Unwinder Shaft | 3" air shaft | |
| Rewinder Shafts | 3" friction shaft (2 sets) |
Output Battery Specs
Form Factors
Prismatic
Pouch
Cylindrical
Chemical Composition
LFP: Lithium Iron Phosphate
NCA: Nickel Cobalt Aluminum
NMC/NCM: Nickel Manganese Cobalt
Machine Requirements
Electrical Standards
UL: Underwriters Laboratories (U.S. safety certification)
Control Standards
Mitsubishi
