The Neware BTS-5V30A is a high-precision battery testing system designed for comprehensive evaluation of battery cells with driving cycle simulation capabilities, ideal for research, development, and quality control applications in battery manufacturing and energy storage industries.

Key Features

• Four-range current measurement system (0.01A-2A, 2A-6A, 6A-20A, 20A-30A) for versatile testing applications
• High-precision voltage and current measurements with ±0.05% accuracy and ±0.1% stability
• Multiple operation modes including constant current, constant voltage, constant power, pulse, and driving cycle simulation
• 16-bit AD/DA resolution with high input impedance (≥1MΩ) for accurate measurements
• Fast response with 10ms rise time and 100Hz data acquisition frequency
• Comprehensive auxiliary testing capabilities including thermocouple temperature monitoring (-200°C to 260°C)
• Advanced cycling capabilities with up to 65,535 cycles, 254 steps per cycle, and three levels of nested loops

Technical Specifications

• Voltage Range: 25mV to 5V with ±0.05% accuracy
• Current Range: Four ranges from 0.01A to 30A with ±0.05% accuracy
• Output Power: 150W per channel
• Data Acquisition: 100Hz frequency with customizable intervals (time: 10ms, voltage: 10mV)
• Charge Modes: CCC, CVC, CC & CVC, CPC, Pulse, Simulation
• Discharge Modes: CCD, CVD, CPD, CRD
• Pulse Mode: Minimum pulse width 500ms with automated charge/discharge switching
• Simulation Capability: Supports driving cycle simulation with up to 100,000 line files
• Temperature Measurement: -200°C to 260°C with ±1°C accuracy
• Communication: TCP/IP protocol with Ethernet interface
• Data Management: MySQL database with export to Excel, TXT, and Graph formats

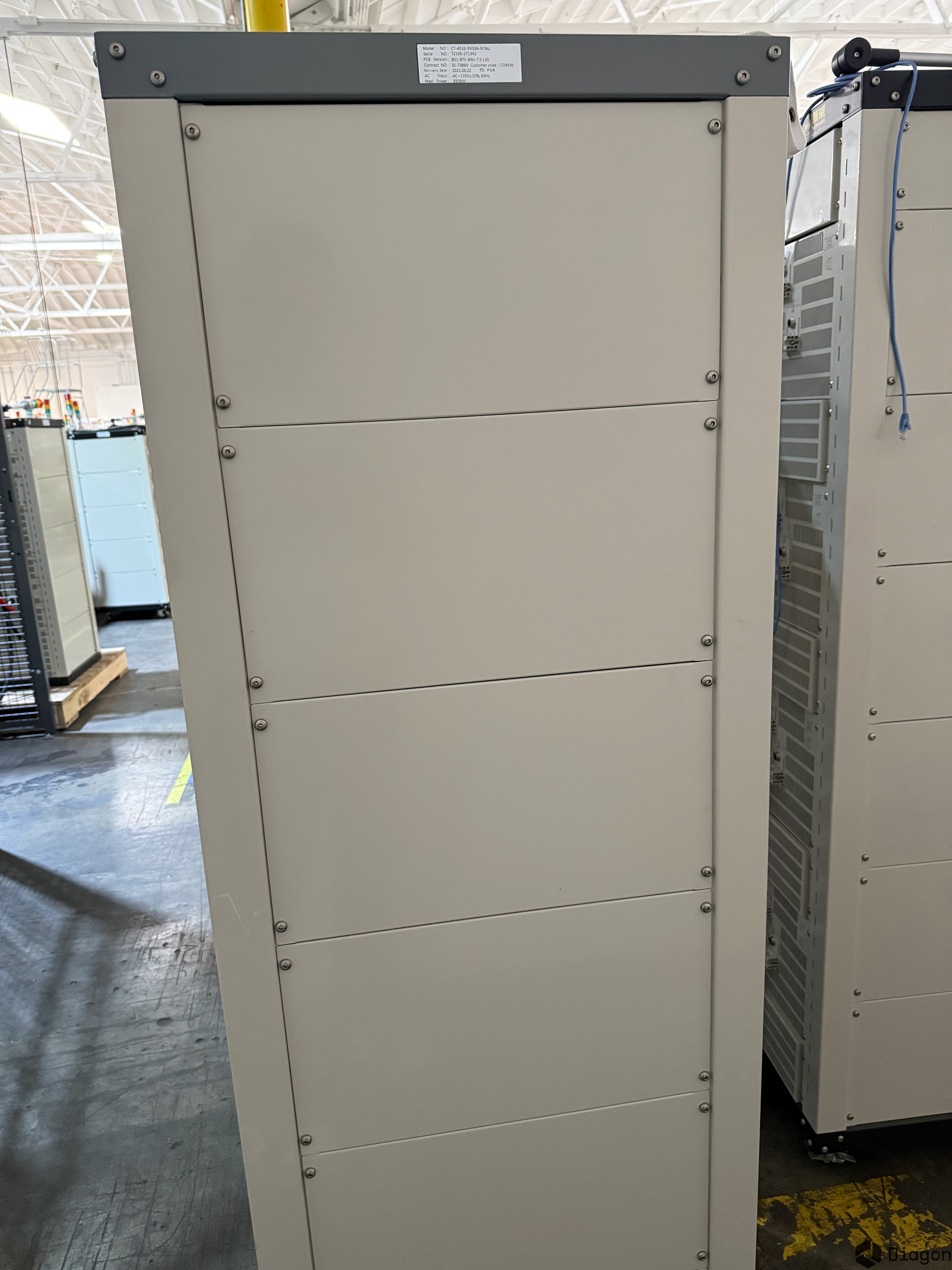

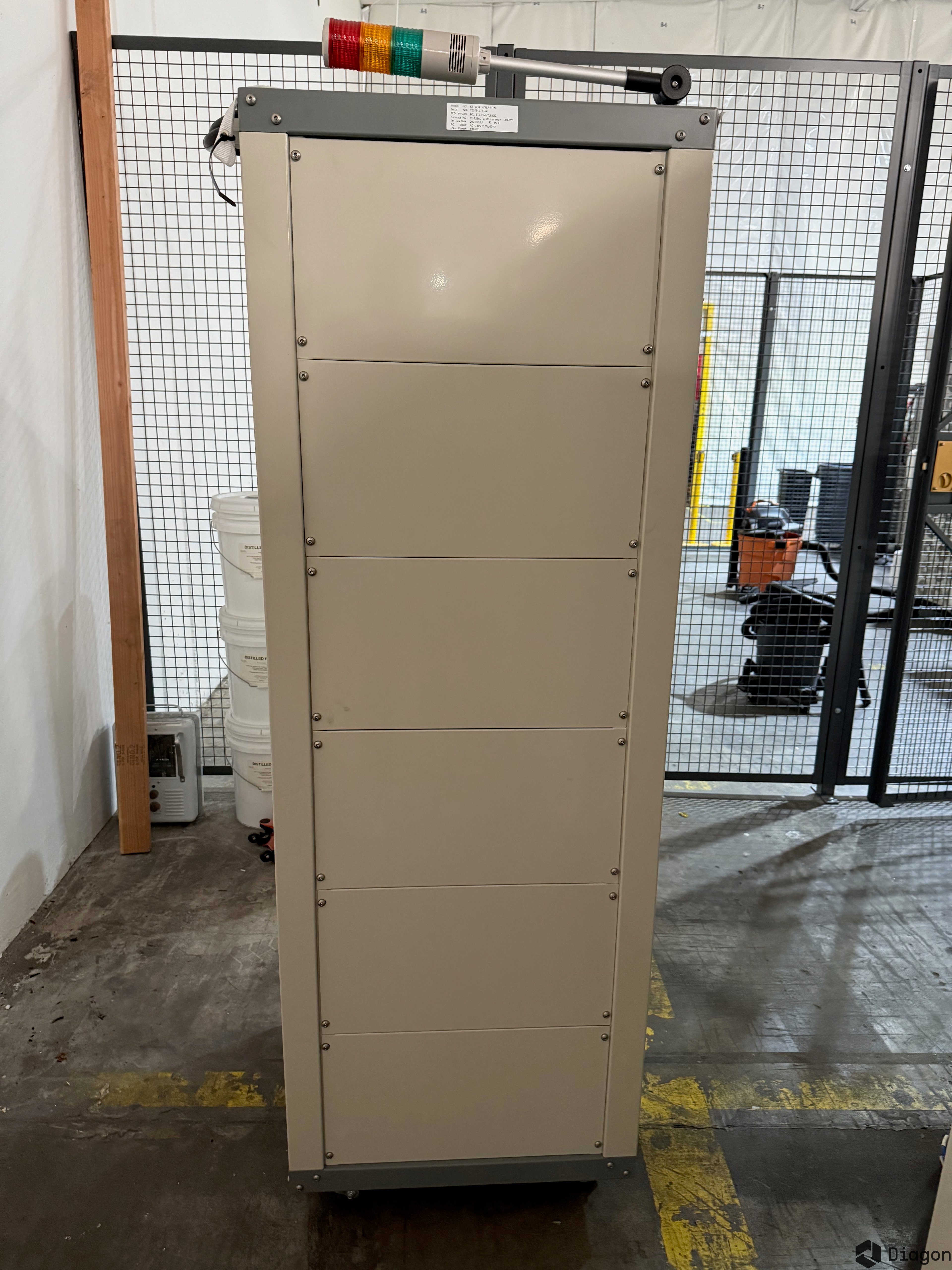

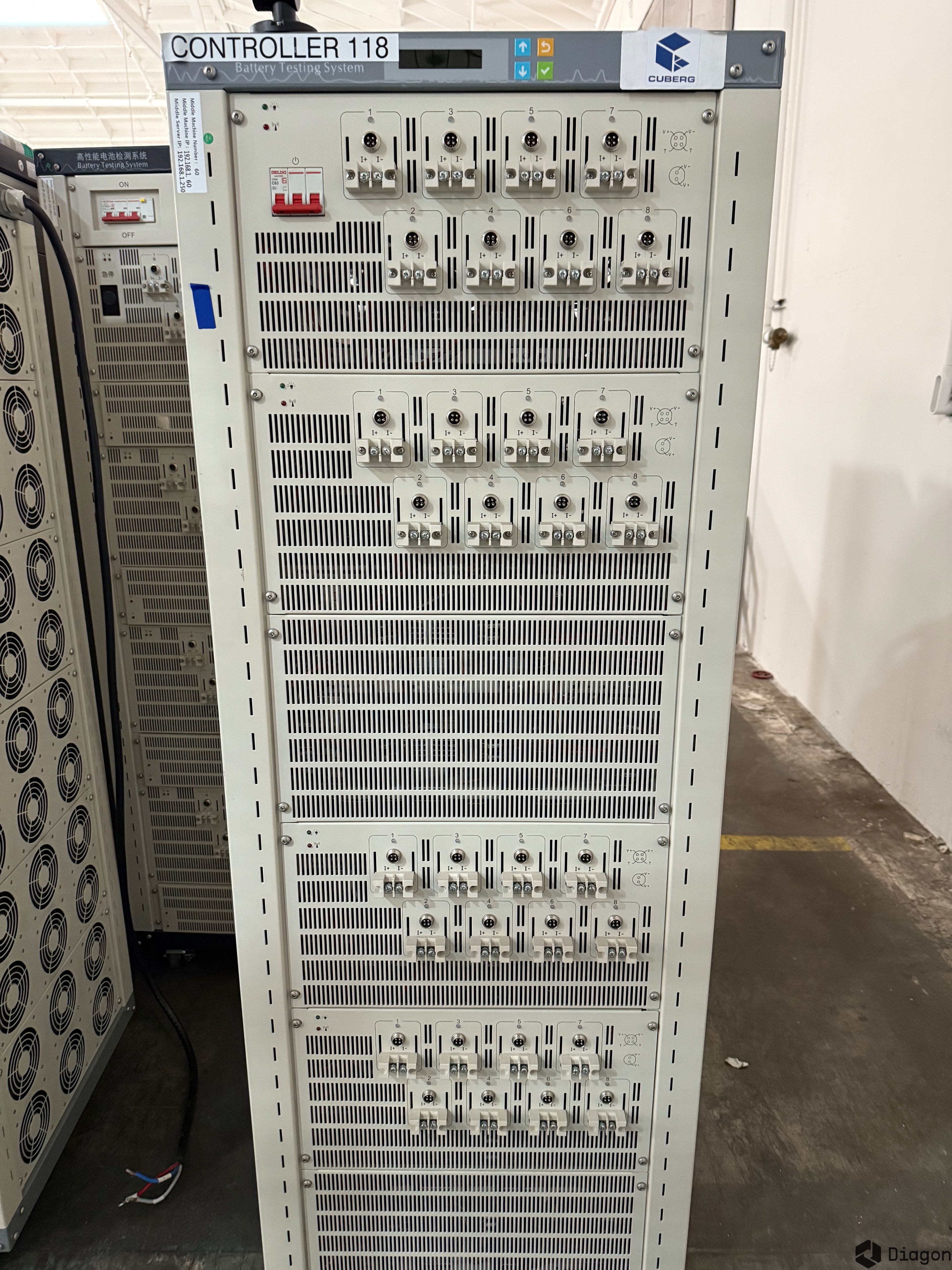

System includes 32 independent channels per cabinet with 4-wire connection for precise measurements, comprehensive safety features including power-off data protection, and user-defined safety tolerances. The system operates optimally in temperatures from 0°C to 40°C with humidity ≤70% RH.
