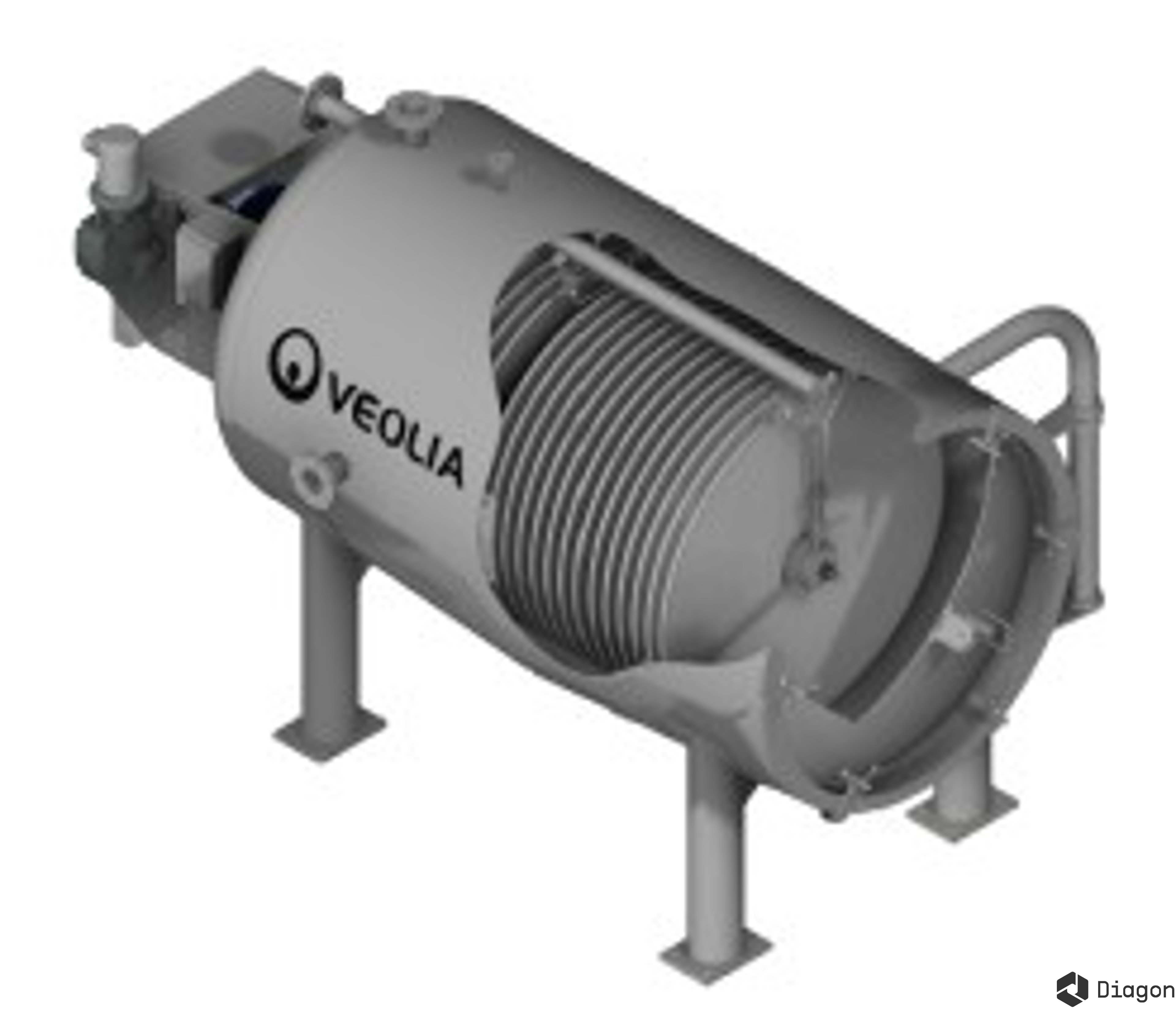

The Auto-Jet® self-cleaning pressure leaf filter system provides precision solid-liquid separation through a patented filtration mechanism designed for severe industrial applications requiring particle removal down to 1-micron.

Key Features

• Advanced sluicing system with specialized knife-like jets that thoroughly clean filter surfaces within 3 minutes using minimal cleaning liquid
• Quick-access Auto-Lok door design enables complete leaf removal in under 30 minutes by a single operator
• Uniform filter leaf construction ensures consistent precoating, filtration performance, and cake buildup across the entire filtration area
• Available in sizes from 50-2000 sq. ft. with customizable tank materials including stainless steel, Hastelloy™, and rubber/plastic-lined carbon steel
• Engineered inlet and adjustable baffling system promotes optimal flow distribution and uniform cake formation
• Choice of wet or dry cake discharge configurations to match process requirements
• Removable sluice manifold allows maintenance access without leaf removal

Key Technical Specifications
