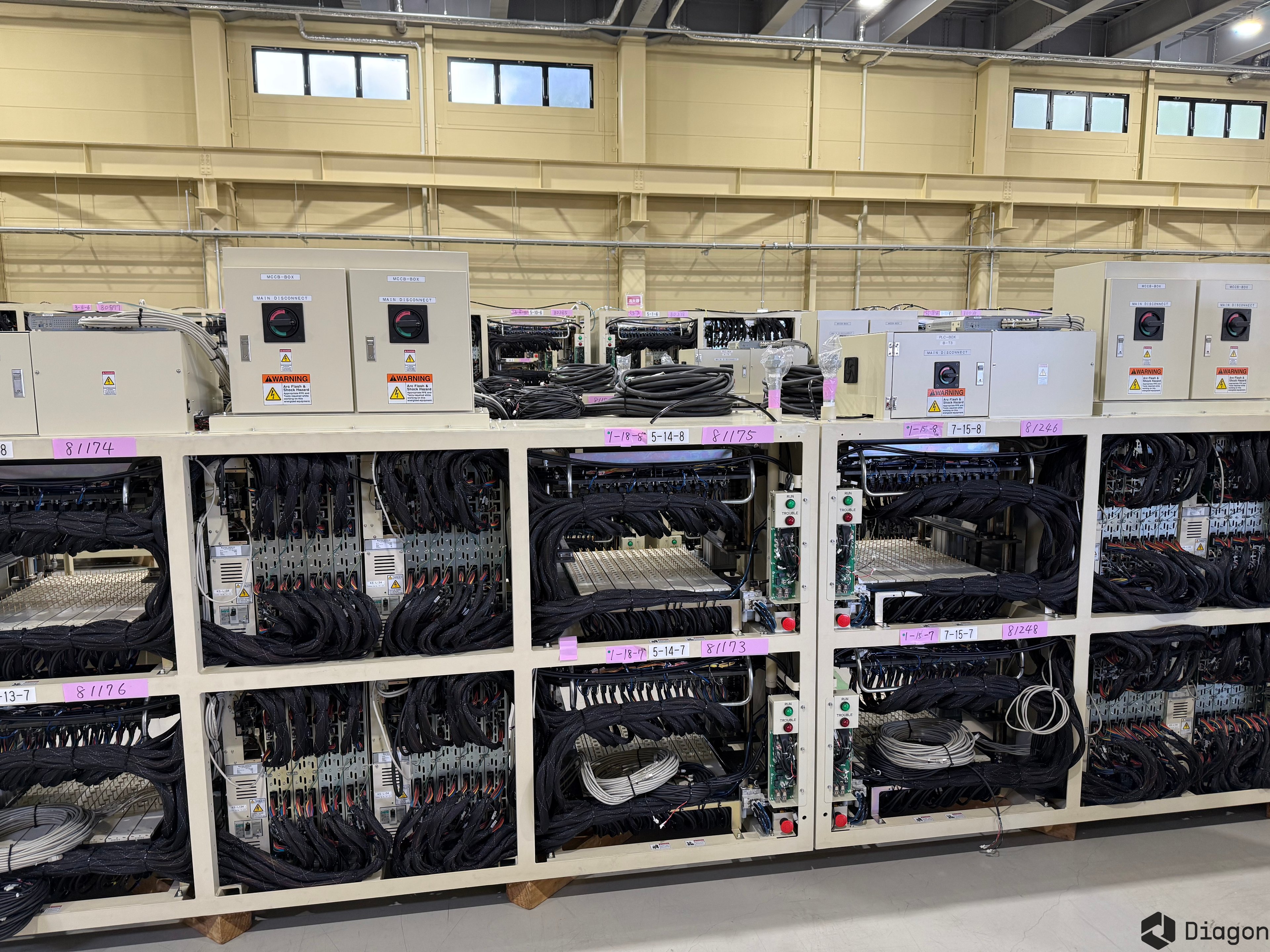

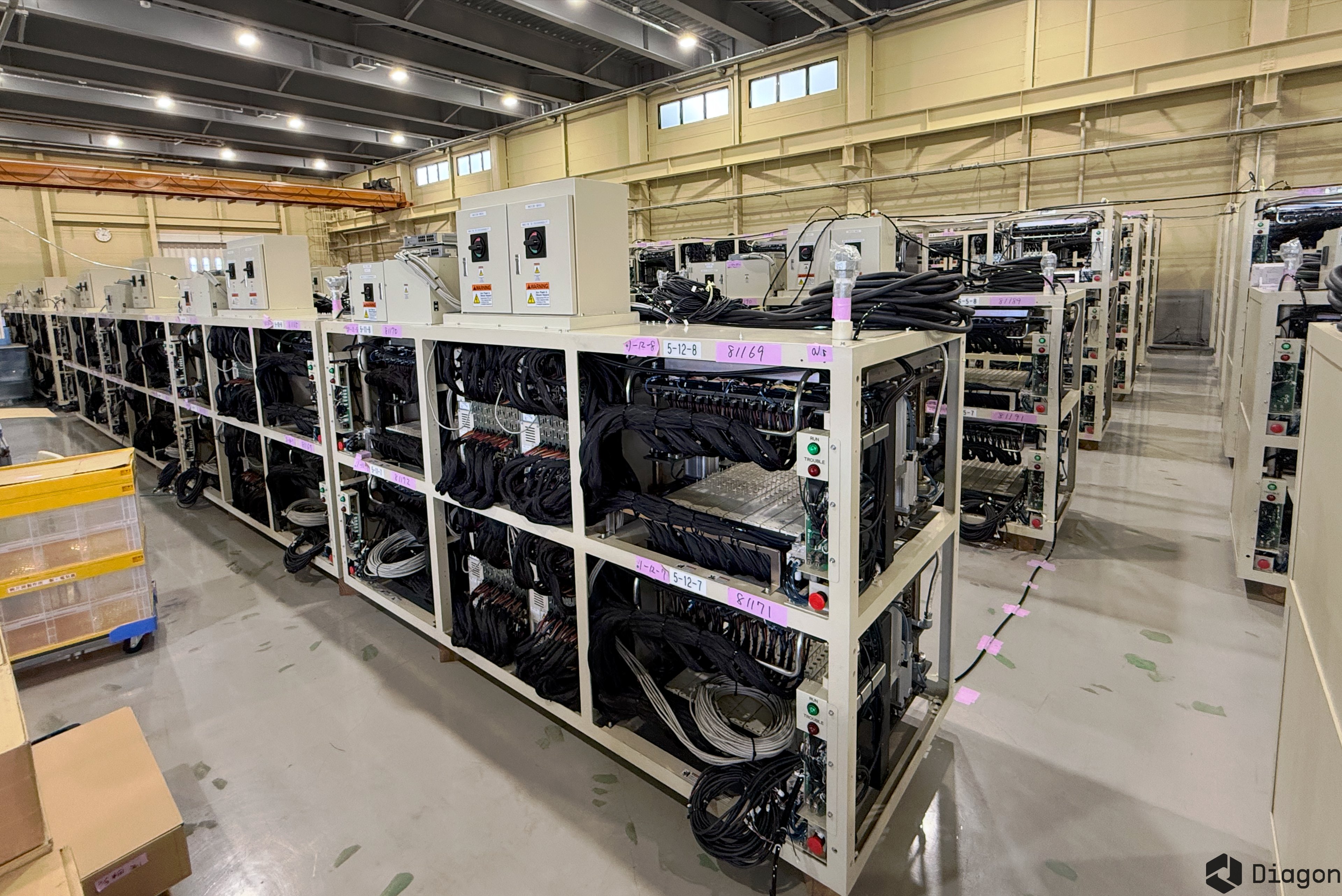

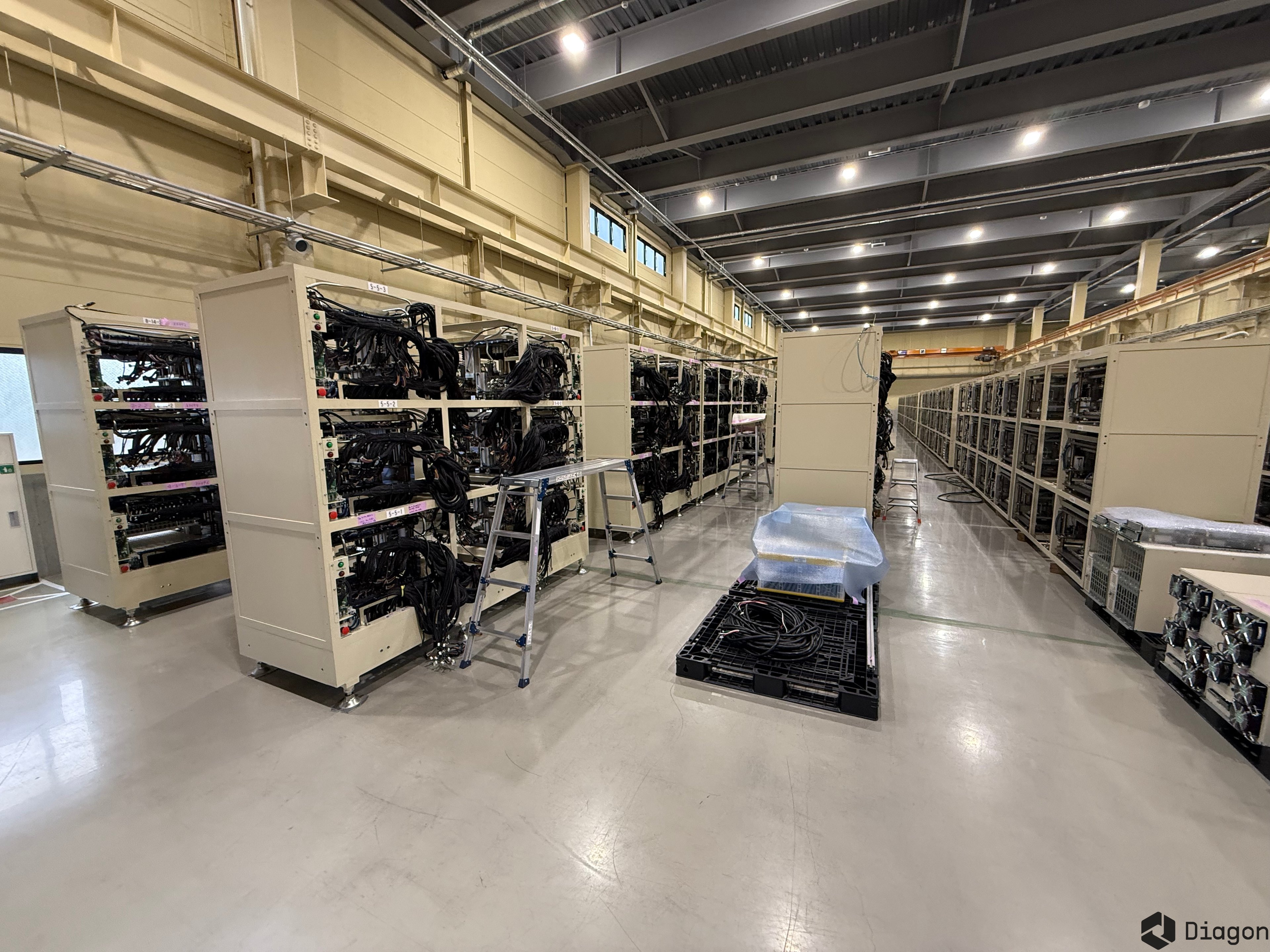

The rechargeable battery inspection system comprises 40 complete sets of formation chambers, power supply units, and stacker cranes for high-volume charge-discharge testing of cells after assembly, with an annual production capacity of 96.8 M cells, assuming 336-day operational year.

Key Features

• Equipment set supports ~1.7 GWh annual output, assuming 338 production days, nominal capacity of 18 Wh/cell
• Compatible with 2170 format cells, adaptable to 18650 cell designs
• Production capacity of 200 PPM (96.8 M cells per year)

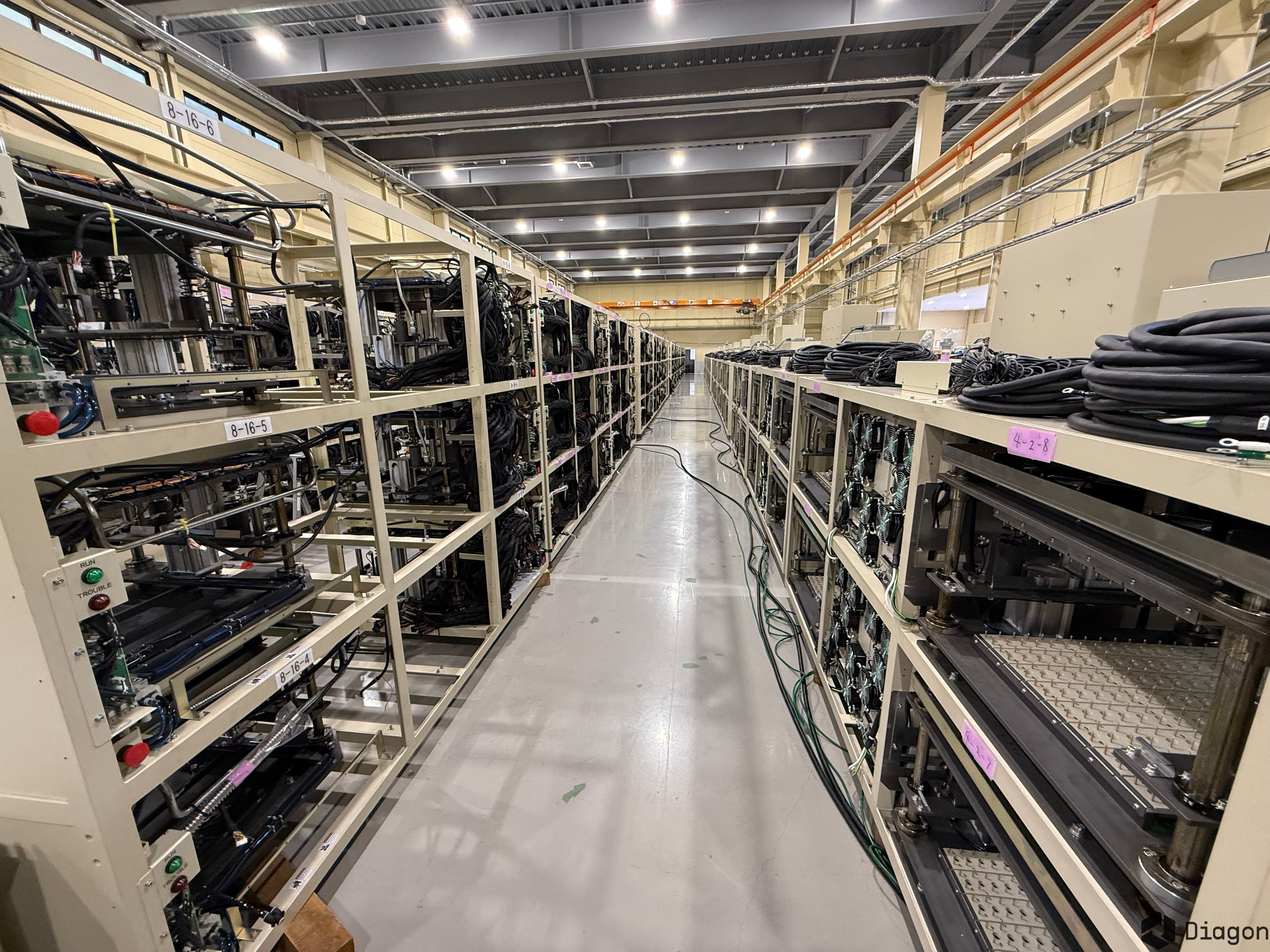

• Modular design allowing vertical stacking of units up to 8 feet tall for efficient space utilization

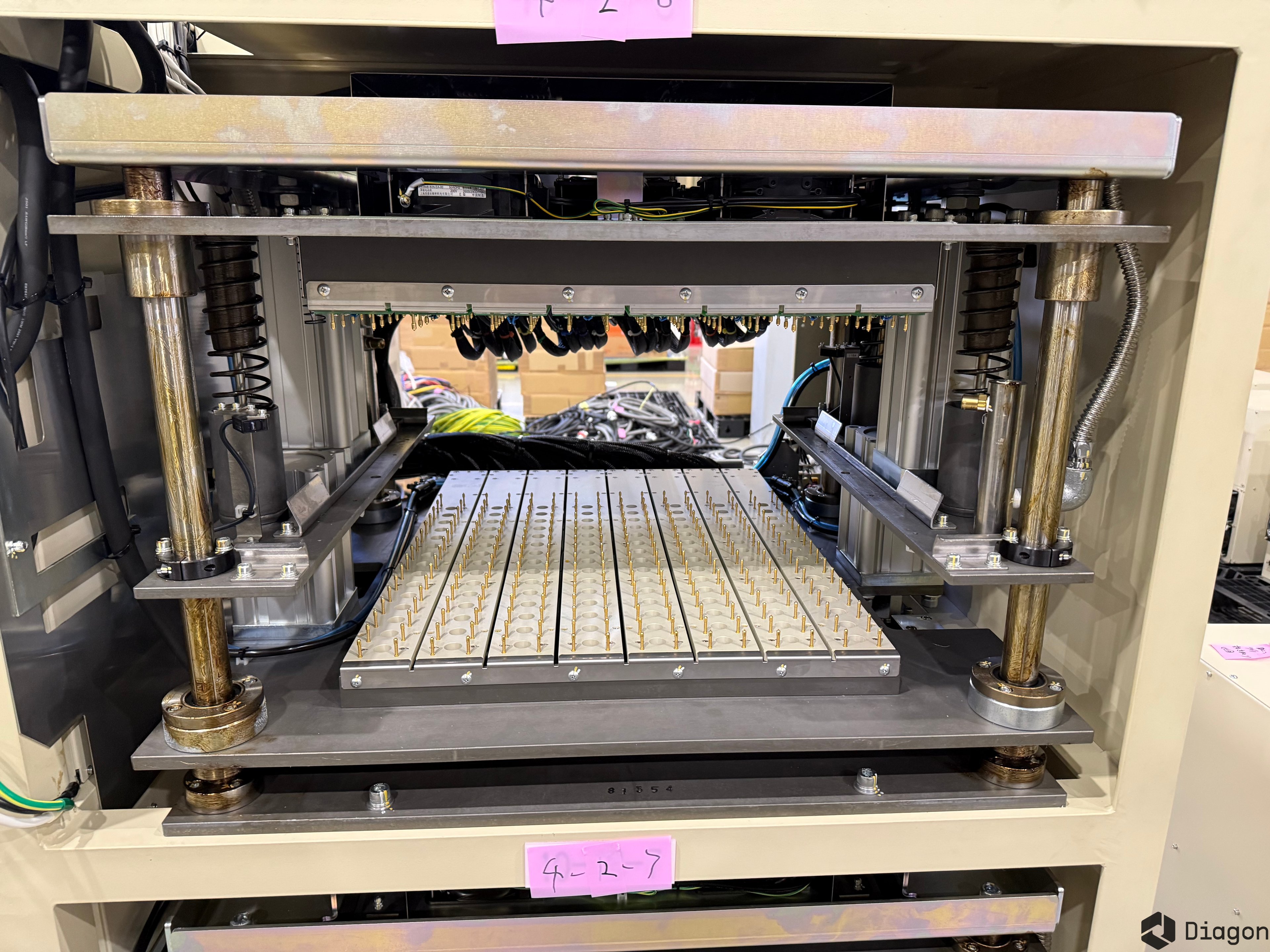

• Includes independently controlled testing chambers with process monitoring and verification
• Includes automated material handling with stacker cranes that transport cell trays between upstream processes, mechanical testing sections, and downstream operations

Additional Documentation (NDA Required)

• Maintenance Manual, Operations Manual
• Electrical/Pneumatic/Mechanical Diagrams, 2D Drawings
• Layout Dimensions, Floor Loading Requirements

Key Technical Specifications
