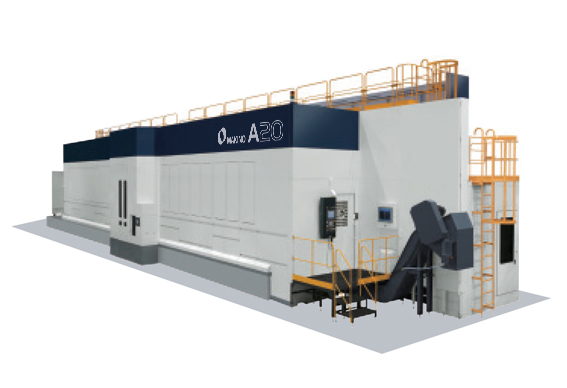

Makino MAG A12 MAG A20.H | 5-Axis Horizontal Machining Center
Available

Save

Makino

To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA

Product Description

Summary

The Makino MAG A12 MAG A20.H is a 5-axis horizontal machining center designed for high-productivity milling of large, complex aluminum monolithic parts, particularly in aerospace applications. Its 33,000 rpm spindle and high-power capability deliver rapid metal removal, with integrated 5-axis kinematics for precision contoured machining. The machine supports automated pallet transfer and extended unattended operation when integrated with Makino's MMC system.

Key Capabilities

  • 5-axis simultaneous machining for complex geometries and five-face accessibility
  • Up to 33,000 rpm spindle with 130 kW output for high metal-removal rates
  • Large work envelope suitable for parts up to 20,000 mm length and 10,500 kg
  • Support for automated pallet transfer and storage systems for unattended operation
  • Rapid traverse and cutting feedrate up to 65,000 mm/min
  • Automatic tool changer with 120-tool capacity

Key Specifications

Parameter Value Unit
Maximum Workpiece Size 20,000 x 2,300 x 500 mm
Maximum Payload 10,500 kg
Spindle Speed 33,000 rpm
X Travel 20,200 mm
Y Travel 2,500 mm
Z Travel 650 mm
A-Axis Range -110 ~ +110 degrees
C-Axis Range 360 degrees
Rapid Traverse 65,000 mm/min
Tool Change Capacity 120 tools
