Citizen Machinery Miyano BNJ-42SY6 | Twin-Spindle, Dual-Turret CNC Turning Center with Y-Axis MillingAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

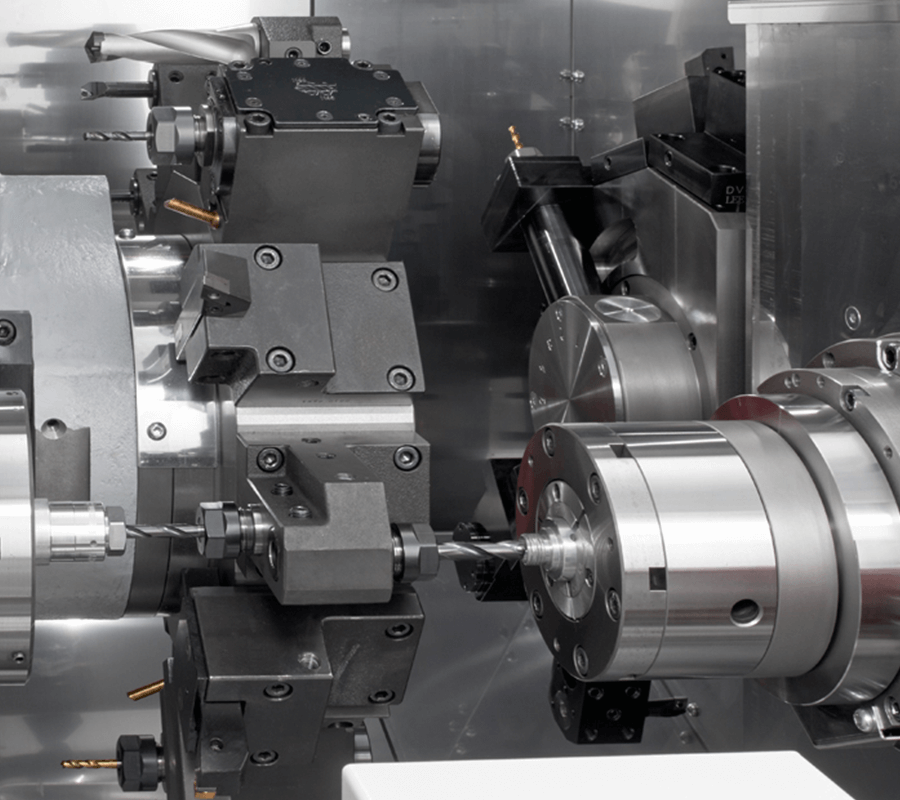

The Miyano BNJ-42SY6 is a twin-spindle, dual-turret CNC turning center designed for complex multitasking, including simultaneous main and sub-spindle machining. It enables advanced part geometries through Y-axis milling and eccentric machining with specialized collet capability. This configuration supports efficient production of large-diameter screws, uneven parts, and eccentric components not feasible on conventional lathes.
Key Capabilities
- Simultaneous machining with main spindle and separate sub-spindle movement
- Eccentric collet system for crank and eccentric part processing
- Y-axis on main turret for side milling and complex profiles
- Dual turrets supporting up to 12 and 8 tools respectively
- Revolving tools for milling, drilling, and tapping operations
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Standard Turning Length (SP1/SP2) | 100 | mm |
| Standard Machining Diameter (SP1/SP2) | 42/42 | mm Dia. |
| Main Spindle Speed Range | 60 - 6,000 | min-1 |
| Sub Spindle Speed Range | 50 - 5,000 | min-1 |
| Main Turret Capacity | 12 | stations |
| Sub Turret Capacity | 8 | stations |
| Y-Axis Stroke | ±40 | mm |
| Max. Drilling Diameter (HD1/HD2) | 13/10 | mm Dia. |
| Max. Tapping Diameter (HD1/HD2) | M12×1.75 / M10×1.0 | |
| Machine Weight | 5,300 | kg |
| Floor Space | 2,840×1,560 | mm |
