Makino V90S | 5-axis Vertical Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

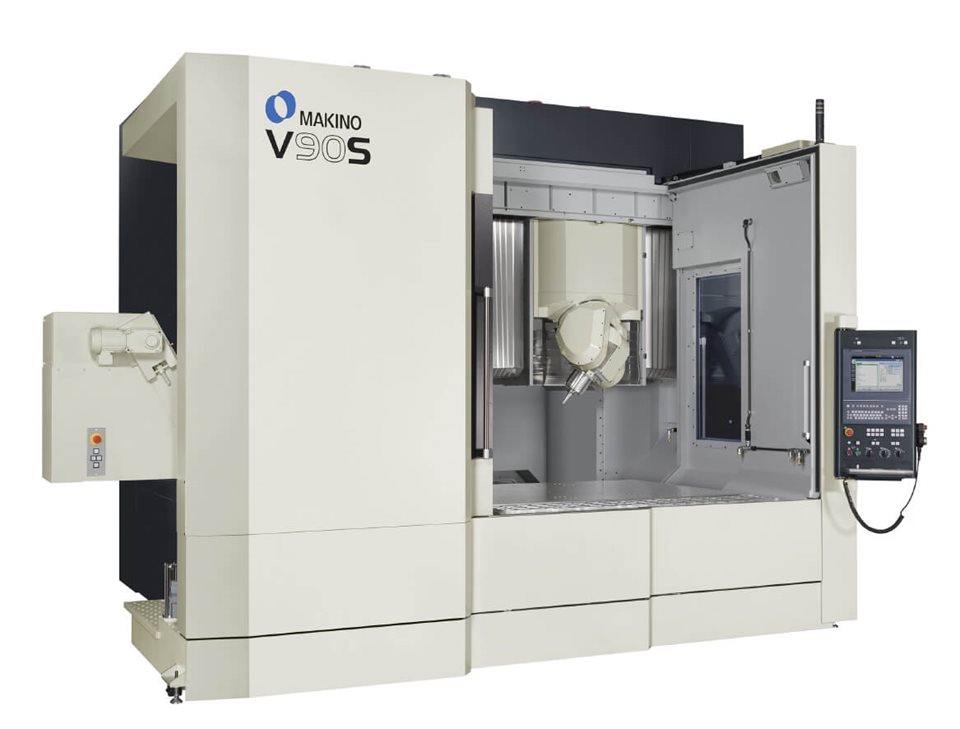

The Makino V90S is a 5-axis vertical machining center designed for finish machining of large, complex dies and molds. Its continuous 5-axis capability with a tilting/rotating spindle allows precise tool positioning for optimal contact, supporting stringent accuracy and superior surface finishes. The Makino Professional 6 control with Super Geometric Intelligence (SGI.5) enables efficient, high-speed contouring for intricate 3-D part geometries.
Key Capabilities
- 5-axis simultaneous machining via tilting/rotating spindle
- Designed for machining large die and mold components with complex 3D contours
- Capable of high-speed finishing operations on multifaceted surfaces
- Supports tight tolerances and fine finishes
- Advanced CNC with graphical interface and proprietary servo control
- Automatic tool changer with up to 120-tool option
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum workpiece size | 2,200 x 1,500 x 700 | mm |
| Maximum payload | 5,000 | kg |
| Axis travels (X/Y/Z) | 2,000 / 1,300 / 800 | mm |
| A-axis / C-axis travel | 60° (-30° to +30°) / 120° (-60° to +60°) | degrees |
| Spindle speed | 20,000 | rpm |
| Rapid traverse | 58,000 | mm/min |
| Cutting feedrate | 40,000 | mm/min |
| ATC capacity | 40 (120 opt) | tools |
