Summary

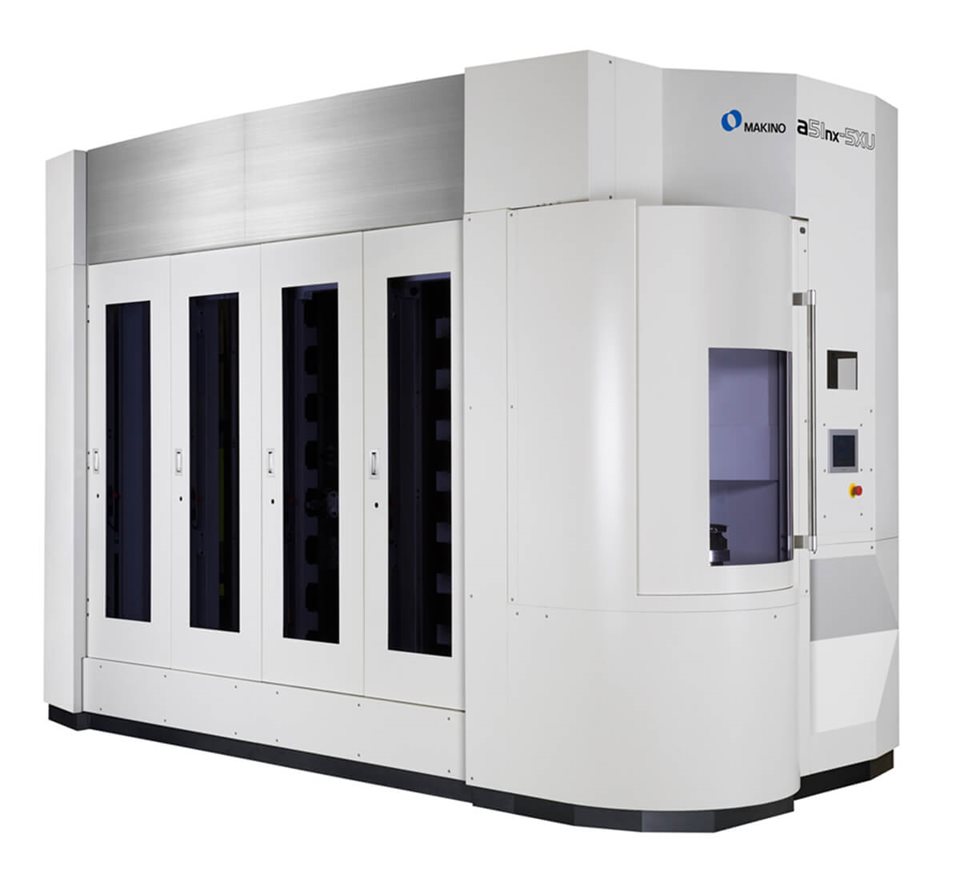

The Makino a51nx 5XU is a 5-axis horizontal machining center designed for complex multi-face part production with integrated workpiece automation. Its horizontal orientation with a work-pallet magazine enables unattended, continuous manufacturing for applications in aerospace, medical, and prototype parts. A rigid casting structure and direct-drive rotary axes provide precision and reduce stack-up errors common to table-on-table 5-axis designs.

Key Capabilities

• 5-axis simultaneous machining via linear X, Y, Z axes and direct-drive rotary B (270°) and C (360°) axes
• Integrated work-pallet magazine with automatic work changer for continuous unattended operation
• Configurable workpiece storage: up to 22 workpieces (300 mm Ø x 300 mm) or 58 smaller workpieces (200 mm Ø x 300 mm)
• Offline workpiece setup station to maximize spindle utilization
• Chip control optimized for aerospace and medical material machining via horizontal orientation
• Suitable for both high variety/low volume and high volume applications
• Capable of manufacturing rotating cutting tools, medical, aerospace, and prototype components
