Summary

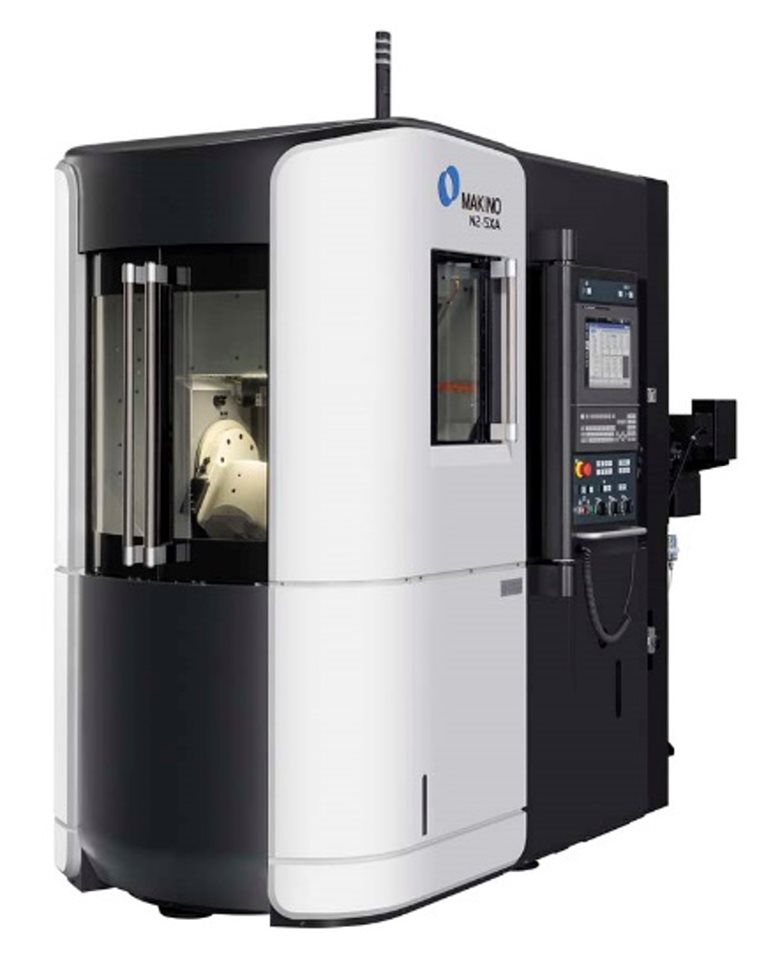

The Makino N2 5XA is a 5-axis horizontal machining center engineered for high-productivity machining of complex, near-net-shape components. It is targeted toward medical and aerospace applications such as orthopedic implants, surgical devices, and aero-engine parts, emphasizing rapid, precise, multi-sided machining on small workpieces. Key differentiators include a direct-drive twin rotary trunnion, high-speed HSK-A40 spindle, and advanced chip and coolant management in a compact footprint.

Key Capabilities

• Simultaneous 5-axis machining with direct-drive rotary trunnion
• High-speed 20,000 rpm HSK-A40 spindle suitable for small, intricate parts
• Through-spindle coolant system (320 psi) with dual-stage filtration
• High-acceleration (1.4G) Z-axis and rapid traverse for increased throughput
• Automated chip management with permanent media drum filter and cyclonic coolant filter
• Integrated Makino Pro6 control with SGI for contour accuracy on complex geometries
• Capacity for 36 tools in the automatic tool changer
• Supports medical and aerospace small-part production (e.g., orthopedic implants, aero-engine components)
