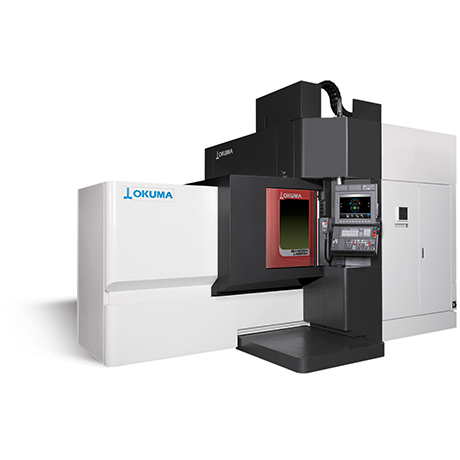

Okuma MU-8000V LASER EX | 5-Axis Laser Metal Deposition Hybrid Machining CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Okuma MU-8000V LASER EX integrates 5-axis CNC machining with laser metal deposition (LMD), enabling both additive and subtractive processing within a single setup. Its core function is precision hybrid manufacturing, supporting complex part fabrication, repair, and multi-material layering with variable laser spot diameters.
Key Capabilities
- Combines laser metal deposition (LMD) and multi-axis CNC milling
- Supports 3D fabrication, cladding, and in-process part repair
- Variable laser spot size control (Ø0.4 to 8.5 mm) for tuning additive resolution
- Accommodates diverse part sizes with rotary table and extended axis travels
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X Travel | 36.42 | in |
| Y Travel | 34.25 | in |
| Z Travel | 23.62 | in |
| Table Size | Ø31.50 | in |
| Max Work Size | Ø39.37 x H21.65 | in |
| Spindle Speed | 50 to 8,000 | min⁻¹ |
| Spindle Motor Power | 15/10 | hp |
| Magazine Capacity | 32 | |
| Laser Spot Diameter Range | 0.4–8.5 | mm |
