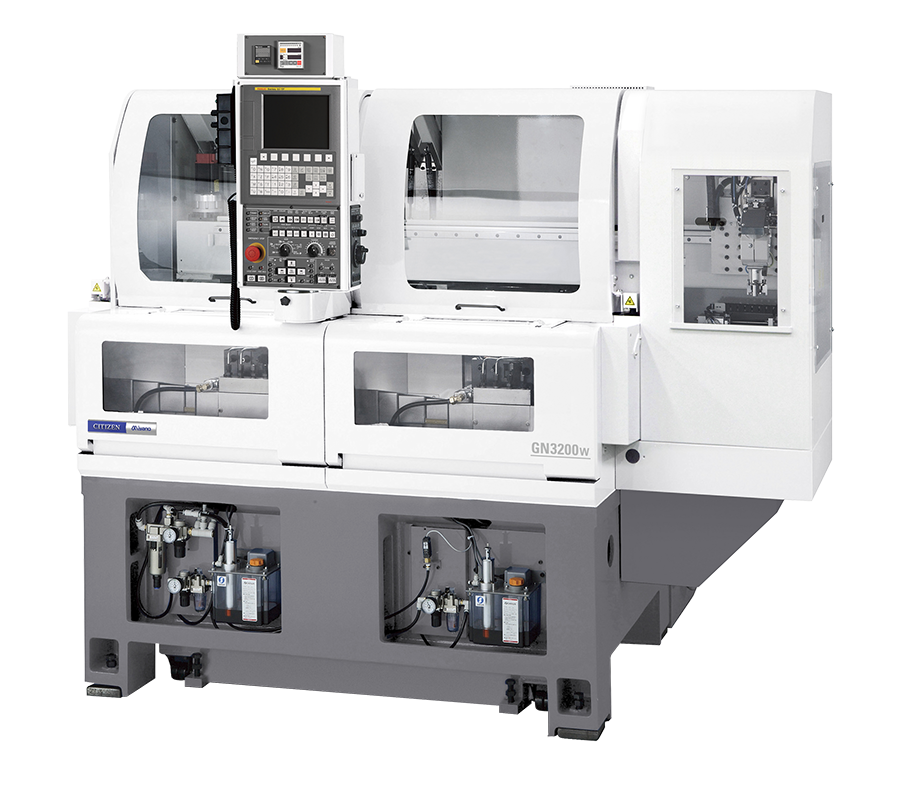

Citizen Machinery Miyano GN-3200W | Twin-Spindle CNC Precision Turning Center with Gantry LoaderAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Miyano GN-3200W is a twin-spindle CNC turning center designed for precision turning of small parts with integrated high-speed automation. It features dual turrets and spindles, a compact footprint, and can be configured with a high-speed gantry loader to maximize productivity for batch or production environments. The machine’s reduced floor space and automation compatibility address space efficiency and unattended operation needs.
Key Capabilities
- Simultaneous machining with dual spindles and dual turrets

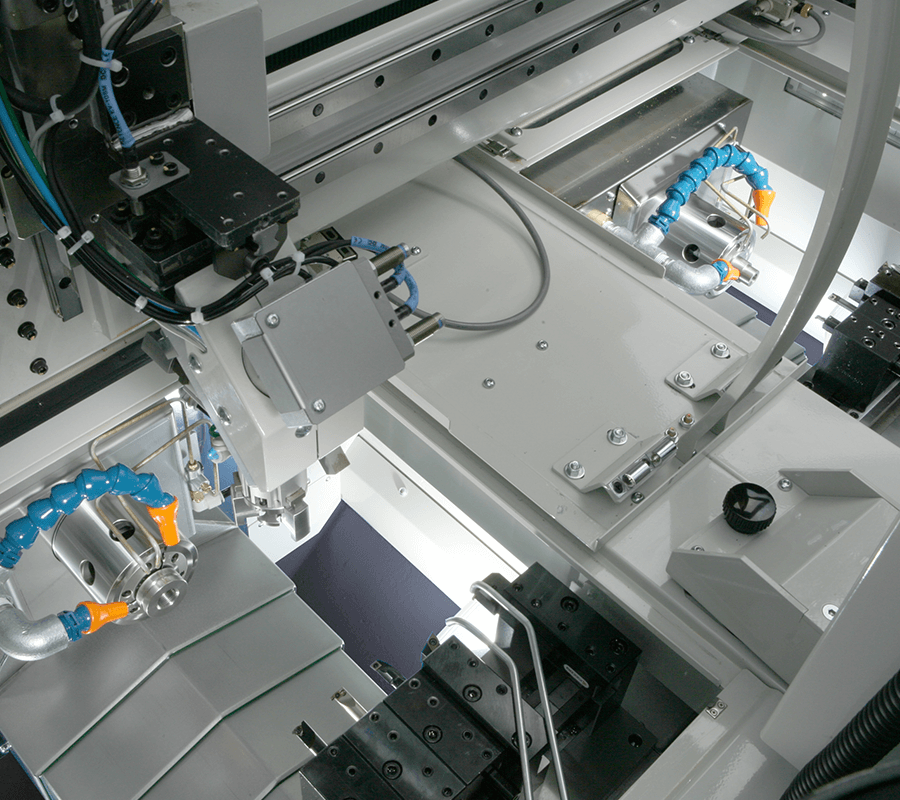

- Automated part handling via high-speed gantry loader and peripheral device compatibility
- Compact machine footprint enabling space-saving installations
- Pneumatic power chucks and collet chucks support both stationary and pull-type operations
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Collet Chuck Diameter (Pull Type) | 40 | mm |
| Maximum Machining Length | 50 | mm |
| Spindle Speed Range (L/R) | 80 - 8,000 | min-1 |
| Number of Turrets | 2 | |
| Turret Tool Shank Heights | 10, 12, 16 | mm Sq. |
| Drill Shank Diameter | 20 | mm |
| X-Axis Stroke (each axis) | 180 | mm |
| Z-Axis Stroke (each axis) | 200 | mm |
| Machine Width x Length | 1,400 x 1,477 | mm |
| Machine Weight | 2,650 | kg |
