Summary

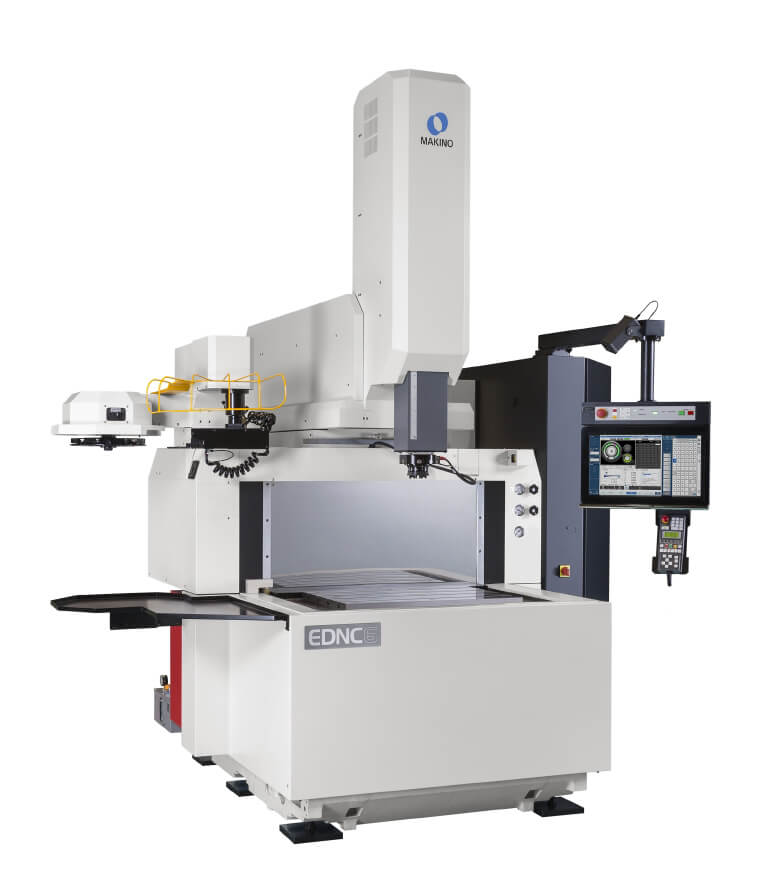

The Makino EDNC6 is a CNC sinker electrical discharge machine designed for precise cavity creation in conductive materials using a programmable submerged process. It supports workpieces up to 1,500 kg and features a rise-and-fall work tank system for improved access and setup, with available wide-tank and automatic tool changer options. High-speed Z-axis motion and an advanced Hyper-i control system enable efficient processing of small-detail electrodes and complex part geometries.

Key Capabilities

• Programmable three-sided rise-and-fall work tank for flexible workpiece access
• Available wide-tank version for larger part sizes
• Optional external automatic tool changer (ATC) with up to 32 tool stations
• High-speed HS-Rib Z-axis configuration for rapid jump motions (up to 20 m/min, 1.5G acceleration)
• Supports workpiece weights up to 1,500 kg and electrodes up to 100 kg
• Integrated Hyper-i control system with graphical touch interface and onboard support resources
• Dielectric reservoir incorporated into base casting for enhanced thermal stability and compact footprint
