Summary

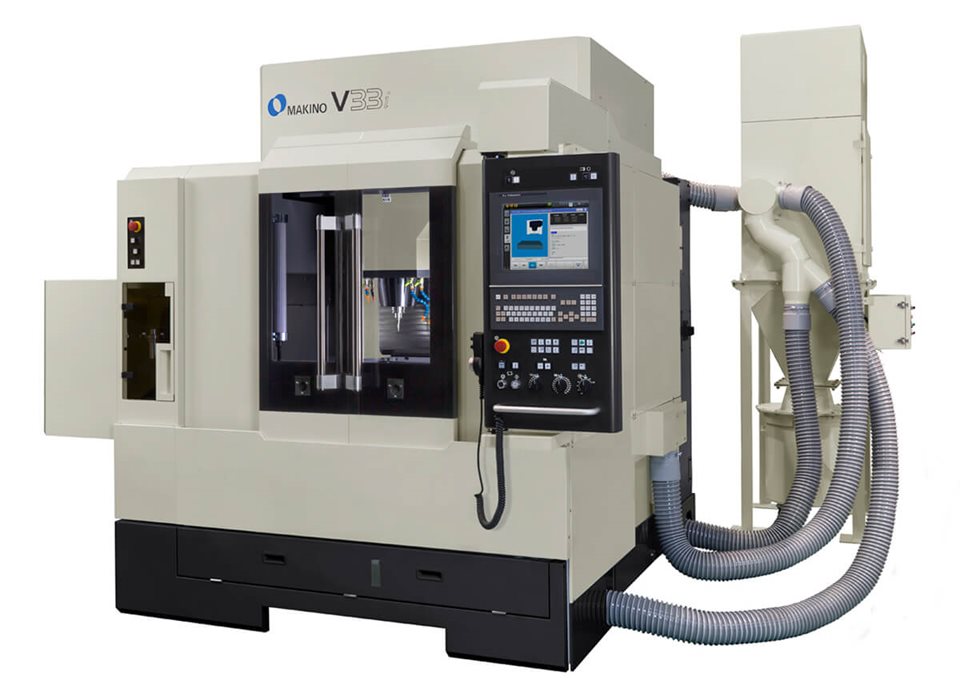

The Makino V33i Graphite is a high-speed vertical machining center engineered for precision graphite machining, particularly for die and mold applications involving complex geometries and long cycle times. Its core function is the high-accuracy removal of material from graphite workpieces, with sustained accuracy provided by advanced thermal management and a unique core-cooled spindle design. Differentiating features include integrated temperature control across all critical machine components and proprietary servo control technology optimized for complex, high-speed machining cycles.

Key Capabilities

• High-speed spindle with core-cooling and under-race lubrication for minimized thermal distortion
• Advanced servo control (Super Geometric Intelligence SGI.5) for optimized cycle times in complex geometries
• Integrated temperature control of ballscrews, guideways, spindle, and saddle to manage thermal stability during long cycles
• Graphite machining capability with features supporting sustained accuracy and surface finish
• Rigid machine construction with no axis overhangs, providing uniform accuracy throughout the travel
• Makino Professional 6 control system with graphical user interface and advanced data management
• Hydraulic circuit on X-axis to minimize friction and maintain accuracy

Key Specifications
