Summary

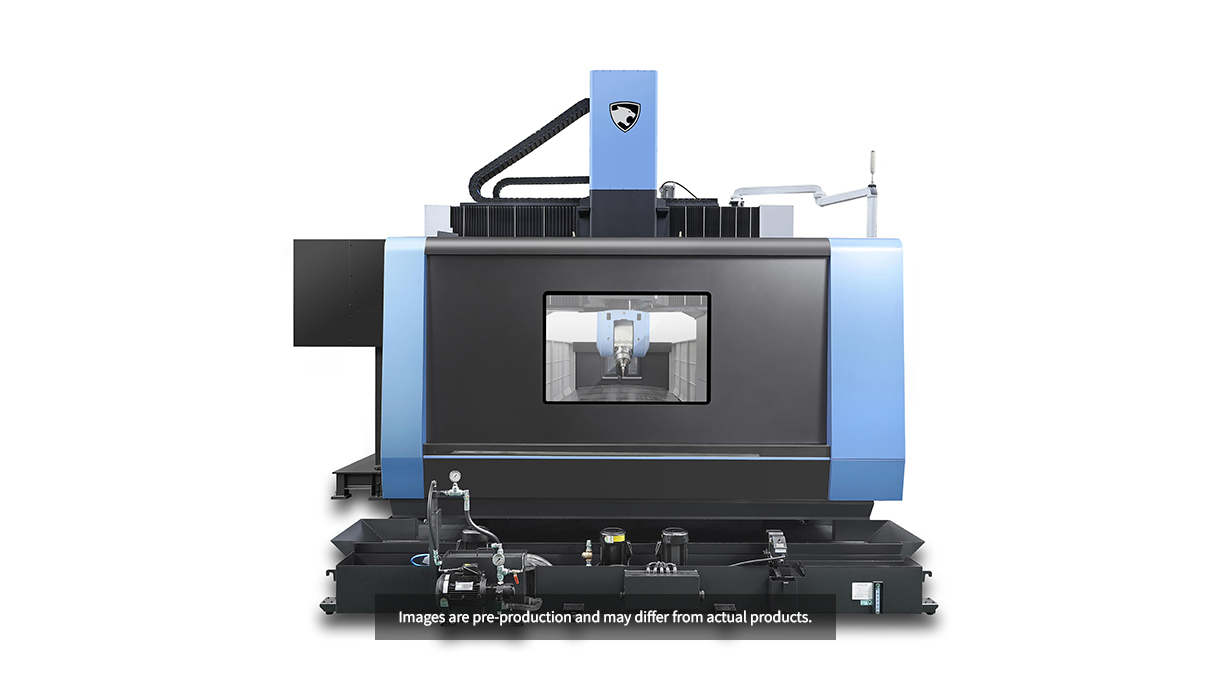

The BM 2740U is a bridge-type vertical machining center equipped with a universal head, engineered for high-precision machining of large dies and mold tools. Its high-speed, high-rigidity spindle and advanced thermal compensation features support reliable cutting performance for oversized workpieces, particularly in automotive die and mold applications. Distinctive capabilities include dual contact spindles, all-axes linear scales, a long-nose spindle for deep pocket machining, and real-time thermal displacement compensation.

Key Capabilities

• Simultaneous multi-axis (universal head) machining for complex geometry production
• High-rigidity bridge construction for stability in large part machining
• Deep pocket mold tool access using long-nose spindle configuration
• Dual contact spindle interface designed to minimize vibration
• Integrated linear scales and real-time thermal displacement compensation on all axes
• Ball screw bearings and nut cooling system for maintained precision during extended operations
• Ambient temperature shielding for environmental consistency

Key Specifications
