Summary

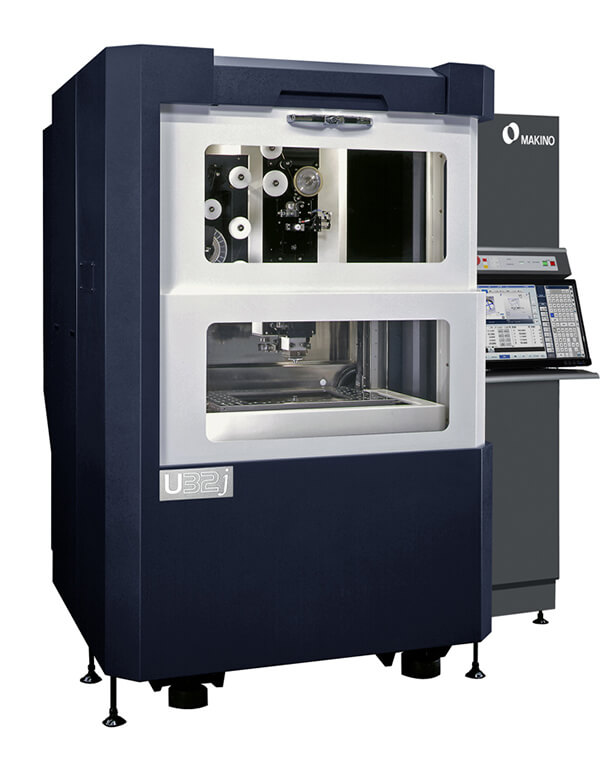

The Makino U32j is a high-precision wire electrical discharge machine designed to cut complex shapes in conductive materials with exceptional accuracy and surface finish. It employs a stationary work table and integrated dielectric reservoir for enhanced thermal stability and positional accuracy, supporting applications such as plastic injection molds, stamping tools, and medical components. The machine features advanced control options, fine wire capabilities, and is configurable for automation and advanced probing.

Key Capabilities

• Stationary work table configuration for improved accuracy and elimination of di-electrode weight shifting
• Capable of achieving surface finishes down to 0.07µmRa with the Crystal II Circuit
• Supports fine wire operation down to 0.05 mm (0.002")
• Integrated dielectric reservoir within base casting for reduced footprint and enhanced thermal stability
• Chilled air circulation around U/V/Z axes to maintain constant internal temperature
• Positional accuracies: axis straightness 3µm, squareness and parallelism 4µm
• Hyper i control system with 24" HD touchscreen and advanced handbox
• Programmable 3-sided rise & fall work tank for ergonomic loading and maintenance
• Optional H.E.A.T. technology for demanding flushing scenarios and 3D probe system for setup reduction
