Summary

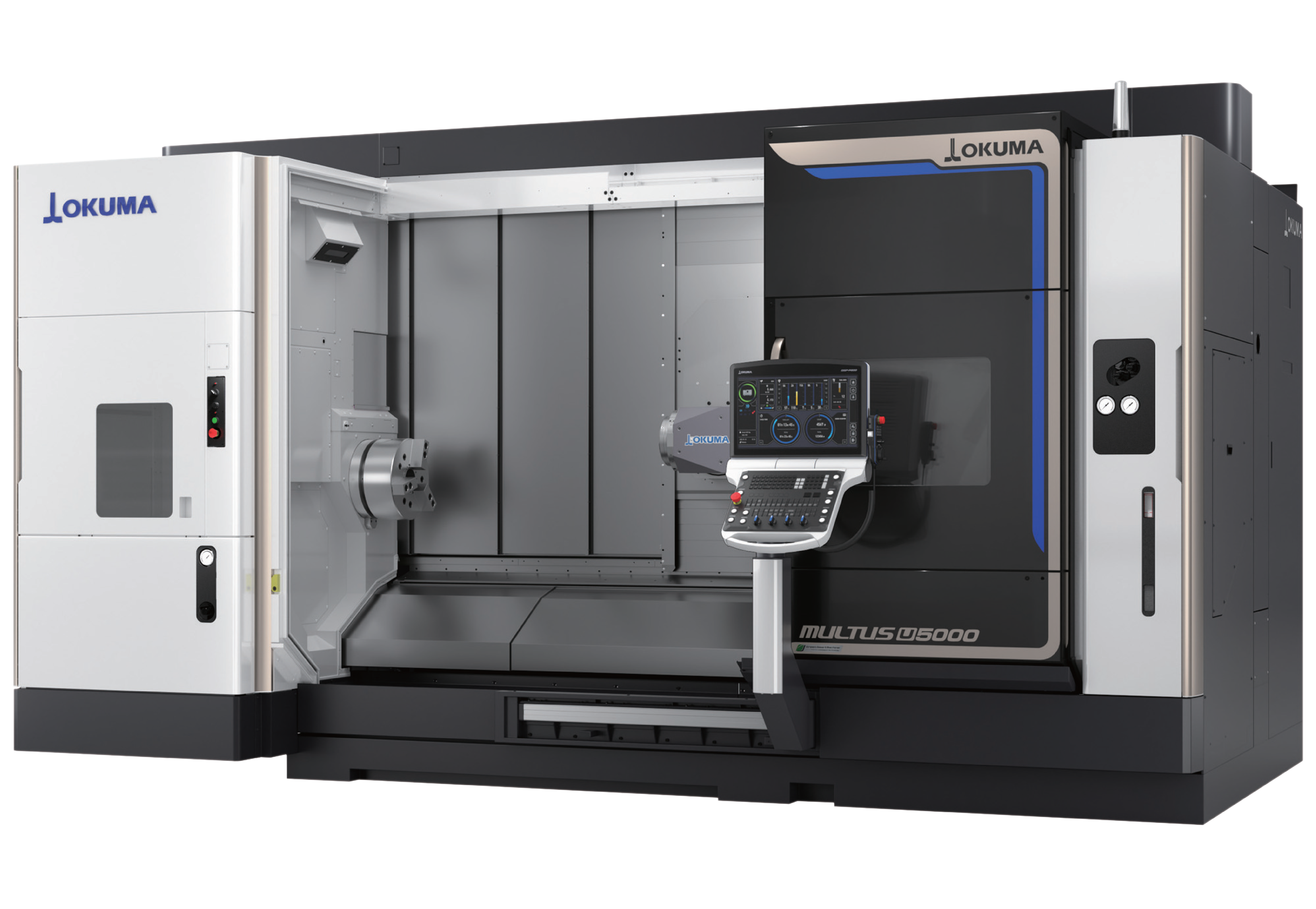

The Okuma MULTUS U5000 is a CNC multitasking center designed for complete part machining in a single setup, integrating advanced turning and 5-axis milling via a 240° B-axis head. Its core function is the simultaneous execution of complex turning, milling, drilling, and gear cutting operations, with support for multi-tool automatic tool changes and optional sub-spindle and lower turret for expanded process flexibility. Key differentiators include CAPTO C6 tool interface, 12,000 rpm H1 milling spindle, and full contouring dual spindle C-axes.

Key Capabilities

• Single-setup 5-axis milling and turning operations with B-axis head
• Automatic tool changer supporting up to 80 tools (option)
• Simultaneous machining with optional sub-spindle and lower turret
• Dual-function H1 spindle head for both milling and turning
• Contouring C-axes on both main and optional sub-spindles
• Deep drilling and gear cutting supported

Key Specifications
