Summary

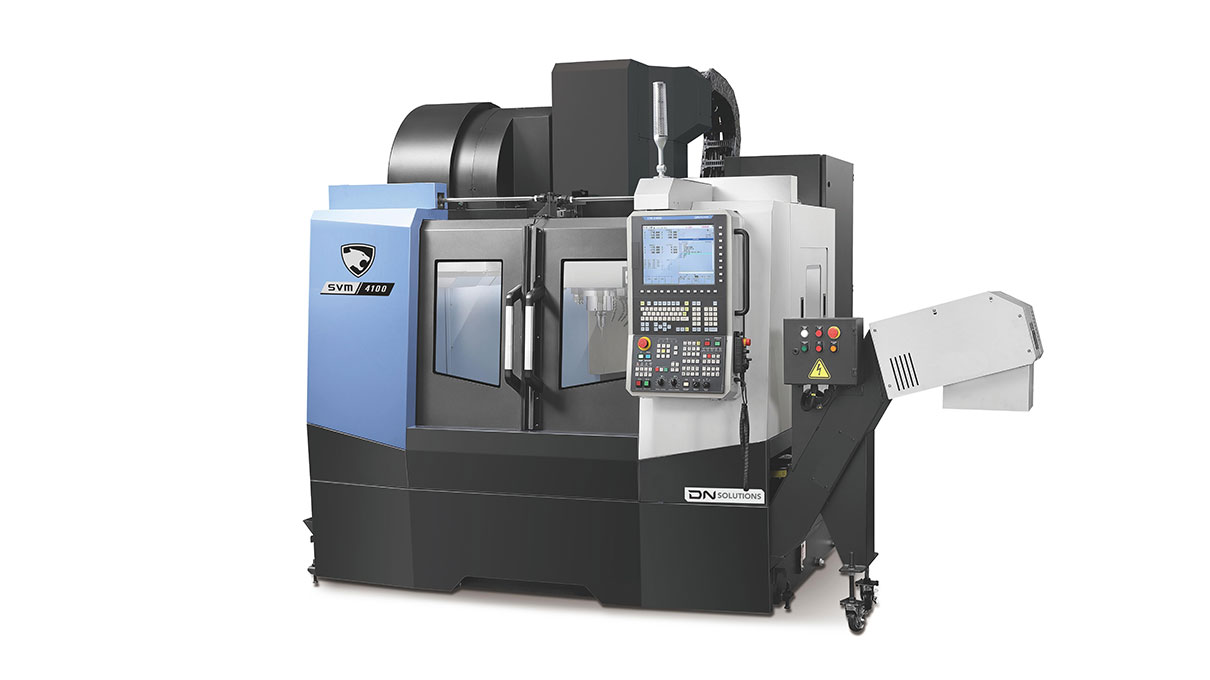

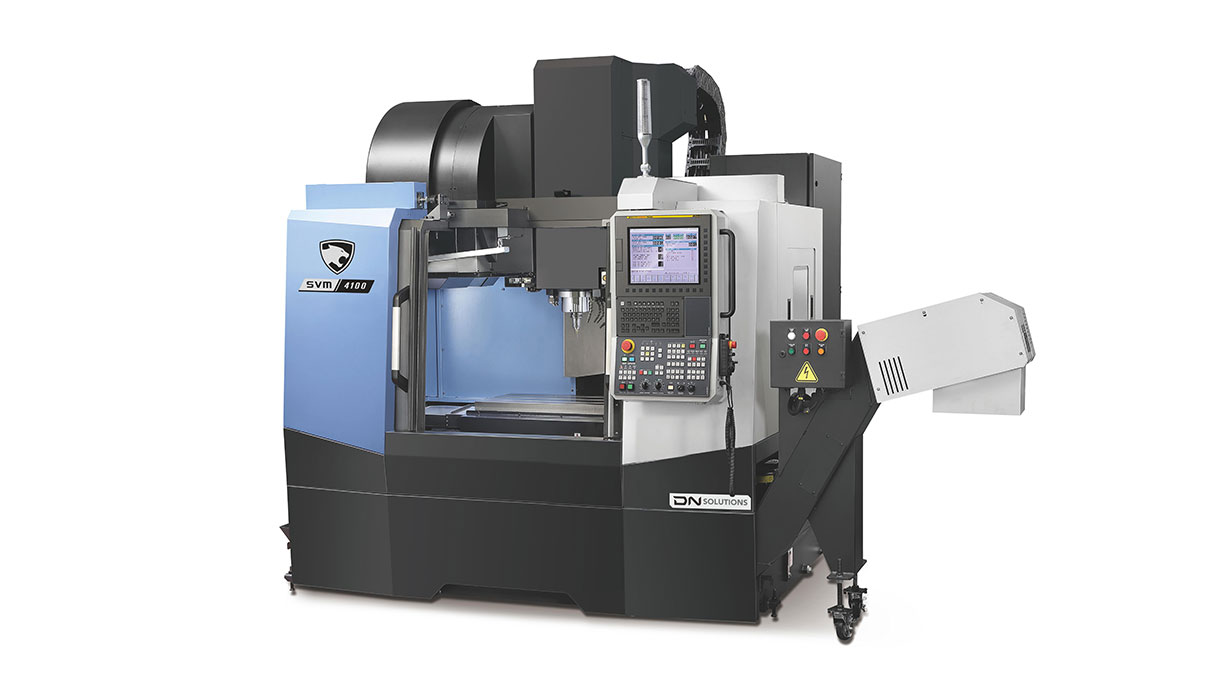

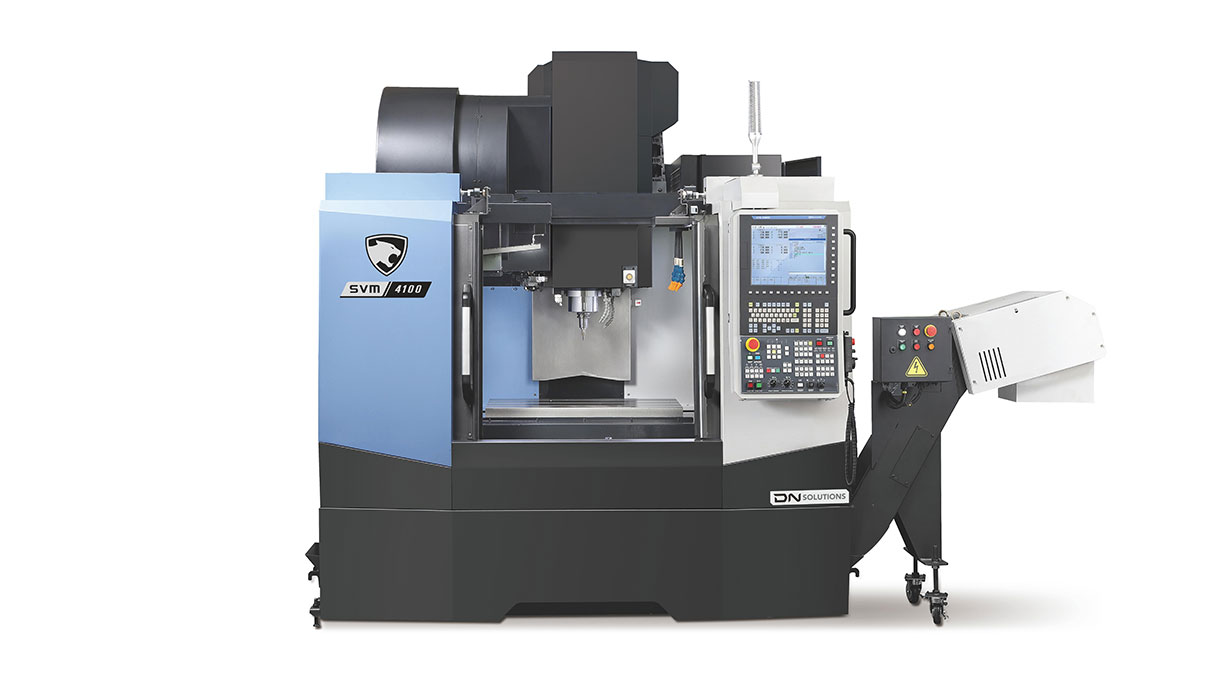

The Dn Solutions SVM 5100L is a 3-axis vertical machining center designed for high-efficiency machining of lightweight workpieces. It features a direct-coupled spindle with high acceleration/deceleration rates and a maximum spindle speed of 12,000 r/min, enabling rapid operations. Notable technical characteristics include a 410 mm Y-axis, rapid traverse rates on all axes, and minimal spindle thermal displacement for consistent results.

Key Capabilities

• 3-axis machining with 1270 mm X, 510 mm Y, and 510 mm Z travel
• Direct-coupled spindle for fast acceleration and high spindle reliability
• Max spindle speed of 12,000 r/min supporting high-speed cutting
• High rapid traverse rates of 36 m/min on all axes
• Supports workpieces up to 800 kg
• Grease-lubricated axis roller guideways
