Summary

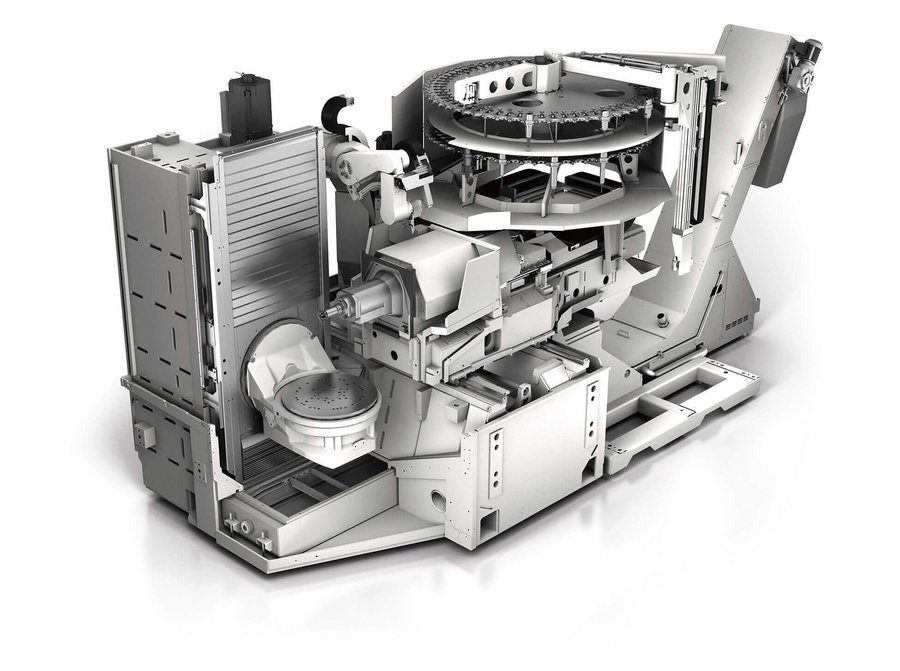

The Grob G300 is a modular 3-axis CNC machining center engineered for high-precision cutting operations, particularly in flexible series production settings such as the automotive sector. Its compact footprint, dynamic axis motion, and modular configuration enable fast tool changes, efficient machining, and adaptability to a range of part variations. The system supports both wet and dry machining and incorporates expandability for changing production requirements.

Key Capabilities

• 3-axis simultaneous motion with high travel and speed
• Fast tool change to minimize downtime
• Modular design enabling adaptability for part modifications and process changes
• Support for both wet and dry machining environments
• Expandable tool magazine for increased tooling options
• Compact layout for reduced footprint and installation effort

Key Specifications

| Parameter | Value | Unit |

| Working travels (X/Y/Z) | 600/770/810 | mm |

| Maximum speeds (X/Y/Z) | 95/45/100 | m/min |

| Interference diameter | 720 | mm |

| Positioning accuracy (X/Y/Z) | 0.006 | mm |

| Chip-to-chip time | 2.3 | s |

| Table load (without/with pallet) | 400/340 | kg |

| Total weight (without/with pallet changer) | 15,000/17,500 | kg |
