Summary

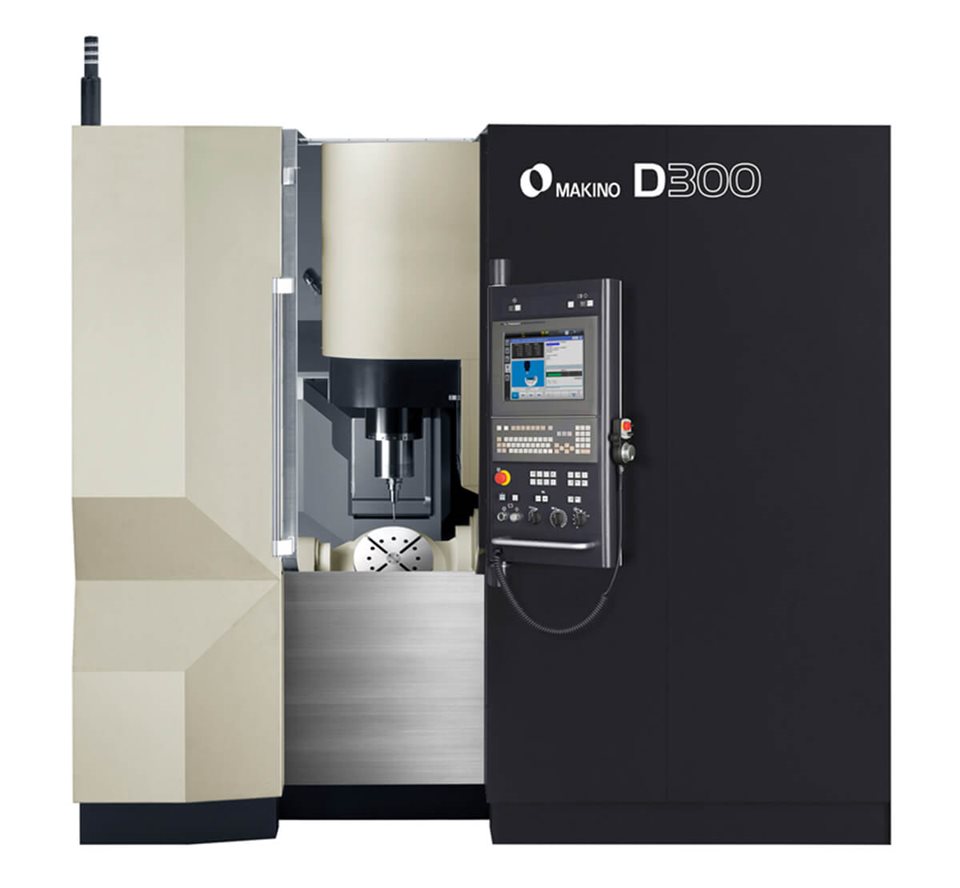

The Makino D300 is a 5-axis vertical machining center engineered for high-speed, high-precision machining of multifaceted contoured parts, dies, cavities, and cores. It features core-cooled ballscrews, temperature-controlled direct-drive rotary axes, and advanced servo control to achieve thermal stability and reduce cycle times. The machine is equipped with a user-friendly control platform, expandable tool magazine options, and multiple spindle configurations for versatile, production-oriented applications.

Key Capabilities

• 5-axis simultaneous machining via linear X, Y, Z axes and DD-driven rotary A and C axes
• Thermal stability through core-cooled ballscrews and temperature-controlled direct-drive motors
• High-speed spindle options up to 30,000 rpm
• Compatible with a wide range of workpieces and materials
• Expandable automatic tool changer (ATC) and automation options
• Operator interface with advanced graphical user interface and data management
• Cycle time reduction on complex geometries using proprietary servo control

Key Specifications
