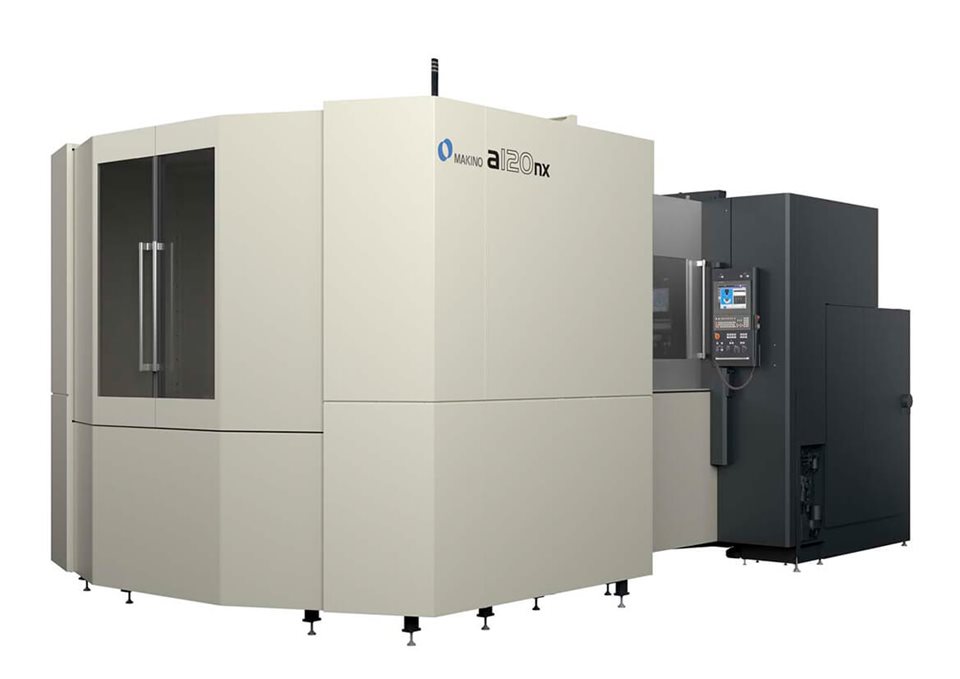

Makino a120nx | 4-axis horizontal machining centerAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino a120nx is a 4-axis horizontal machining center designed for efficient, high-accuracy machining of large workpieces. It supports parts up to 2100mm in diameter, 1800mm tall, and weighing up to 5,000 kg (optional), with rapid traverse and cutting feedrates reaching 54,000 mm/min. Notable technical features include high tool capacity, high-torque spindle capability, and configurable spindle options for broad machining applications.
Key Capabilities
- Four-axis horizontal machining for complex, large-part processing
- Accommodates workpieces up to 2,100mm diameter and 1,800mm height
- Supports payloads up to 5,000 kg (optional)
- Spindle speeds up to 8,000 RPM (20,000 RPM optional) with high-torque spindle
- Tool magazine capacity up to 204 tools
- Fast tool-to-tool change times (as low as 2.2 seconds)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Workpiece Size | Ø2,100 x 1,800 | mm |
| Maximum Payload | 3,000 (5,000 opt) | kg |
| Pallet Size | 1,000 x 1,000 | mm |
| X Travel | 1,900 | mm |
| Y Travel | 1,600 | mm |
| Z Travel | 1,700 | mm |
| Spindle Speed | 8,000 (20,000 opt) | RPM |
| Rapid Traverse | 54,000 | mm/min |
| Tool Capacity | 204 | |
| Tool-to-Tool Change Time | 2.2 / 3.3 | sec |
| Max Tool Diameter | 356 | mm |
| Max Tool Weight | 35 | kg |
