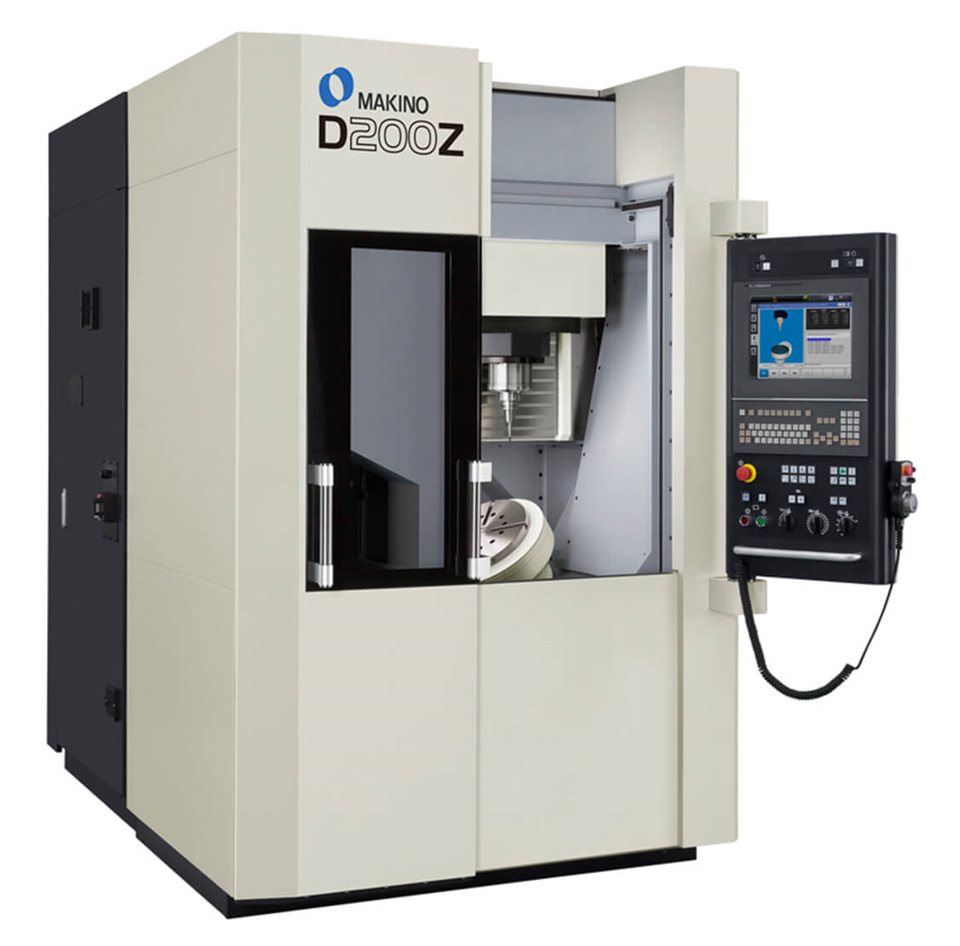

Makino D200Z | 5-axis Vertical Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino D200Z is a 5-axis vertical machining center designed for high-precision machining of complex 3D contoured workpieces. It delivers simultaneous 5-axis milling, featuring rapid tool movements and a 30,000-rpm HSK-E50 spindle for tight tolerances in dies, molds, medical, and optical components. Key differentiators include direct-drive rotary axes, proprietary motion control software, and an integral chuck for maximizing work-zone volume.
Key Capabilities
- Simultaneous full 5-axis machining via B and C direct-drive axes
- Supports complex 3D geometries for high-precision dies, molds, and intricate parts
- High-speed spindle (30,000 rpm) for fine surface finishes with reduced manual finishing
- Suitable for workpieces up to 300 mm diameter x 210 mm height, 75 kg
- Large tool changer capacity (standard and optional), supporting automated, extended operation
- Advanced motion control (SGI.5, Makino Professional 6)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X-axis travel | 350 | mm |
| Y-axis travel | 300 | mm |
| Z-axis travel | 250 | mm |
| B-axis tilt | 0 to +180 | degrees |
| C-axis rotation | 360 continuous | degrees |
| Spindle speed | 30,000 | rpm |
| Table diameter | 300 | mm |
| Max workpiece size | 300 x 210 | mm |
| Max payload | 75 | kg |
| Rapid traverse | 60 | m/min |
| Cutting feedrate | 60 | m/min |
| Tool changer capacity | 21 (optional up) | tools |
| Max tool diameter | 50 / 80 (ALL / ADJ) | mm |
| Max tool weight | 3 | kg |
| Chip-to-chip time | 3.9 | sec |
