Summary

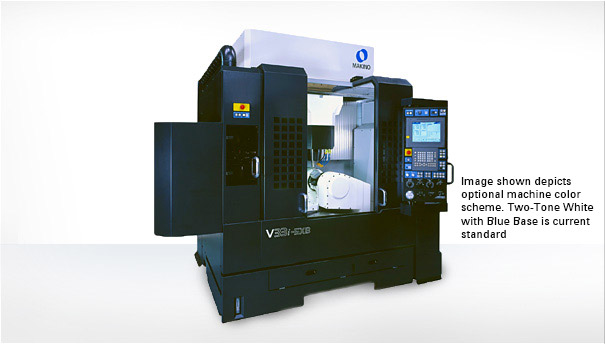

The Makino V33i 5XB is a 5-axis vertical CNC milling center designed for die and mold production of intricate 3D shapes. Its core function is simultaneous multi-axis milling using a tilt-trunnion table with combined B- and C-axes, enabling single-setup machining of complex, multi-sided parts with high accuracy and repeatability. Notable technical features include Makino's proprietary Super Geometric Intelligence (SGI.5) servo control, advanced spindle cooling systems, and a user-friendly Professional 6 CNC control.

Key Capabilities

• Simultaneous full 5-axis and "3+2" multi-plane milling for complex geometries
• Specially engineered tilt-trunnion table with B- (A) and C-axes for superior accuracy and rigidity
• Core-cooled, high-speed spindle with enhanced thermal management and minimized vibration
• Single-setup machining supports access to undercut and multiple-sided features
• Advanced Makino Professional 6 CNC control with graphical user interface
• Temperature-controlled guideways, ball screws, saddle, and spindle carrier

Key Specifications
