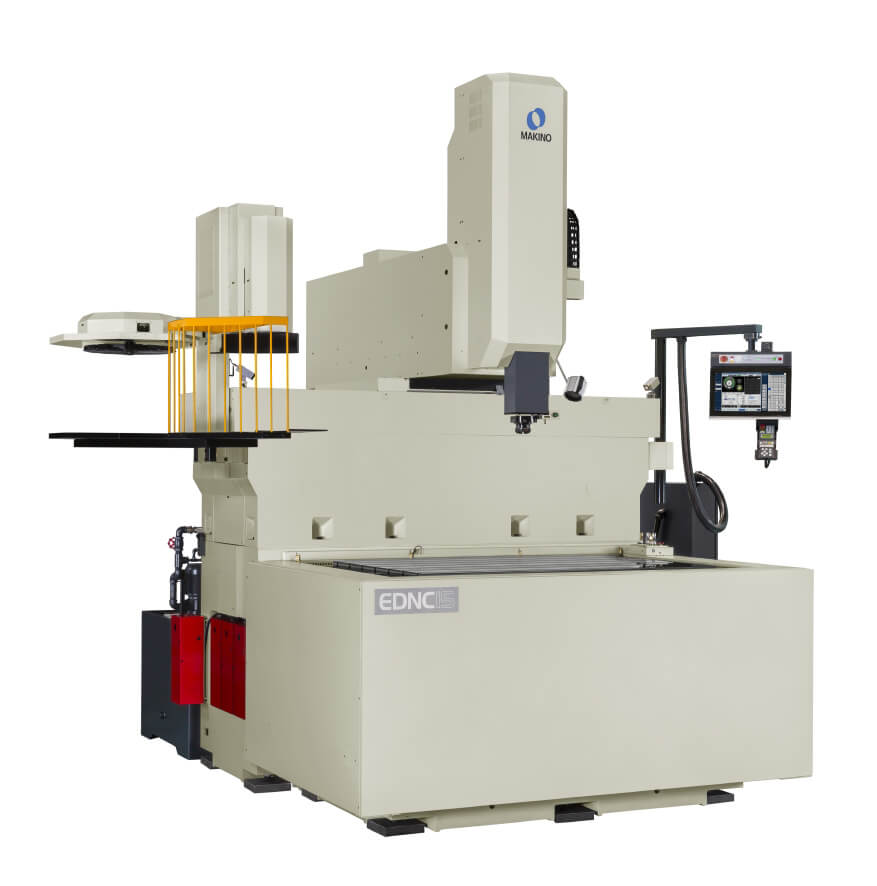

Makino EDNC15 | Large-Format Sinker EDM MachineAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino EDNC15 is a sinker electrical discharge machining (EDM) system designed for precision cavity and detail formation in large, heavy workpieces. It delivers high-accuracy spark erosion via a stationary work table and integrated dielectric base, supporting intensive applications with workpiece weights up to 10,000 kg. Distinguishing characteristics include the Hyper-i control system, SuperSpark™ IV and HyperCut technologies, and a 4-sided programmable rise & fall tank for advanced access and automation integration.
Key Capabilities
- Sinker EDM process for forming precise cavities in conductive materials
- Accommodates workpieces up to 10,000 kg with stationary work table construction
- Hyper-i graphical touchscreen control system with EDM assist and diagnostic tools
- Advanced sparking technologies: SuperSpark™ IV and HyperCut
- Programmable 4-sided rise & fall work tank for improved operator access and automation compatibility
- Integrated dielectric reservoir within base casting for increased thermal stability
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X-axis Stroke | 1,500 | mm |
| Y-axis Stroke | 700 | mm |
| Z-axis Stroke | 500 (800) | mm |
| Table Size | 2,000 x 1,000 | mm |
| Max Workpiece Weight | 10,000 | kg |
| Rapid Traverse | 5,000 | mm/min |
| Maximum Electrode Weight | 100 | kg |
| ATC Capacity | 8, 16, 32 | |
| Max Available Amperage | 60~240 | A |
| Tank Size | 2,500 x 1,400 x 800 | mm |
