Summary

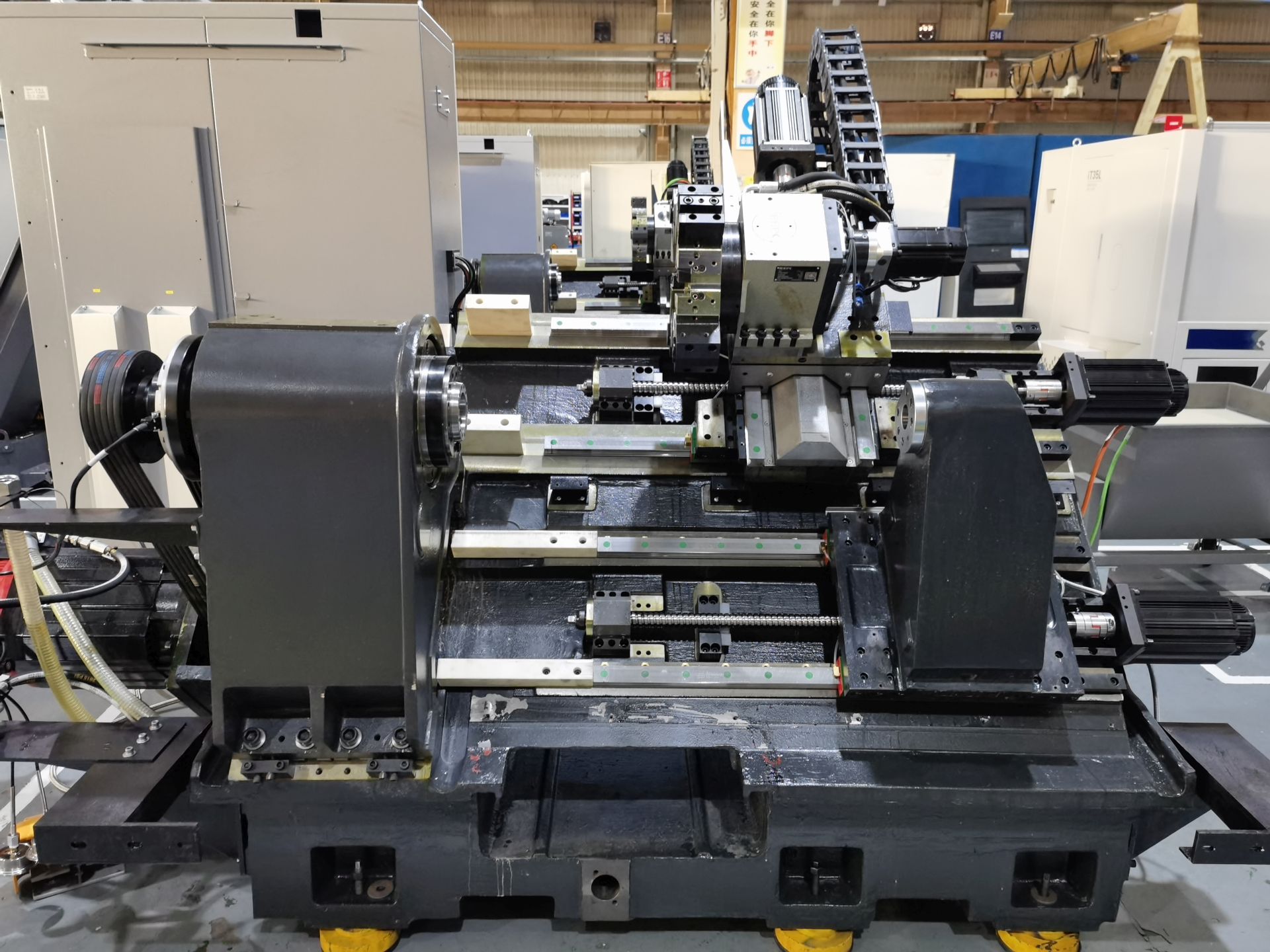

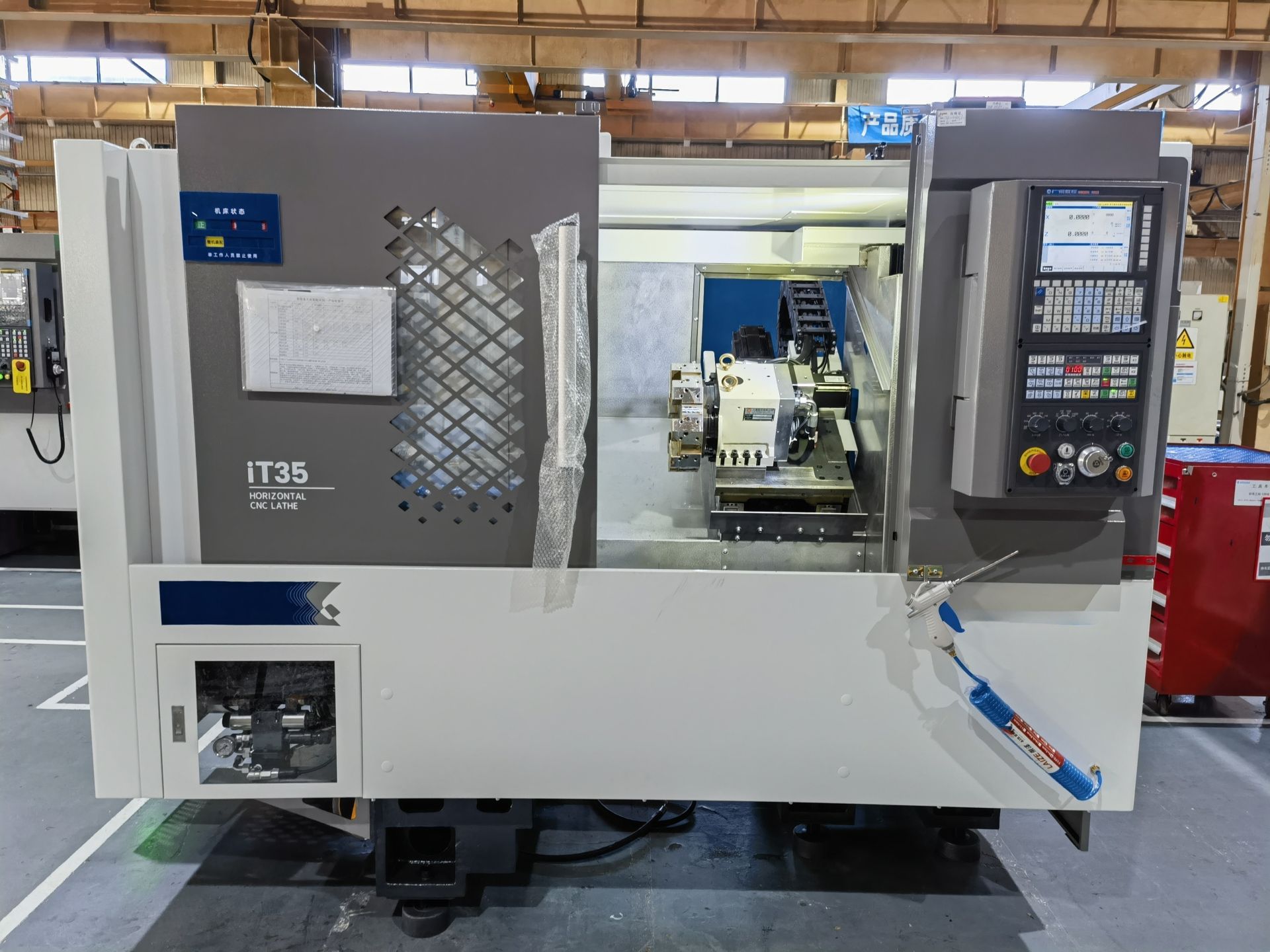

The SMTCL iT 35L is a CNC turning center designed for machining disk and short shaft workpieces, supporting operations such as turning, grooving, threading, and facing. It features a servo-driven turret with 8 tool positions and supports production applications in the automotive, bearing, construction machinery, and nonferrous metals industries. Key technical characteristics include high rigidity construction, a large spindle bore, and fast axis traverse rates.

Key Capabilities

• CNC turning of disk and short shaft workpieces
• Machining of end faces, grooves, cylinders, internal threads, and surfaces of revolution
• Horizontal 8-position servo turret for flexible tool selection
• X/Z axis rapid traverse for high productivity
• Chuck capacity for Ø50 mm bar and 8-inch diameter workpieces
• Double-supported feed mechanism and stable whole-body tailstock
