Okuma GENOS M460-VE | 3-axis vertical machining centerAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

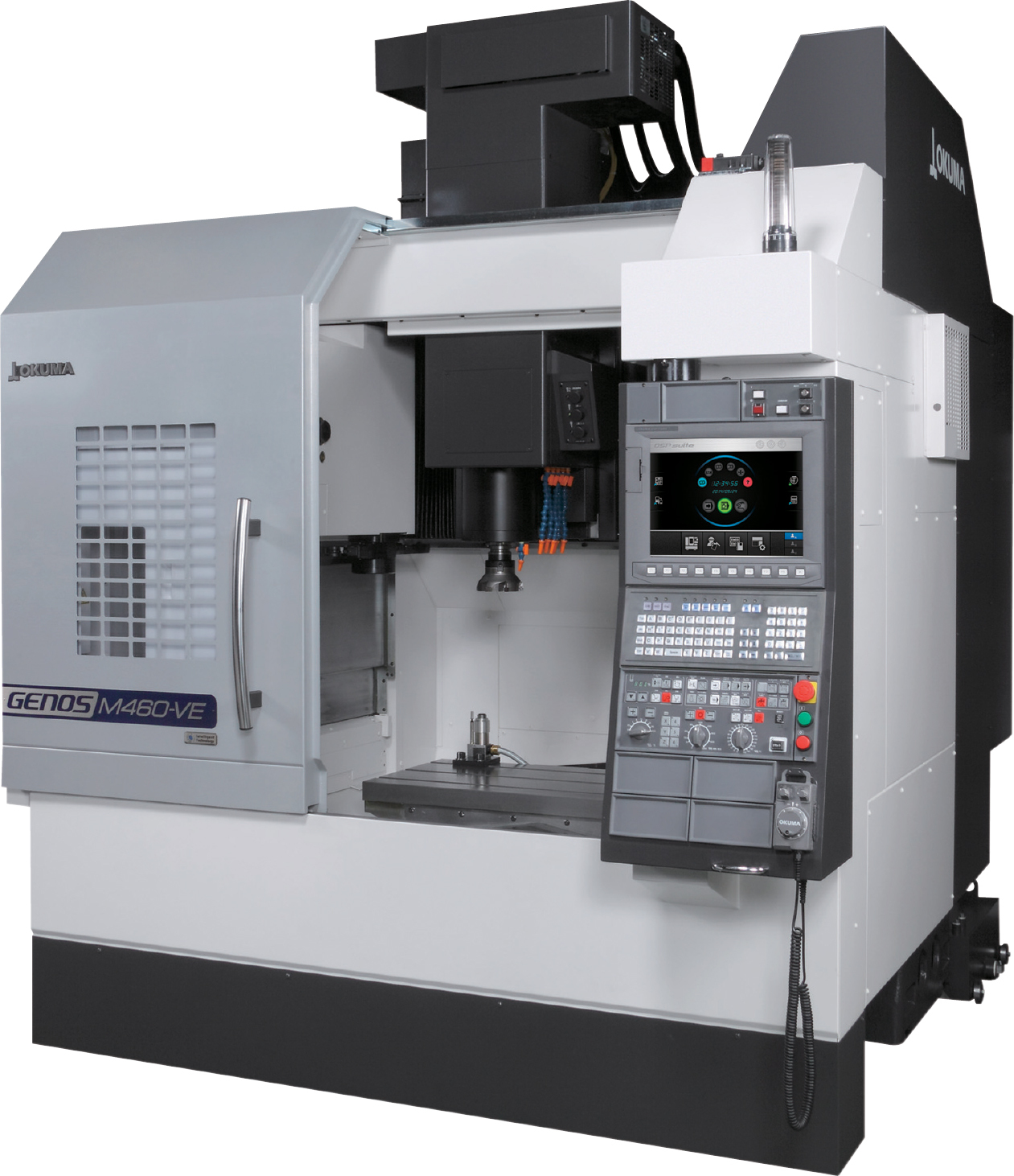

The GENOS M460-VE is a 3-axis vertical machining center designed for precision milling, drilling, and tapping of metallic and rigid materials. The machine features a high-speed 15,000 rpm CAT40 BIG-PLUS® spindle, a 32-tool automatic magazine, and a highly rigid double-column structure to support accuracy and repeatability. Its OSP control system and compact footprint make it suitable for production and job shop environments prioritizing thermal stability and swift tool change cycles.
Key Capabilities
- 3-axis simultaneous machining for complex part geometries
- High-speed 15,000 rpm spindle for improved cutting efficiency
- 32-tool automatic magazine enabling extended and flexible operation
- Highly rigid double-column construction for enhanced stability and repeatability
- Okuma OSP control system for integrated machine management
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Machining Volume (X/Y/Z) | 762 x 460 x 460 | mm |
| Table Size | 460 x 1,000 | mm |
| Spindle Speed | 15,000 | min⁻¹ |
| Spindle Motor Power | 22 / 18.5 | kW |
| Magazine Capacity | 32 | Tools |
| Rapid Traverse (X/Y) | 40 | m/min |
| Rapid Traverse (Z) | 32 | m/min |
