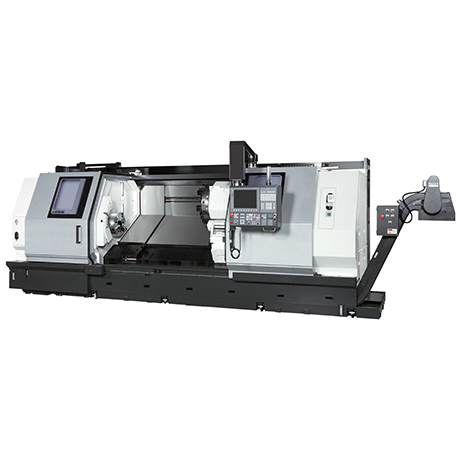

Okuma LB35III | CNC Horizontal Turning CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Okuma LB35III is a CNC horizontal turning center designed for high-productivity metal turning operations. It supports operations such as turning, drilling, milling, and tapping when equipped with the optional multitasking (M) function. Differentiating features include rotary tooling capability, long bed capacity, and a powerful spindle drive system with a fast-indexing NC turret.
Key Capabilities
- CNC-controlled horizontal single-saddle lathe configuration
- Rotary tooling support for milling and tapping (optional M function)
- Fast-indexing NC turret for rapid tool changes
- Multiple spindle nose and power configurations
- Extended bed options for increased turning length
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Turning Diameter | Ø18.11 (Ø460) | in (mm) |
| Max Turning Length | 23.62 / 33.46 / 59.06 / 78.74 (600 / 850 / 1,500 / 2,000) | in (mm) |
| Spindle Nose Type | A2-8 / A2-11 / A2-15 | |
| Speed Range | 14–3,200 / 12–2,800 / 40–1,400 | min⁻¹ |
| Standard Power | 40/30 / 50/40 (30/22 / 37/30) | hp (kW) |
| Rapid Traverse X/Z | 591 / 787 (15 / 20) | ipm (m/min) |
