Summary

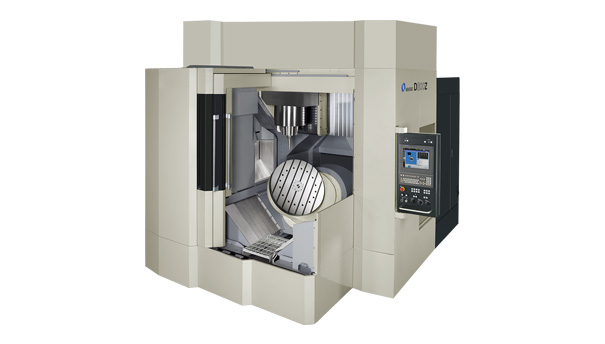

The Makino D800Z (50 Taper) is a 5-axis vertical machining center engineered for high-precision machining of large, complex parts. Its core function is simultaneous multi-axis milling, specifically targeting applications in die/mold and aerospace requiring tight tolerances, smooth surface finishes, and efficient processing of sizeable workpieces. Notable technical features include a direct-drive tilt-trunnion table, advanced SGI.5 (Super Geometric Intelligence) control for high-feedrate accuracy, robust thermal management, and large workpiece capacity.

Key Capabilities

• Simultaneous 5-axis machining with tilt-trunnion rotary table
• Processes workpieces up to 1,000 mm diameter and 1,200 kg
• Advanced SGI.5 control for precise, high-speed machining of complex 3D geometries
• Direct-drive motors on all rotary axes for smooth, high-accuracy motion
• Tool Center Point (TCP) control for improved cutter path and collision avoidance
• Thermal stability through core-cooled ballscrews and temperature-controlled drives
• 48-tool automatic tool changer (optionally up to 117 tools)
• Accessible machine design for setup and maintenance

Key Specifications
