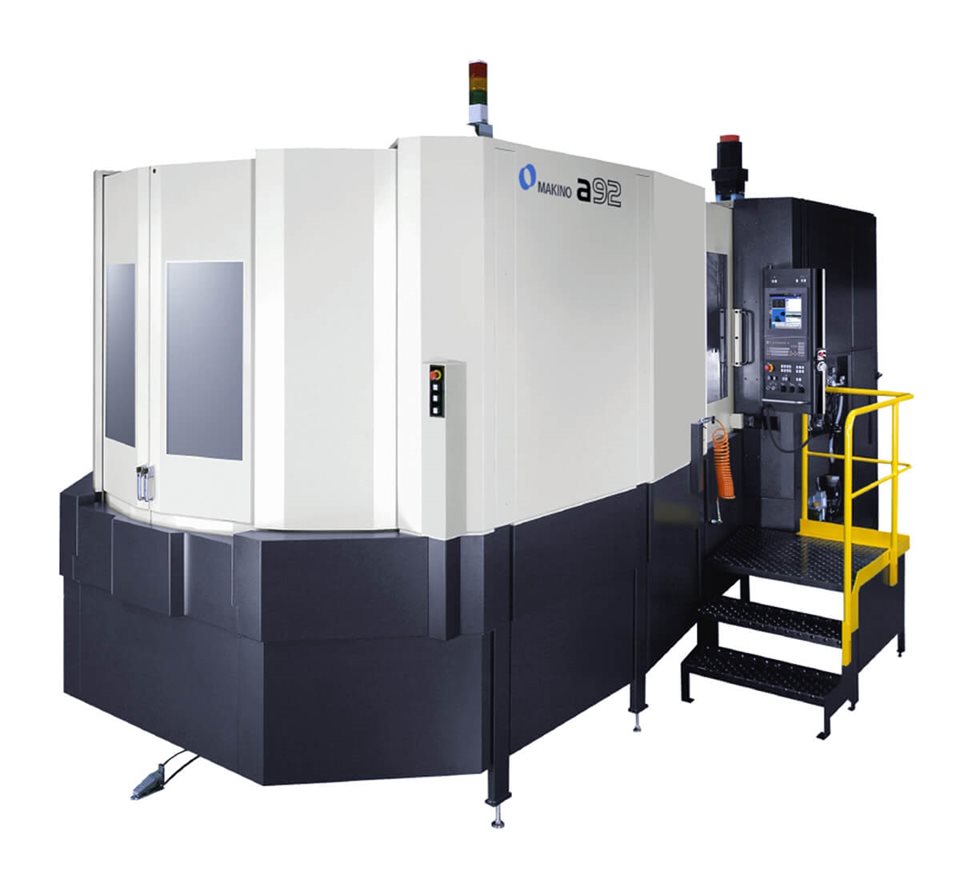

Makino a92 | 4-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino a92 is a 4-axis horizontal machining center engineered for high-efficiency material removal and large-part production. It is designed to deliver rigid, high-thrust machining suitable for diesel engine block and construction equipment manufacturing. The system is configured to accommodate heavy workpieces and demanding production environments in agriculture, energy, and construction sectors.
Key Capabilities
- 4-axis machining with horizontal spindle orientation for increased workpiece accessibility
- High-thrust cutting suitable for large, heavy components
- Designed to support diesel engine block and construction equipment manufacturing
- Supports pallet sizes up to 800 x 1,000 mm and workpiece weights up to 2,000 kg (optionally 3,000 kg)
- Rapid automatic tool changes with ATC capacities from 40 up to 316 tools
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Pallet Size | 800 x 1,000 | mm |
| X Travel | 1,520 | mm |
| Y Travel | 1,250 | mm |
| Z Travel | 1,350 | mm |
| Maximum Workpiece Size | Ø1,500 x 1,500 | mm |
| Maximum Payload | 2,000 (option 3,000) | kg |
| Spindle RPM | 10,000 (8K, 20K options) | rpm |
| Spindle Taper | CAT50 (HSK-A100 optional) | — |
| Rapid Traverse | 50,000 | mm/min |
| Cutting Feedrate | 50,000 | mm/min |
| ATC Capacity | 40 (60, 92, 148, 204, 316) | tools |
| Tool to Tool Change | 1.9 | sec |
| Chip to Chip Change | 5.4 | sec |
| Maximum Tool Diameter | 356 (40/60 ATC), 350 (92+ ATC) | mm |
| Maximum Tool Weight | 30 (40/60 ATC), 35 (92+ ATC) | kg |
