Summary

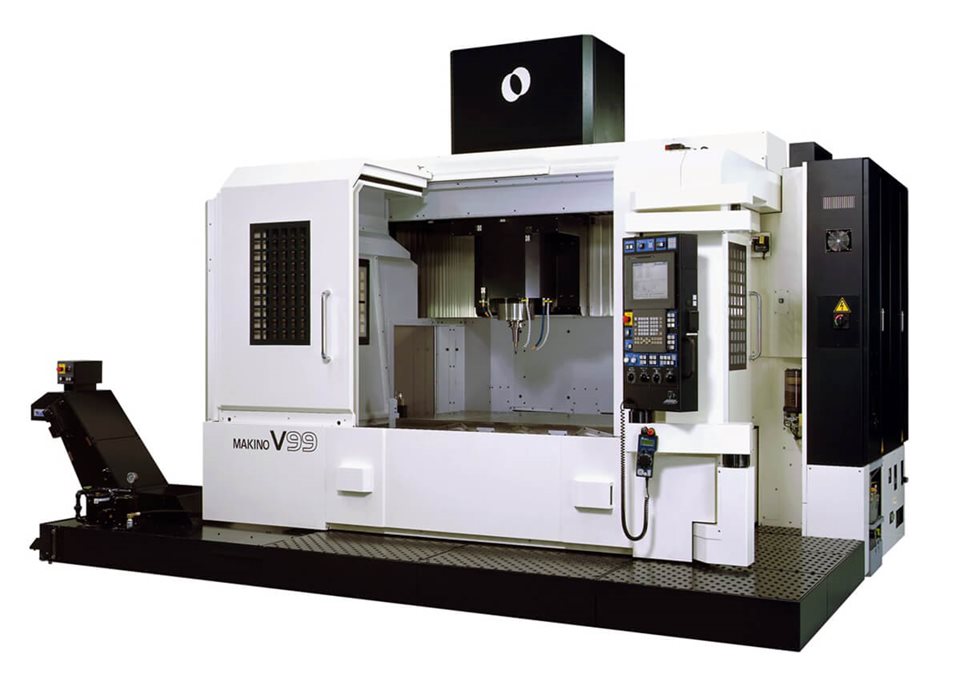

The Makino V99 (50 Taper) is a vertical 3-axis CNC machining center designed for high-precision machining of large and medium-sized die, mold, and precision parts. It features a core-cooled, under-race lubricated spindle and dual shield splash guards to improve thermal stability and accuracy. The machine offers an advanced servo control system (SGI.5), a configurable automatic tool changer, and a high-capacity spindle for efficient roughing and finishing of hardened steel cavities and cores.

Key Capabilities

• 3-axis vertical CNC machining suitable for die, mold, and precision part production
• CAT50-taper, 12,000 rpm spindle (optional HSK-A100, 18,000 rpm)
• Maximum workpiece capacity up to 1,800 x 1,000 x 650 mm, 4,000 kg
• Core-cooled spindle and temperature management for reduced thermal distortion
• Makino Professional 6 control with operator-friendly touchscreen interface
• Automatic tool changer with up to 60 tool positions; 145 mm tool diameter, 20 kg tool weight max
• Servo control technology for reduced cycle times on complex cavity and core geometries

Key Specifications
