Summary

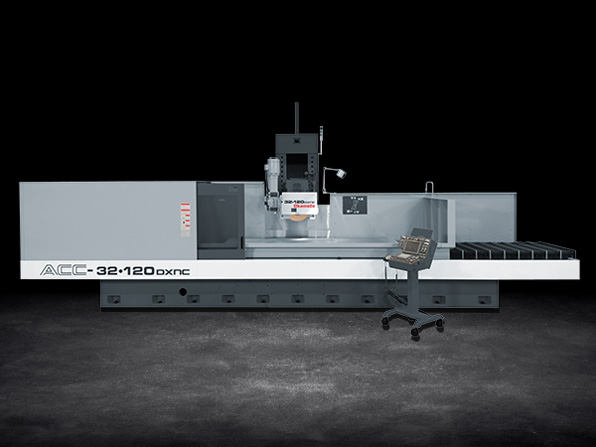

The ACC-DXNC Series is a CNC column type grinder engineered for high-precision two-axis simultaneous grinding of large components. It is designed to produce flat and formed surfaces through programmable flat and form grinding with fine input increment capability and multiple grinding pattern options. The machine features a rigid, fully supported table and servo-driven vertical feed for enhanced accuracy and heavy-duty operation with support for programmable dressing and automatic dress compensation.

Key Capabilities

• Two-axis simultaneous CNC grinding for large component surfaces and forms
• Programmable dressing and automatic dress compensation
• Servo-driven vertical feed with input increments as fine as 0.00001"
• Multiple selectable grinding patterns including plunge, bias feed, and step feed
• Rigid column and table design for enhanced load capacity and tracking accuracy
• Graphic-type conversational programming interface

Key Specifications

| Parameter | Value | Unit |

| Table Working Area (W x L) | 20" x 48" to 32" x 120" | inches |

| Max Distance Wheel to Table | 23.5 to 27.3 | inches |

| Grinding Wheel Size | 20 x 3 x 8 | inches |

| Grinding Wheel Spindle Power | 20 | hp |

| Machine Weight | 16,100 to 34,850 | lbs |
