Summary

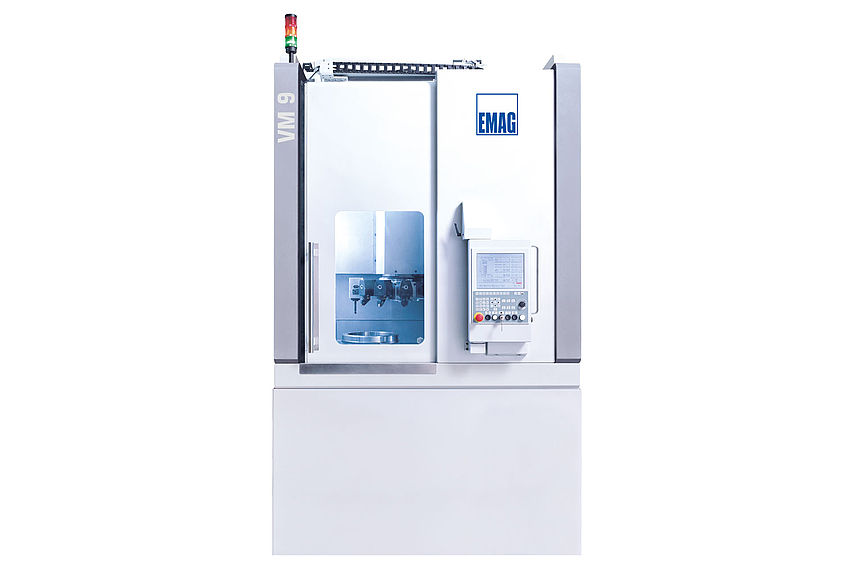

The Emag vm 9 vertical turning center lathe is a CNC machine engineered for turning, milling, and drilling of large chucked components. Its vertical configuration, integrated driven tool turret, and robust mineral cast column enable efficient machining of parts up to 400 mm in diameter. Key differentiators include high workpiece accessibility, integrated probing for process control, and suitability for individual or small batch production.

Key Capabilities

• Combines turning, milling, and drilling operations in a single setup
• Accommodates chucked components up to 400 mm diameter and 350 mm length
• Vertical spindle configuration with bottom workpiece spindle for ergonomic loading
• 8 or 12-position turret compatible with driven tools and various interface types (BMT or VDI)
• Integrated probe for in-process inspection
• Suitable for a range of part families and small production runs
