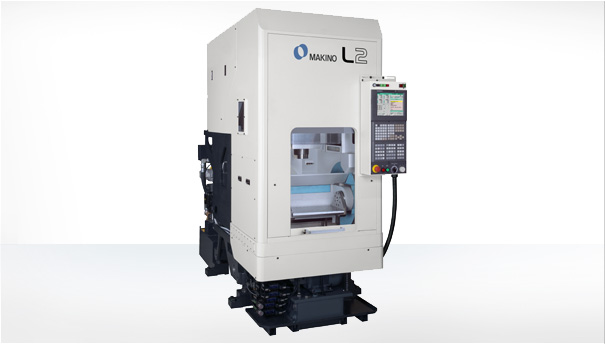

Makino L2 APC | Vertical 3-Axis Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino L2 APC is a vertical 3-axis machining center engineered for high-volume, small-part production. Its core function is precise milling, drilling, and tapping of small components, with a focus on compact footprint suitability and automation readiness. Key technical characteristics include a 16,000 RPM HSK-A50 spindle, rapid axis movements, and a modular design for integration with manual or automated workpiece handling.
Key Capabilities
- 3-axis simultaneous milling, drilling, and tapping
- HSK-A50 spindle with 16,000 RPM for high-speed machining
- Automated pallet changer (APC) configuration for continuous production
- Supports both manual part transfer and robotic integration
- Large tool magazine with up to 30 tools (optional)
- Through spindle coolant system up to 210 psi
- Equipped for rigid tapping and helical/cylindrical interpolation
- Programmable coolant and chip management systems
- Makino Professional L CNC control with advanced part program storage
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X Axis Travel | 400 | mm |
| Y Axis Travel | 300 | mm |
| Z Axis Travel | 300 | mm |
| Spindle Speed | 16,000 (option: 8,000) | RPM |
| Table Diameter | 120 | mm |
| Max Workpiece Size | 600 x 400 x 500 | mm |
| Max Payload | 300 | kg |
| Rapid Traverse Rate | 48 | m/min |
| ATC Tool Capacity | 15 (30 optional) | tools |
| Chip-to-Chip Time | 3.5–4.5 | sec |
| Max Tool Diameter | 30 / 80 (ALL/ADJ) | mm |
| Max Tool Weight | 5 | kg |
