Summary

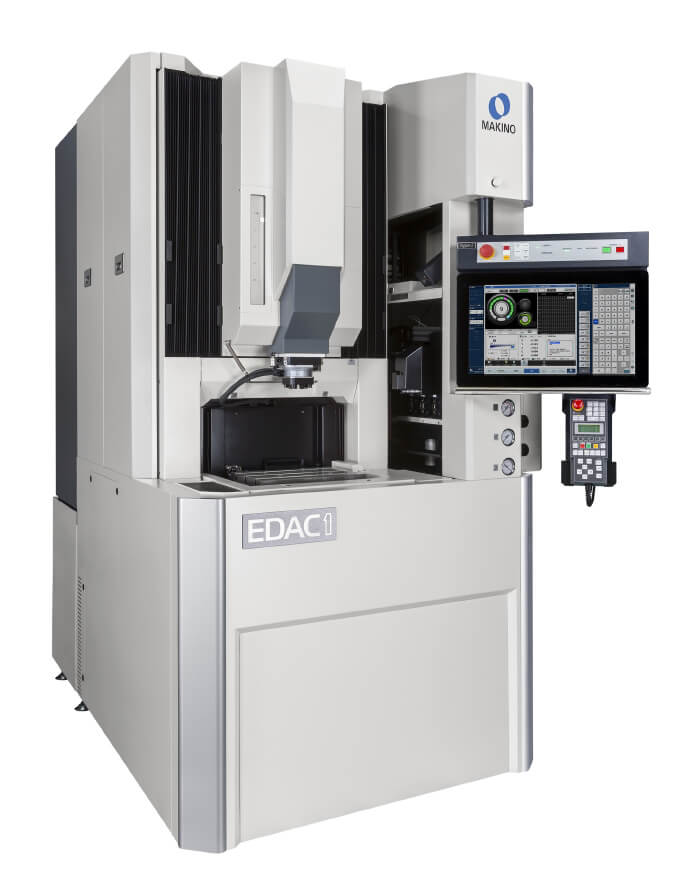

The Makino EDAC1 is a sinker electrical discharge machine (EDM) engineered for ultra-precision machining of small electronic and micromachining parts. It enables production of extremely fine features, with inside corner radii as small as 5 microns and surface finishes down to 1.3µin Ra. The platform includes features such as ±1 micron depth control, stationary worktable, three-sided rise-and-fall work tank, and advanced motion control systems tailored for high accuracy.

Key Capabilities

• Achieves inside corner radii as small as 5 microns
• Capable of producing surface finishes to 1.3µin Ra (0.25µmRz)
• ±1 micron depth control via Z-axis ball screw stabilizer
• Mechanical alignment tolerances of 2 microns over full axis stroke
• Optional Mi C-axis with ±2 arc seconds positioning index accuracy
• Stationary worktable and three-sided riser tank for accessible setup
• Equipped with Hyper-i control system for process monitoring and operation
