Summary

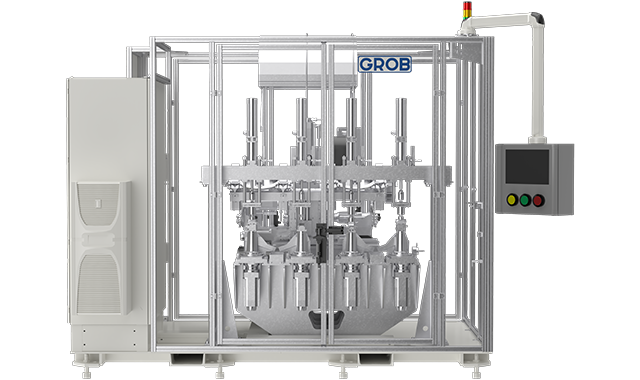

This machine performs linear winding of wire onto rotating coil bodies, specifically intended for the fabrication of axial flux segments or segmented stators. It supports orthocyclic winding at high speed, with multi-spindle capability and compatibility with a wide range of wire diameters. The system is fully programmable and designed for quick tooling changeover, suitable for electric motor manufacturing applications.

Key Capabilities

• Simultaneous linear winding operation with 1 to 4 working spindles
• High precision orthocyclic winding for precise coil formation
• Supports a wide range of wire diameters
• Integrated high performance wire tensioning unit
• Fully programmable process parameters
• Quick change tooling for reduced setup times

Key Specifications

| Parameter | Value | Unit |
