Kellenberger H2000 | CNC Jig Grinding MachineAvailable
Save
Share
Kellenberger
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

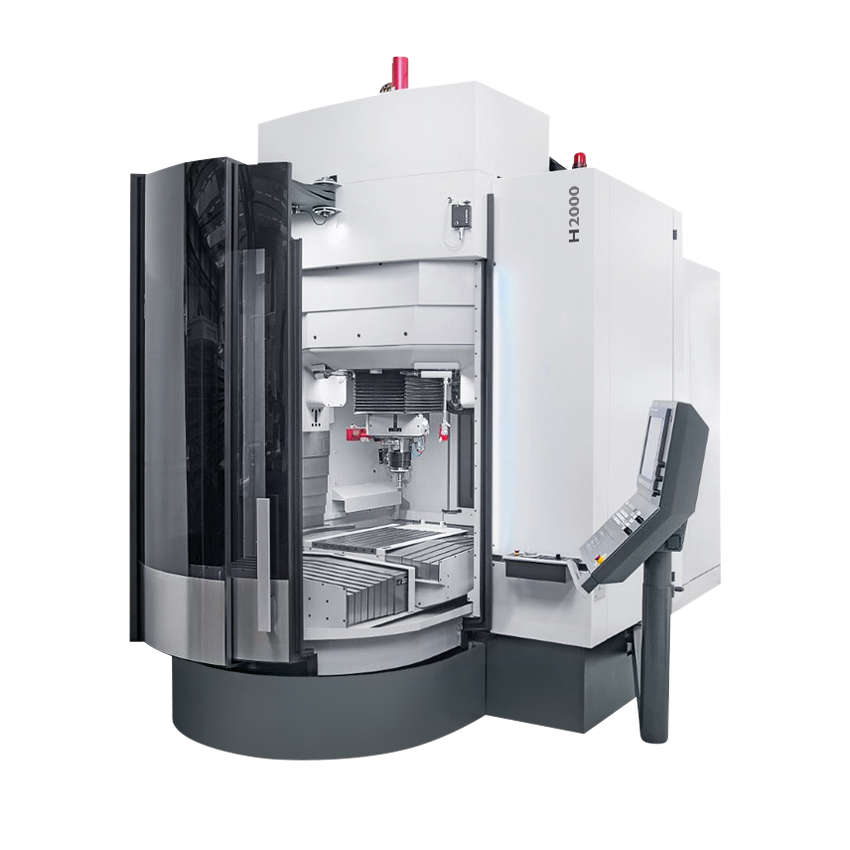

The Kellenberger H2000 is a CNC jig grinding machine designed for high-precision grinding of parts with stringent shape, dimensional, and positional tolerances, as well as complex geometries. It features a robust double-frame construction, multi-axis control (6-axis standard, optional 8-axis), and modular configurations for demanding jig grinding applications. Notable technical features include high-speed electric and air-driven grinding spindles, programmable planetary grinding motion, and integrated automation options for measurement and wheel calibration.
Key Capabilities
- Jig grinding of complex components with tight tolerances
- 6-axis configuration, expandable to 8 axes
- Programmable planetary grinding motion and taper grinding with Z-U axis interpolation
- Grinding spindle speeds up to 70,000 min-1 (electric) or 150,000 min-1 (air-driven turbine)
- Automated workpiece measurement with probe and multi-sensor system
- Automated dressing for ceramic and resin-bonded CBN grinding wheels
- FANUC 30i-B CNC control with 15-inch touch display
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X, Y adjustment range | 550 x 300 | mm |
| Vertical adjustment (W) | 450 | mm |
| Table usable area | 650 x 400 | mm |
| Max. workpiece load | 300 | kg |
| Grinding spindle speed (electric) | 8,000–70,000 | min-1 |
| Grinding spindle speed (air turbine) | up to 150,000 | min-1 |
| Grinding diameter (planetary, disc Ø40 mm) | 144 / 360 | mm |
| Grinding diameter (planetary, disc Ø100 mm) | 194 / 360 | mm |
| C-axis planetary speed | 1–350 | min-1 |
| Z-stroke length | 0.1–170 | mm |
| Control system | Fanuc 30i-B | — |
