Okuma MULTUS B200II | Multitasking CNC Turn-Mill Center with B-axisAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

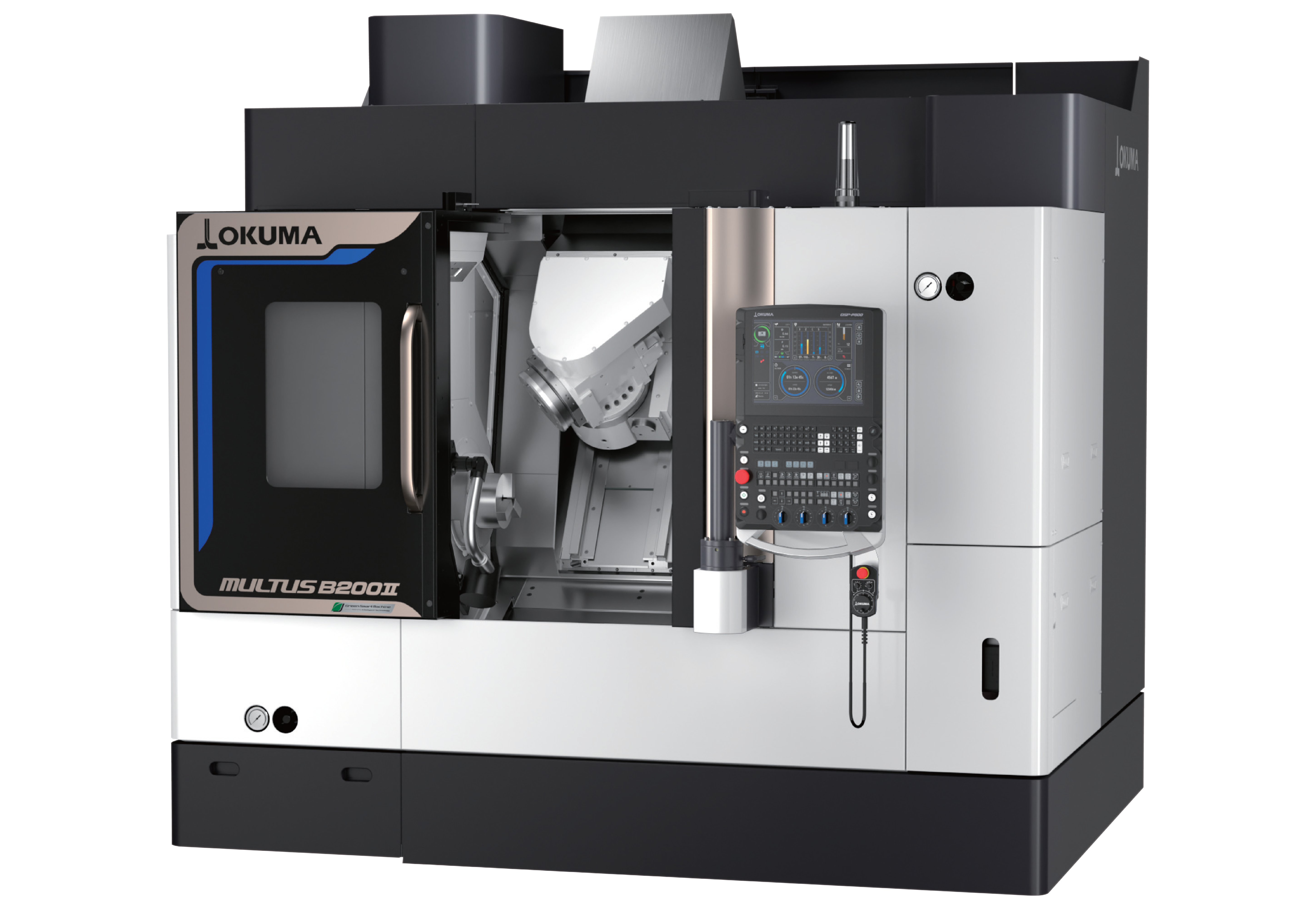

The Okuma MULTUS B200II is a multitasking CNC turn-mill center designed for combined turning and multi-axis milling operations on a single platform. Its B-axis head enables both lathe and 5-axis milling capabilities, supporting process-intensive part production with fewer setups. Key differentiators include a 225° B-axis, full-contouring C-axis main spindle, compound-motion Y-axis turret, and CAPTO-C6 tooling.
Key Capabilities
- Integrated turning and multi-axis milling in one machine
- B-axis head for 225° angular positioning with 0.001-degree resolution
- Main spindle supports full-contour C-axis machining
- Compound-motion Y-axis for flexible milling and drilling
- Dual function H1 spindle head with optional 20,000 rpm capability
- Automatic tool changer with up to 60 tools
- Sub-spindle available for part hand-off between spindles
- Thermo-Friendly Construction for sustained accuracy
- OSP-P300 CNC control with single-mode operation and advanced graphics
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Turning Diameter | Ø23.62 | in |
| Max Turning Diameter | Ø600 | mm |
| Spindle Speed Range | 50 ~ 6,000 [45~5,000] | min⁻¹ |
| Milling Spindle Power (20min/cont) | PREX 15/10 | hp |
| Rapid Traverse (X, Z / Y) | 1,575 / 1,024 | ipm |
| Rapid Traverse (X, Z / Y) | 40 / 26 | m/min |
| Turret B-Axis Resolution | 0.001 | degree |
| Spindle Nose Type | Ø140 flat [JIS A2-6] |
