Summary

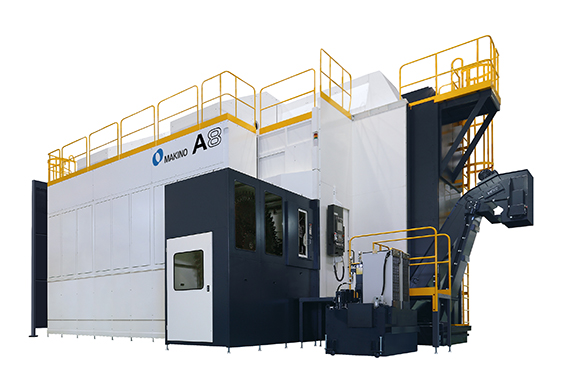

The Makino MAG A8 is a 5-axis horizontal machining center designed for high-productivity machining of large, complex aluminum monolithic parts, particularly in aerospace applications. It integrates a 33,000 rpm, 130 kW spindle with rapid axis movements for high metal-removal rates and precision contouring, supporting extended periods of unattended operation through automatic pallet transfer and storage integration. The MAG A8 accommodates large workpieces with extensive axis travels and pallet capacity.

Key Capabilities

• Simultaneous 5-axis machining with rotary A and C axes
• High-speed spindle operation up to 33,000 rpm for efficient aluminum cutting
• Large workpiece handling (up to 8,000 mm x 2,200 mm x 500 mm, 5,000 kg payload)
• Automatic pallet transfer and storage system compatibility for unattended operation
• Rapid traverse and cutting feedrate up to 65,000 mm/min
• Tool changer with 120-tool capacity
• Designed for monolithic part production in aerospace

Key Specifications
