Summary

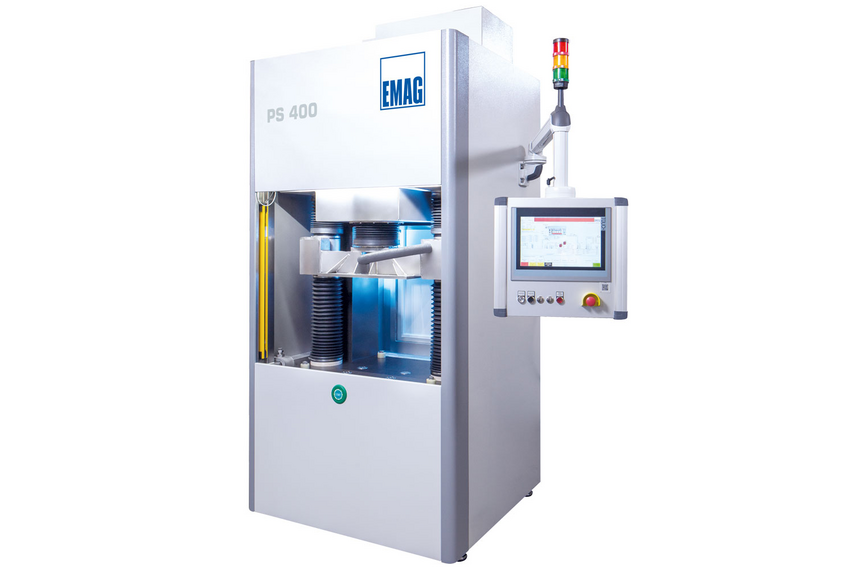

The Emag ps is a modular machine for precision electro-chemical machining (PECM) processes such as deburring, internal profiling, and sinking on a variety of components. It supports both ECM and PECM technologies, offering interchangeable modules for sinking, oscillation, or deburring, and configurable generator capacities for diverse application needs. Distinctive features include modular expansion, pulse technology up to 8,000 A, and a vibration-damping MINERALIT base for improved machining stability.

Key Capabilities

• Suitable for ECM deburring, PECM sinking, and internal profiling
• Supports both direct current and pulse ECM/PECM technology
• Interchangeable modules: sinking, oscillation, or deburring
• Modular machine structure for scalable automation and process integration
• Individual and selectable cathode modules with monitoring
• S7-1500 controller with touch panel interface
• Conductivity, temperature, pH monitoring and control
• Oscillation capability up to 100 Hz with 0–0.6 mm stroke
• Automation interfaces supporting robots or gantry loaders
• Base constructed from MINERALIT polymer concrete for high vibration resistance

Key Specifications
