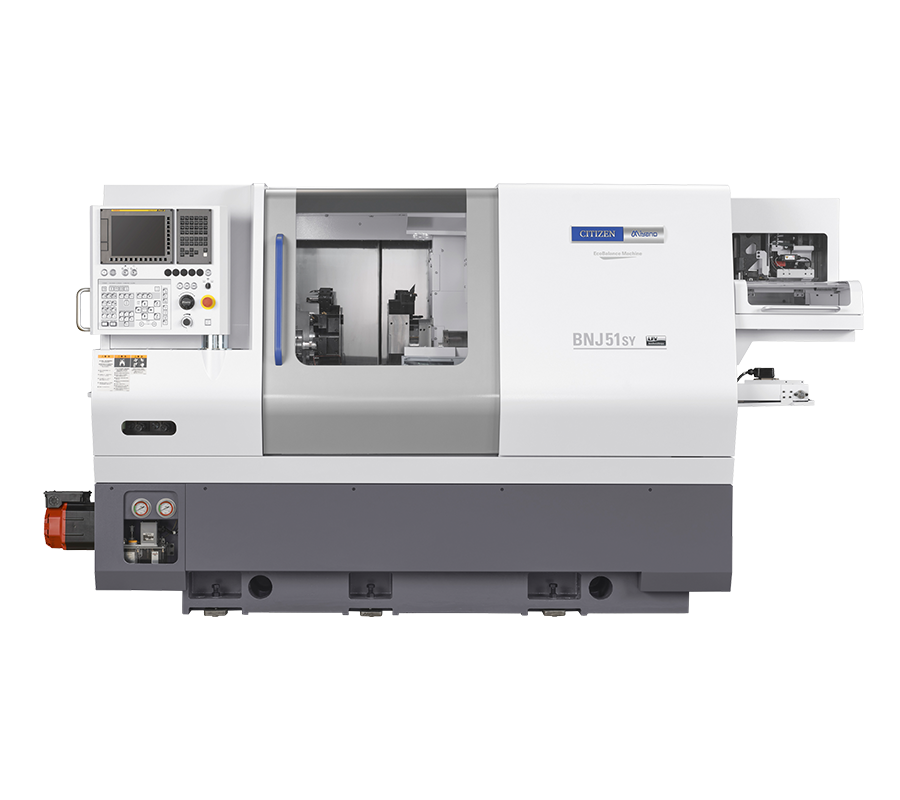

Citizen Machinery Miyano BNJ-51SY7 | Twin-Spindle, Twin-Turret CNC Turning CenterAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Citizen Machinery Miyano BNJ-51SY7 is a numerically controlled turning center designed for simultaneous machining on two spindles with two turrets, delivering efficient multi-axis metal cutting. It is engineered for complex part production, featuring chip management with LFV technology and energy-saving attributes. The compact footprint, dual-spindle layout, and advanced tooling capacity distinguish it within production environments requiring flexible, high-throughput turning operations.
Key Capabilities

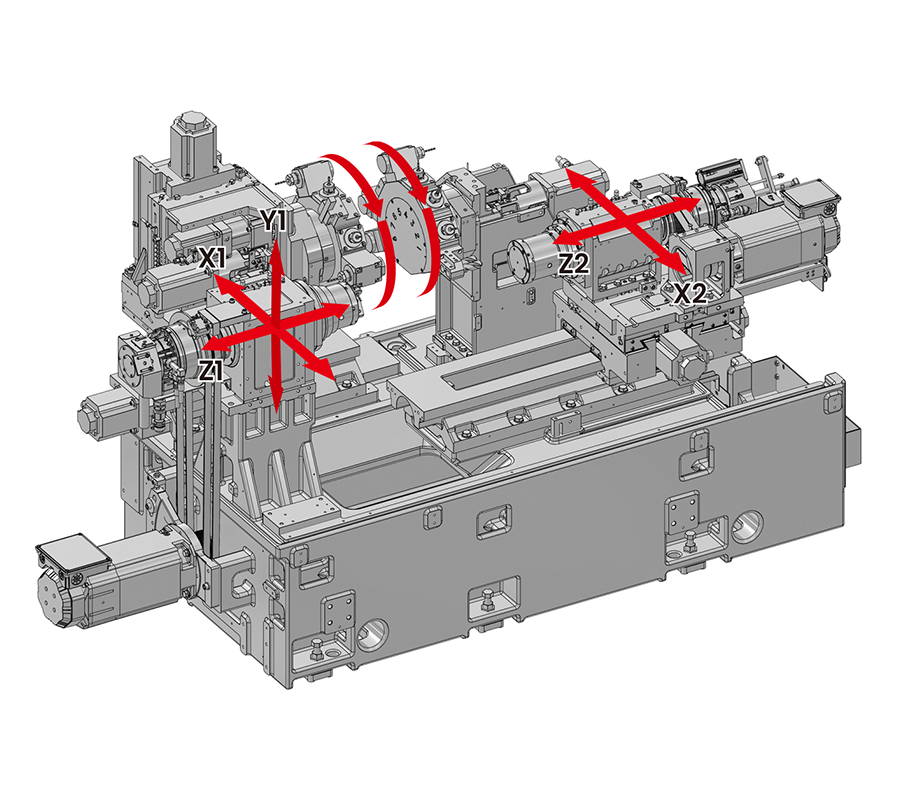

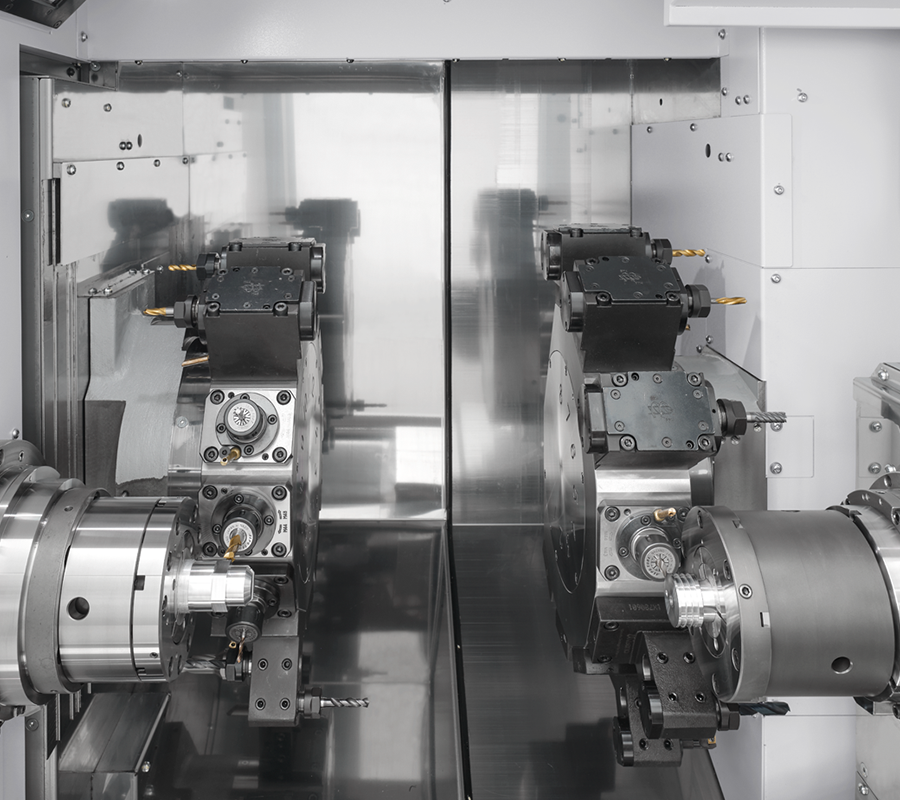

- Simultaneous machining on two spindles with two turrets
- LFV (Low Frequency Vibration) technology for chip control

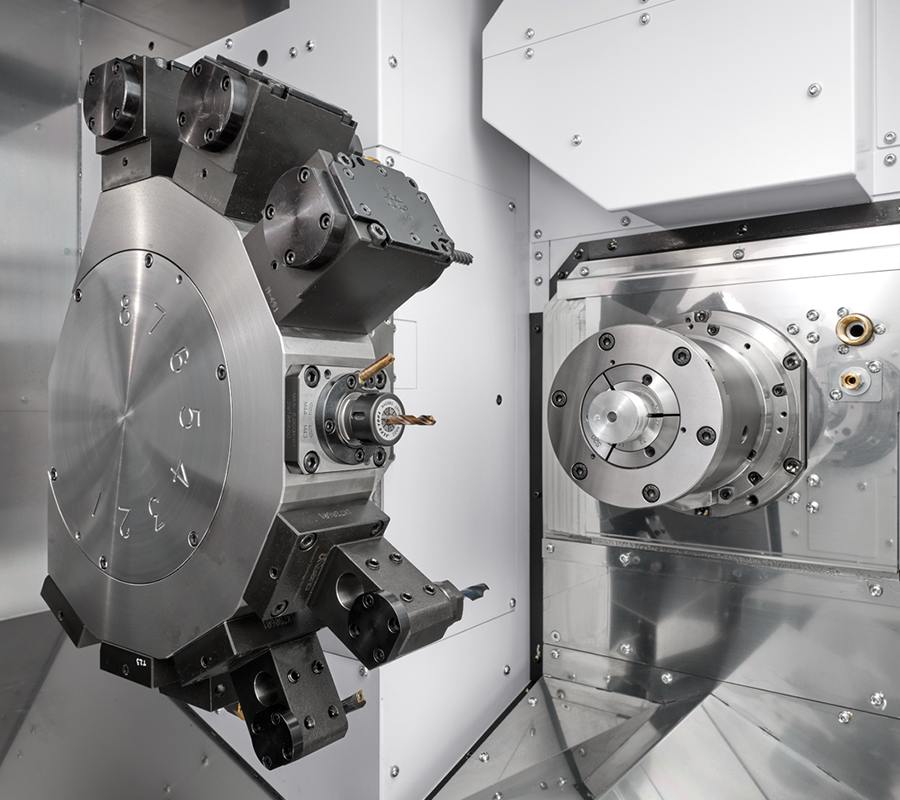

- Both turrets support live tools for complex milling, drilling, and tapping

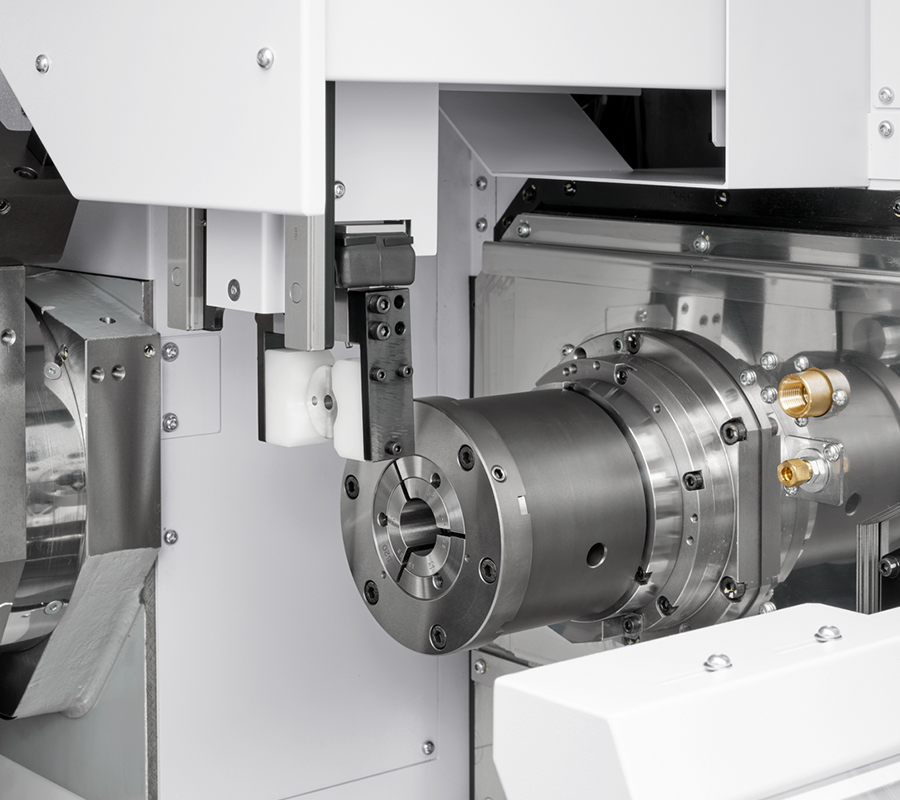

- Compatible with a range of collet and power chuck systems
- Designed with energy and air consumption reduction technologies
- Visualization of CO₂ emissions for process monitoring
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max machining diameter (SP1/SP2) | 51 | mm |
| Max spindle speed (SP1/SP2) | 5,000 | min⁻¹ |
| Distance between spindle end faces | 825 | mm |
| Max revolving tool speed (TR1/TR2) | 6,000 | min⁻¹ |
| Max drilling diameter (TR1/TR2) | 13 | mm |
| Max tapping diameter (TR1/TR2) | M12×1.75 (S45C) | - |
| Turret tool station count (TR1/TR2) | 12 / 8 | stations |
| Standard workpiece collection length | 120 | mm |
| Machine body dimensions | 2,881 × 1,578 | mm |
| Machine height | 1,775 | mm |
| Machine weight | 5,550 | kg |
