Summary

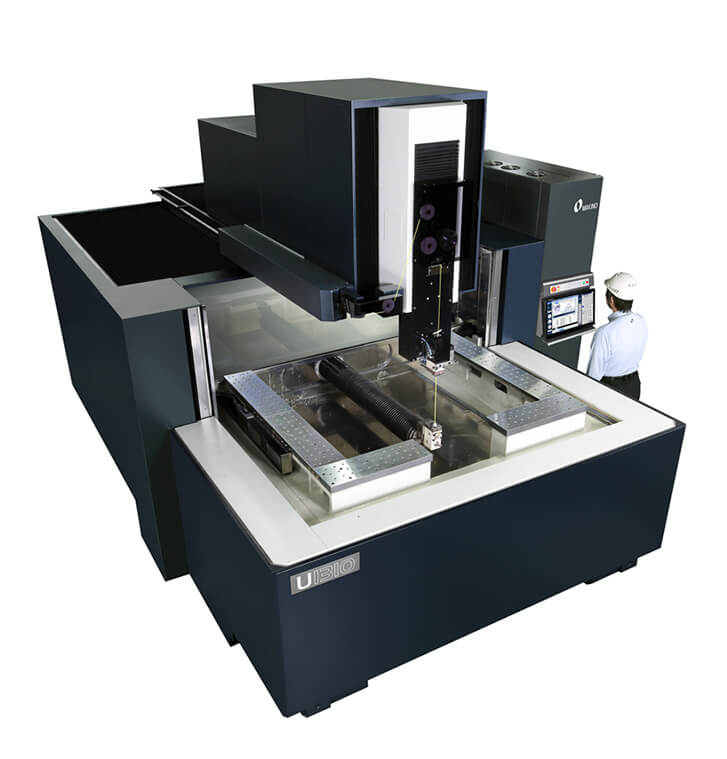

The Makino U1310 is a large-format wire electrical discharge machining (EDM) system designed for high-precision cutting and shaping of complex parts. Its core function is wire-based electrical material removal, delivering uniform high accuracy across a large working envelope and supporting workpieces up to 6,000 kg. Notable technical features include a stationary work table, programmable 3-sided drop tank for enhanced accessibility, and the Hyper-i control system with a large touch-screen interface.

Key Capabilities

• Precision wire EDM cutting with positioning accuracy of +/- 3μm over full stroke
• Supports heavy and large workpieces up to 2,000 x 1,600 mm and 6,000 kg
• Automatic wire threading with Split Precision V-Guide system at full Z-Stroke height
• Programmable 3-sided drop tank for unobstructed loading/unloading and integration with automation
• Hyper-i control system featuring multi-touch 24-inch HD display and advanced operator tools
• Integrated dielectric reservoir within machine base for improved thermal stability and reduced footprint
• Multiple available wire diameters (0.200, 0.250, 0.300 mm)
