Summary

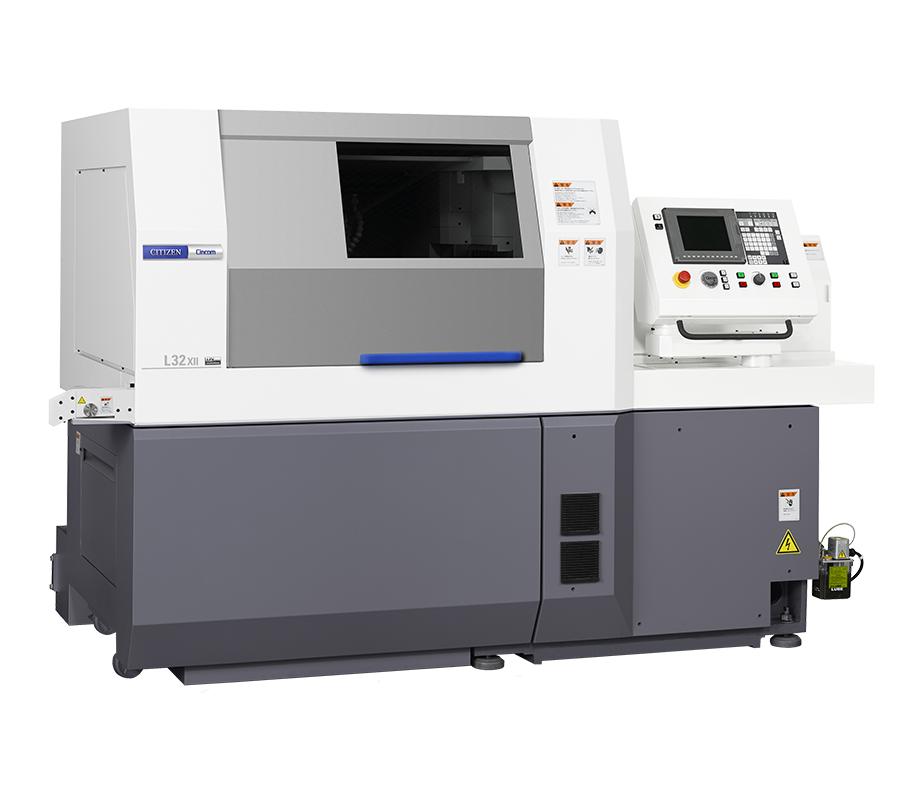

The Cincom L32 IX is a Swiss-type CNC automatic lathe designed for precision turning and complex multi-axis machining of small-diameter components. It supports a wide range of tool configurations, including optional B-axis tooling with automatic tool changer capabilities, enabling intricate operations such as those required in medical component manufacturing. The machine allows easy switching between guide bushing and non-guide bushing modes to adapt to different part requirements and cost constraints.

Key Capabilities

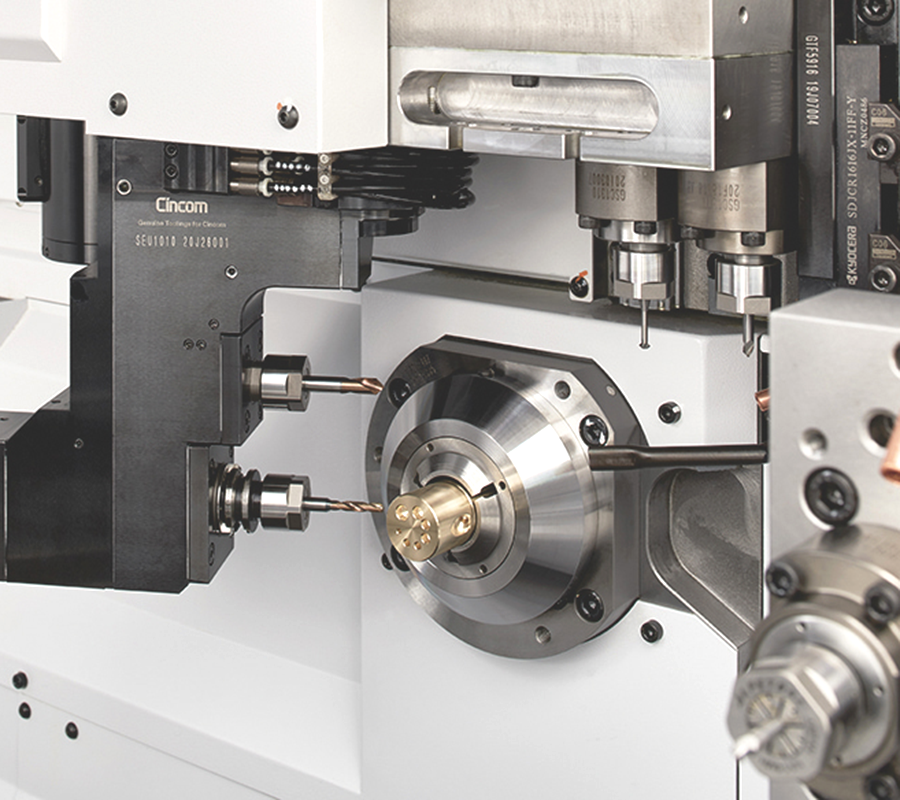

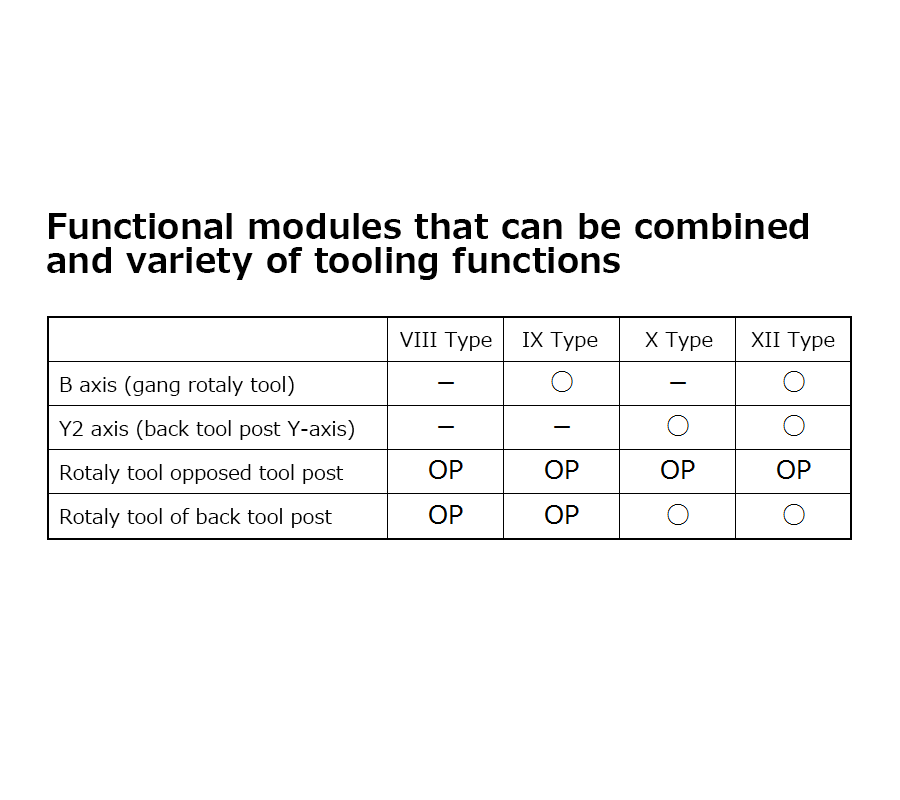

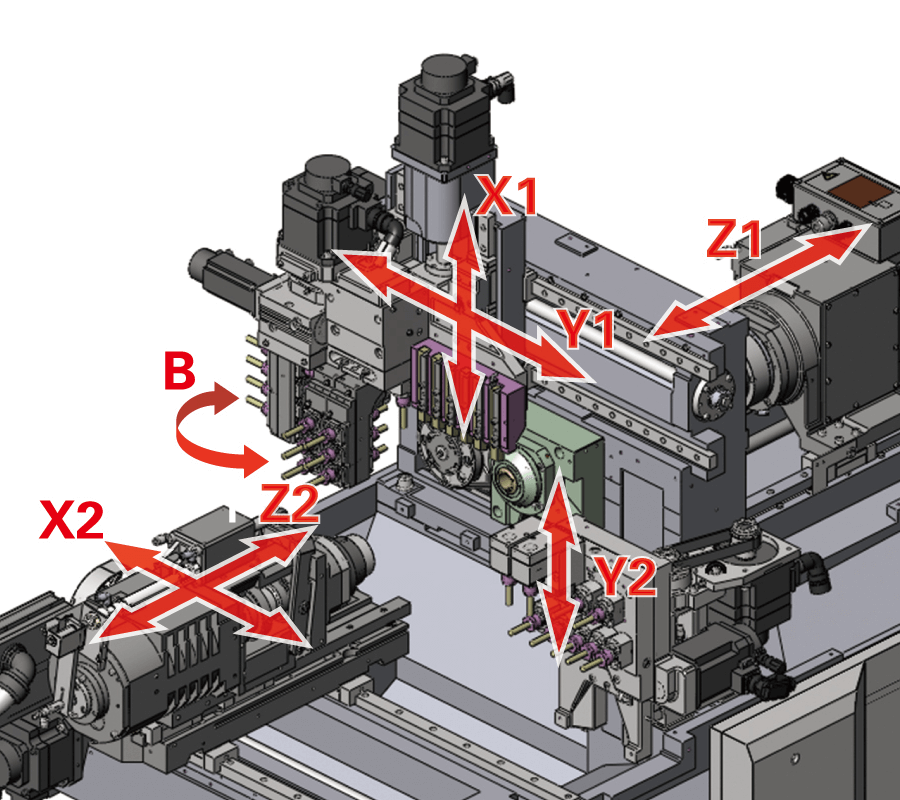

• Multi-axis machining with gang rotary turret and optional B-axis tooling
• Suitable for both simple and highly complex part geometries
• Automatic tool changer option on B-axis for enhanced tool variety and flexible setups

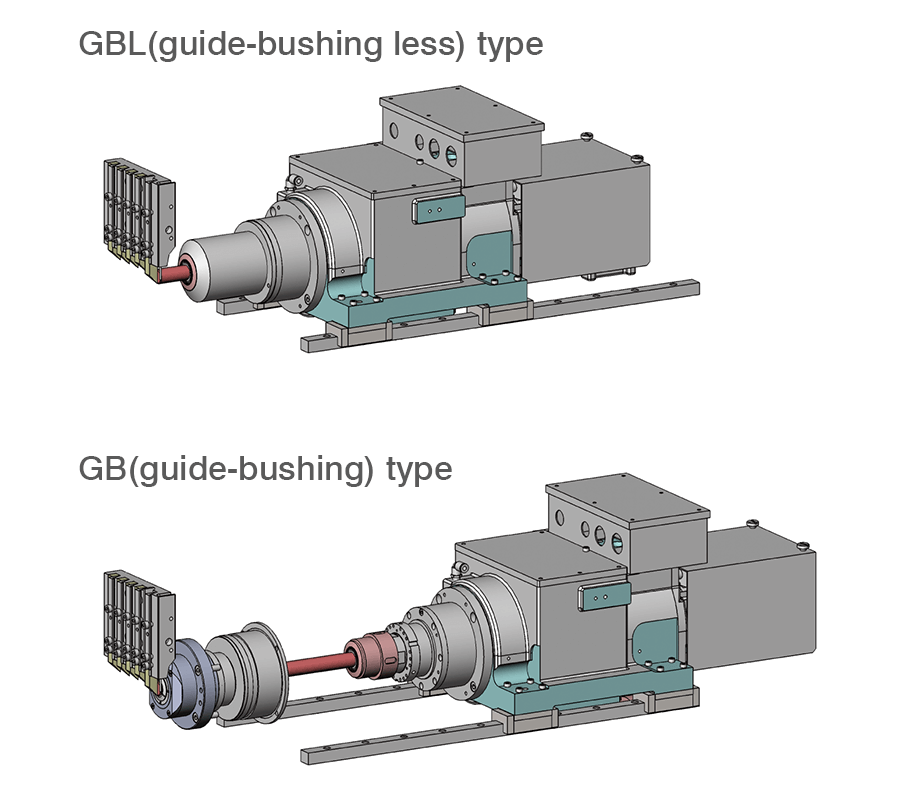

• Converts between guide bushing and bushing-less operation for process optimization
• Supports front and back machining with sub-spindle
• Accommodates up to 36 tools for diversified machining operations

Key Specifications

| Parameter | Value | Unit |

| Maximum machining diameter | 32 | mm |

| Maximum machining length (GB machine) | 320 | mm/chuck |

| Maximum spindle speed | 8,000 | min-1 |

| Maximum drilling diameter (main spindle) | 12 | mm |

| Number of tools (max) | 36 | |

| Tool size (turning tool) | 16 | mm Sq. |

| Rapid feed rate (X1, X2, Y1, Z1, Z2 axes) | 32 | m/min |

| Spindle through-hole diameter | 39 | mm |

| Machine weight | 2,900 | kg |
