Summary

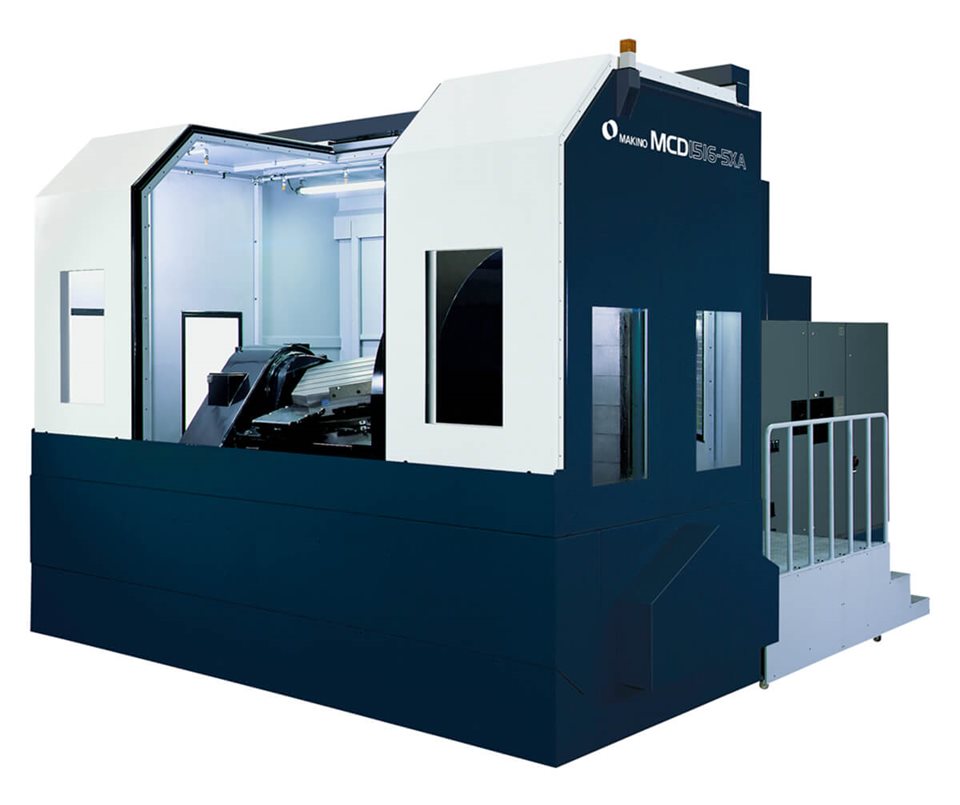

The Makino MCD1516 5XA is a 5-axis horizontal machining center designed for multiface indexing and simultaneous 5-axis machining of large die and mold workpieces. It is engineered for high-speed, high-accuracy cutting with a 6,000-rpm spindle, scale feedback to 0.1 µm, and advanced thermal stability options. This platform supports workpieces up to 2 meters in diameter and 2.3 tons, enabling continuous, precise machining across complex surfaces.

Key Capabilities

• Simultaneous 5-axis and multiface machining for large and complex parts
• 0.1 µm scale feedback for enhanced positional accuracy
• A-axis and B-axis indexing with 0.0001-degree resolution
• Thermal management features to support long-duration machining accuracy
• Standard and extended automatic tool changer options
