Summary

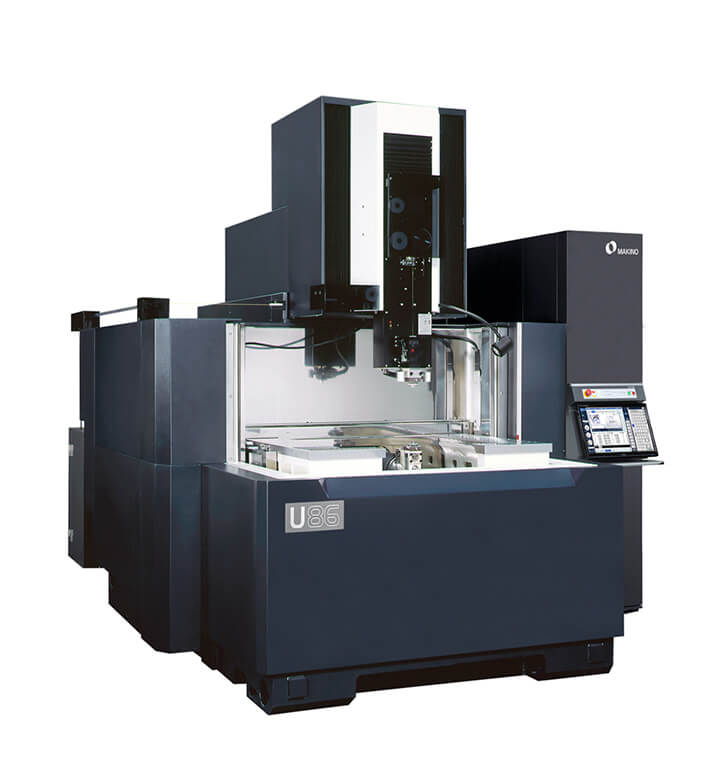

The Makino U86 is a CNC wire EDM machine designed for precision electrical discharge machining of large workpieces. It is engineered to deliver precise wire cutting using a stationary work table and advanced control system, supporting parts up to 1,400mm x 987mm and 3,000kg. Notable features include a 3-sided rise and fall work tank for operator access and the H.E.A.T. system for enhanced machining speed and accuracy in challenging flushing conditions.

Key Capabilities

• Precision wire cutting via electrical discharge
• Accommodates workpieces up to 1,400 x 987 mm and 3,000 kg
• 3-sided rise & fall work tank for improved part access and ergonomics
• Stationary work table to minimize accuracy loss from weight shifts
• Hyper i CNC control with 24" touchscreen and interactive operator tools
• H.E.A.T. system for improved speed under poor flushing conditions
• Split-V Wire Guide system for extended guide lifespan and reliable wire threading at any Z-stroke position
