Summary

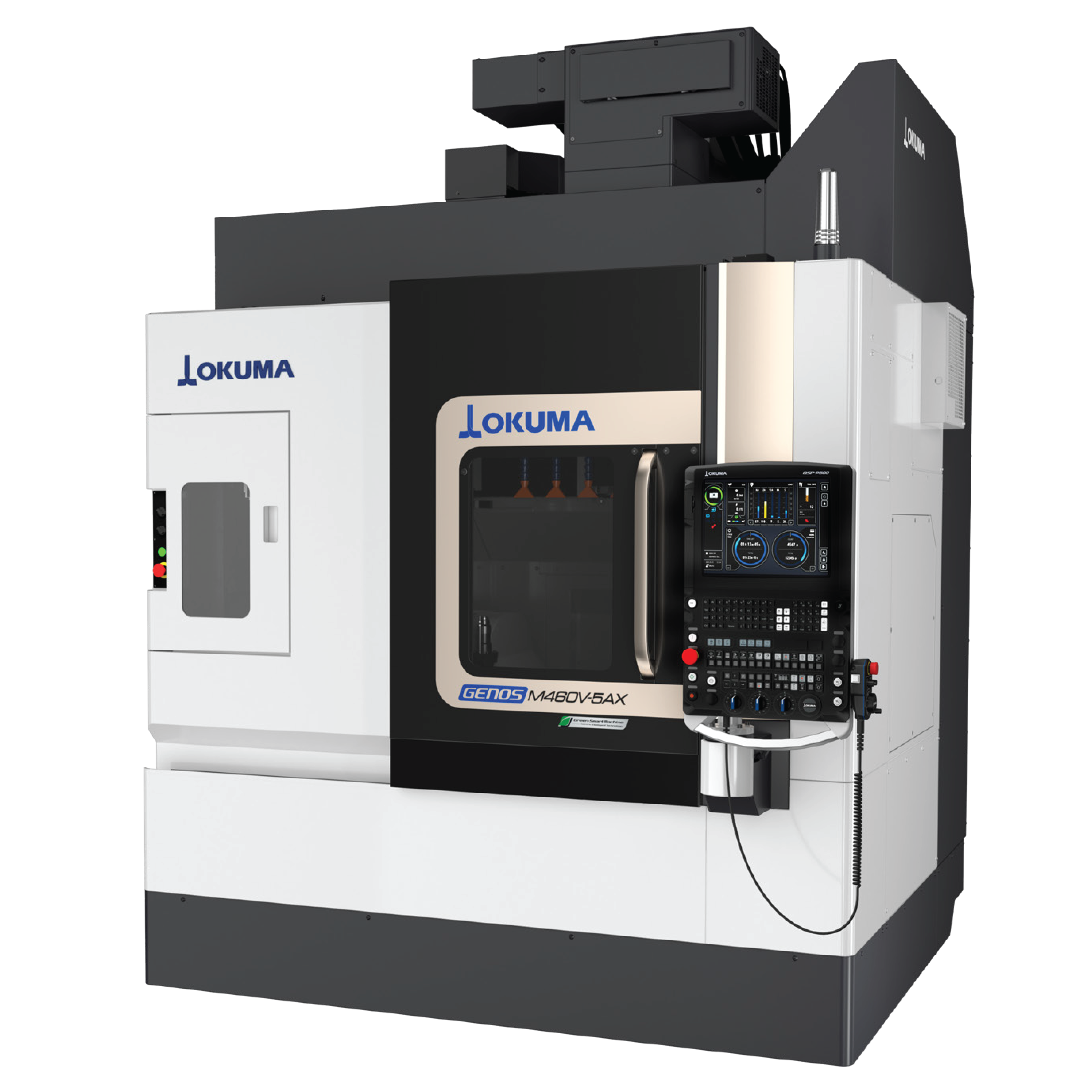

The GENOS M460V-5AX is a 5-axis trunnion-style vertical machining center designed for manufacturing high-precision parts with simultaneous multi-axis control. Its double-column structure, hypoid gear-driven trunnion, and thermal stability enable robust performance across a wide range of materials. This system integrates a compact footprint with a 48-tool magazine and advanced chip management for production environments demanding throughput and flexibility.

Key Capabilities

• 5-axis simultaneous machining via trunnion table for complex geometries
• Rigid double-column structure for increased stability
• Thermal compensation for dimensional control
• 48-tool automatic tool changer for extended production runs
• Dual coil chip augers for enhanced chip evacuation
• Rapid traverse speeds in all linear and rotary axes

Key Specifications

| Parameter | Value | Unit |

| Max Machining Volume (X x Y x Z) | 30.00 x 18.11 x 18.11 | in |

| Table Size (Diameter) | 15.75 | in |

| Spindle Speed (max) | 15,000 | min⁻¹ |

| Spindle Motor Power | 30/25 | hp |

| Rapid Traverse (X-Y) | 1,575 | ipm |

| Rapid Traverse (Z) | 1,260 | ipm |

| Rapid Traverse (A) | 14,400 | deg/min |

| Rapid Traverse (C) | 18,000 | deg/min |

| Magazine Capacity | 48 | |
