Summary

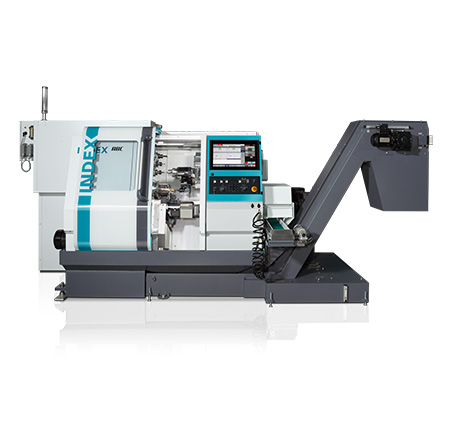

The INDEX ABC is a CNC multi-turret turning center engineered for high-efficiency bar turning, featuring simultaneous machining with up to three tools. It delivers surface milling, off-center drilling, and both front and rear-end machining operations with live tooling on all stations, supporting complex part production with reduced cycle times.

Key Capabilities

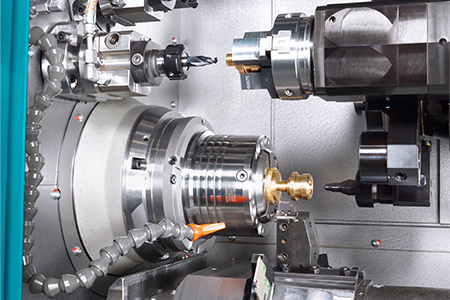

• Simultaneous machining with up to 3 tools
• Live tooling available on all tool holders
• Y-axis functionality for milling and off-center drilling
• Rear-end machining with up to 5 back working stations
• Rapid tool change enabled by multiple turret stations
• Spindle clearance up to 65 mm bar capacity

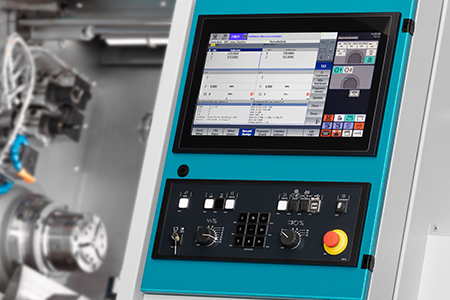

• Supports both Siemens S840D sl and Fanuc 31i-B controls with integrated operating system

Key Specifications
