Summary

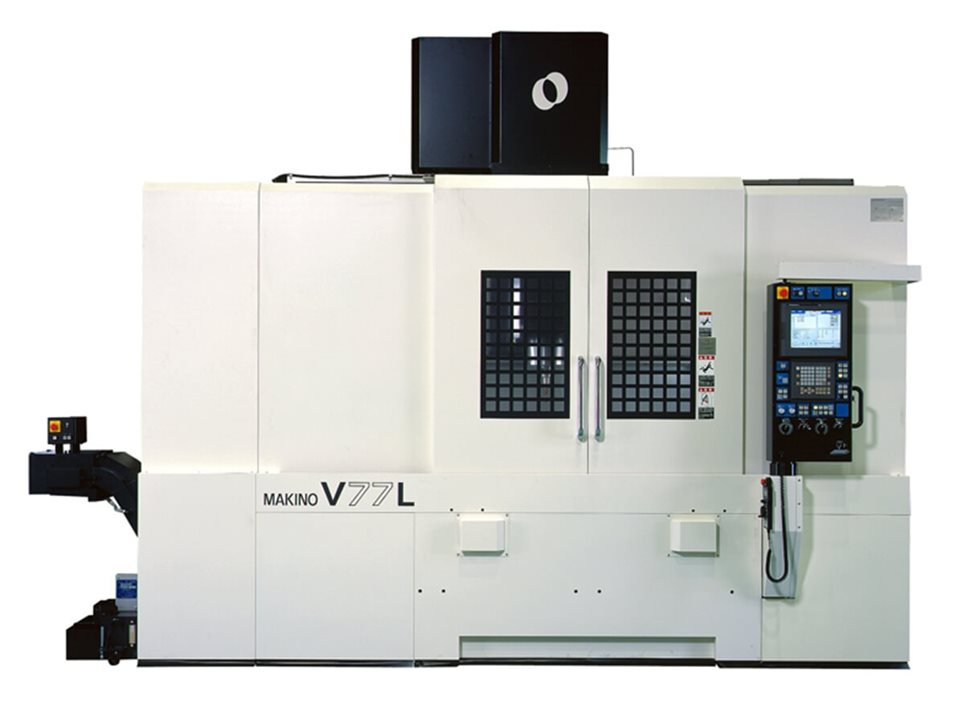

The Makino V77L (50 Taper) is a vertical 3-axis machining center engineered for high-precision cutting and finishing of large and medium-sized dies, molds, and precision parts. It features a core-cooled, under-race spindle lubrication system designed to minimize thermal distortion, and incorporates advanced servo control for reduced machining cycle times. Its configuration supports both high rpm spindles and expanded tool magazine options suitable for demanding die/mold manufacturing.

Key Capabilities

• Three-axis vertical milling with CAT50-taper spindle
• Core-cooled, under-race spindle lubrication for enhanced thermal stability
• Configurable spindle speed up to 20,000 rpm and optional HSK-A100 interface
• Expandable automatic tool changer with up to 60 tool positions
• Advanced Super Geometric Intelligence (SGI.5) servo control for cycle time reduction
• Large work envelope supporting parts up to 1,650 x 700 x 550 mm and 2,500 kg
• Makino Professional 6 control with graphical user interface
