Summary

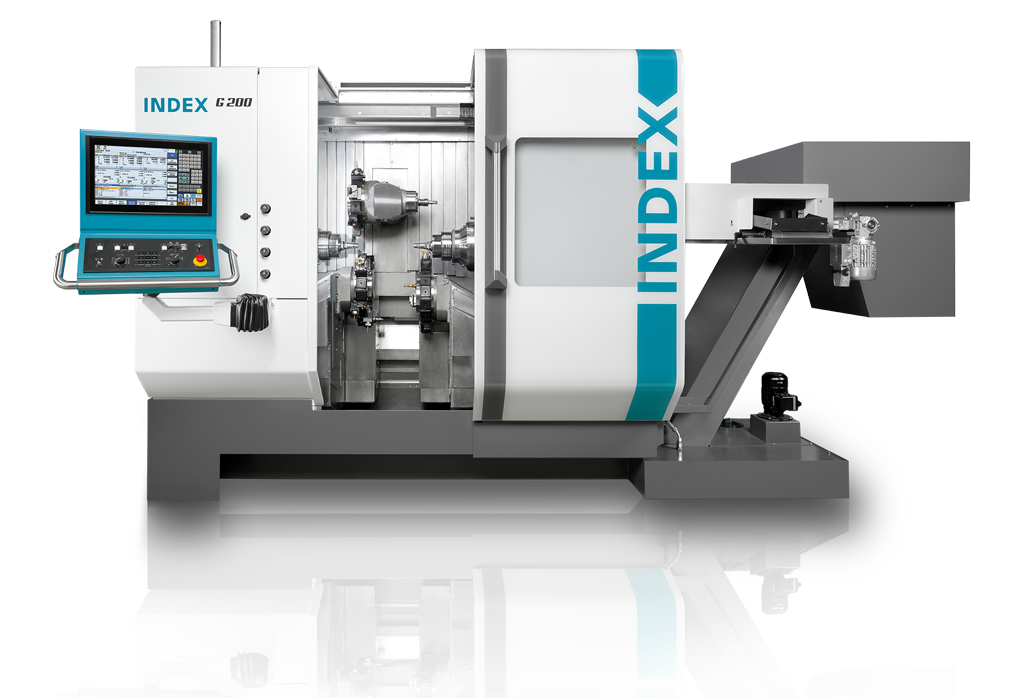

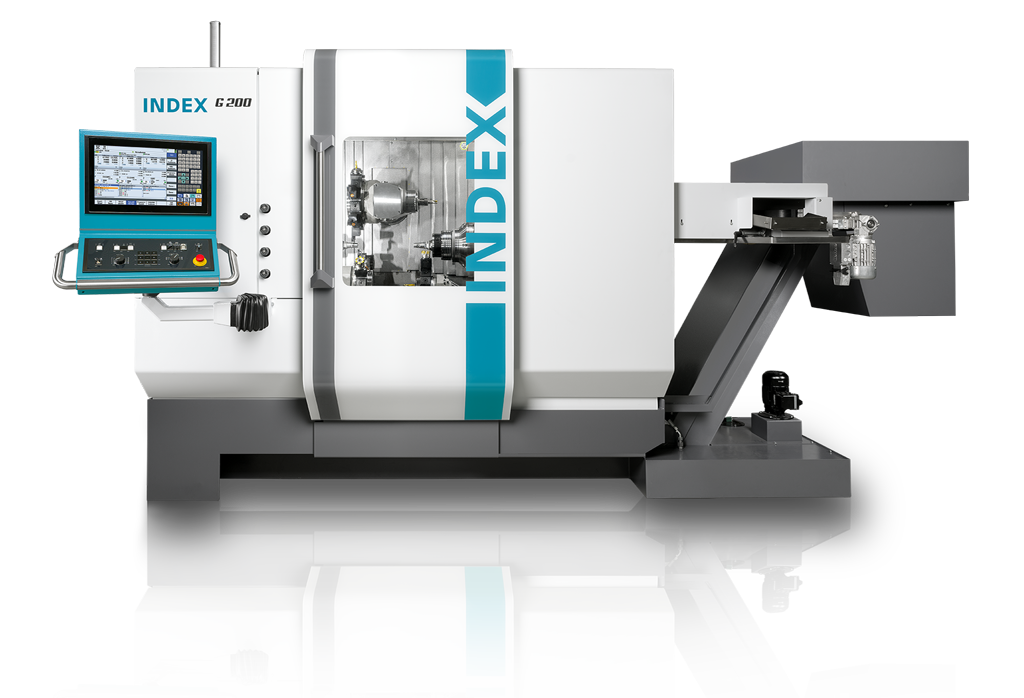

The INDEX G200.2 is a multi-channel CNC turn-mill center designed for simultaneous turning and milling of complex components using up to three tool carriers with Y-axis capability on both main and counter spindles. It enables economic complete machining of bar or chuck parts with up to four tools working simultaneously, supported by a dynamic milling spindle and configurable tool carriers. Advanced motion systems, high spindle power, and flexible part handling options distinguish this machine for demanding multi-process applications.

Key Capabilities

• Simultaneous machining with up to four tools on main and counter spindles

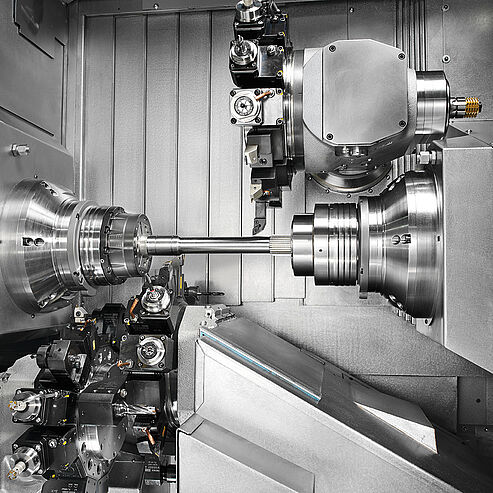

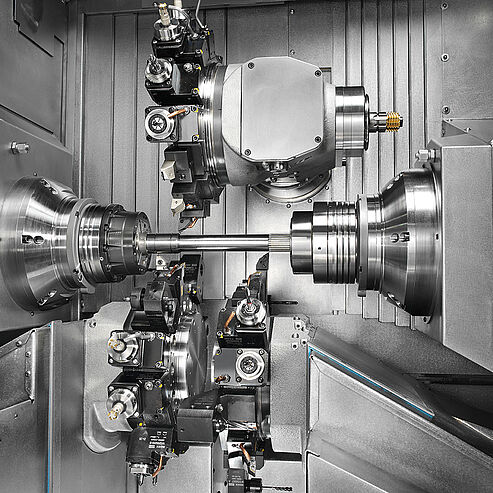

• Three independently usable tool carriers, each with a Y-axis
• 360° B-axis milling spindle supporting sophisticated drilling and milling without live tool holders
• Maximum turning length up to 660 mm
• Handles both bar stock and chuck parts
• Tailstock or turret steady with 10 to 66 mm clamping range (option)
• Gantry-type removal unit for workpieces up to 200 mm and 5 kg
• Siemens S840D sl control system with 18.5" multi-touch screen
